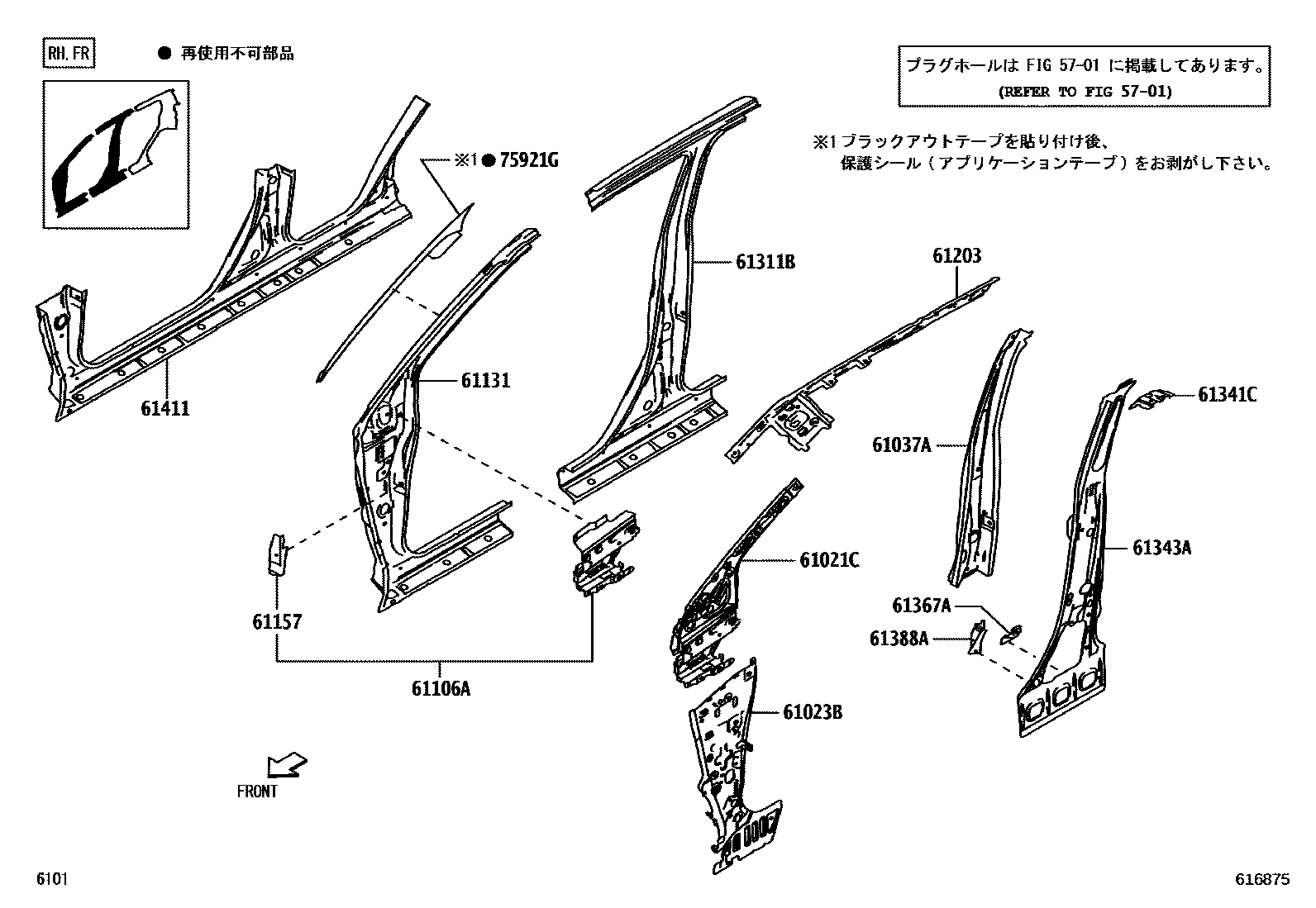

SIDE MEMBER
5701HOLE PLUG
61021CPILLAR SUB-ASSY, FRONT BODY, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61157BRACKET, NO.2 SIDE PANEL
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61341CPILLAR, CENTER BODY, INNER UPPER RH
61343APILLAR, CENTER BODY, INNER RH
61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH
61388APLATE, CENTER BODY PILLAR END, RH
61411PANEL, ROCKER, OUTER RH
75921GTAPE, BLACK OUT, NO.1 RH
TUYAKESI BLACK DUMMYCOLOR,B79 ,B80 ,G57 ,R67 ,R71 ,S28 ,W24; TUYAKESI BLACK DUMMYCOLOR,B79 ,R40 ,R59 ,R67 ,S28 ,T22 ,W24; TUYAKESI BLACK DUMMYCOLOR,B79 ,R40 ,W24
15 parts on this diagram · 5 diagrams in section
