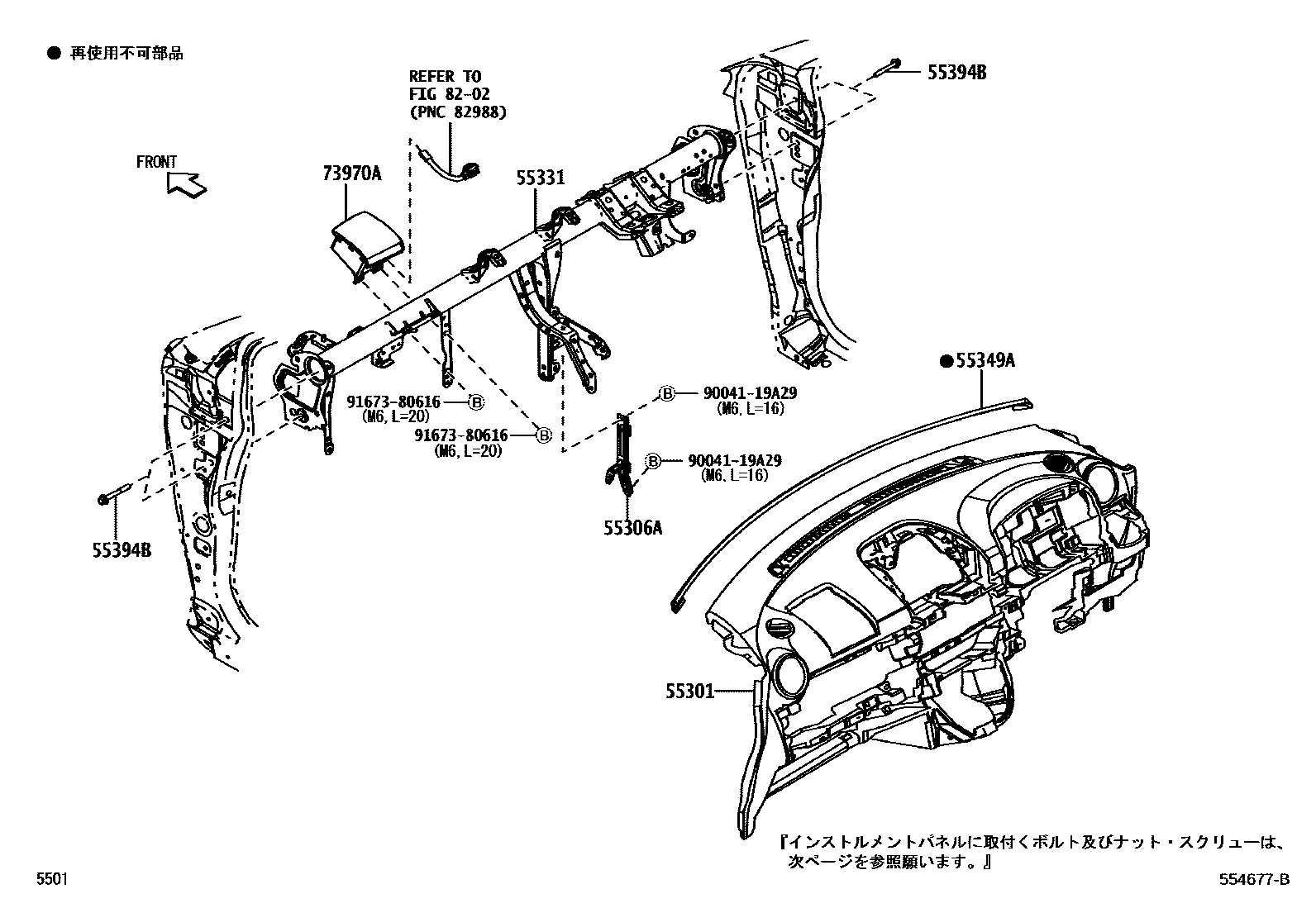

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������ ������� 0002 1����� ���� ���� 0003 1���������� ��������������� 0004 1����� ������� 0005 1���������� ��������

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B2530-B0iLA250,260..FG,FGT; LA250,260..FX201710-202306

DK.GRAY,TRIM3#,4#; DK.GRAY,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-B2160iLA250,260..CG,CGT,CX,S201609-202001

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B2430iLA250,260201609-201710

main55305-B2540iLA250,260201710-201908

main55305-B2541iLA250,260201909-202306

55349ACUSHION, INSTRUMENT PANEL

main55349-B1020iLA250,260..CG,CGT,CX,S201609-202001

55394BBOLT, INSTRUMENT PANEL

main90041-19A27×4iLA250,260..CG,CGT,CX,S201609-202001

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B2330-B0iLA250,260..CG,CGT,CX; LA250,260..S201609-202001

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,2#

8202WIRING & CLAMP

→ Go to FIG 82-02

9004119A29

main90041-19A29

9167380616

main91673-80616

9 parts on this diagram · 5 diagrams in section
