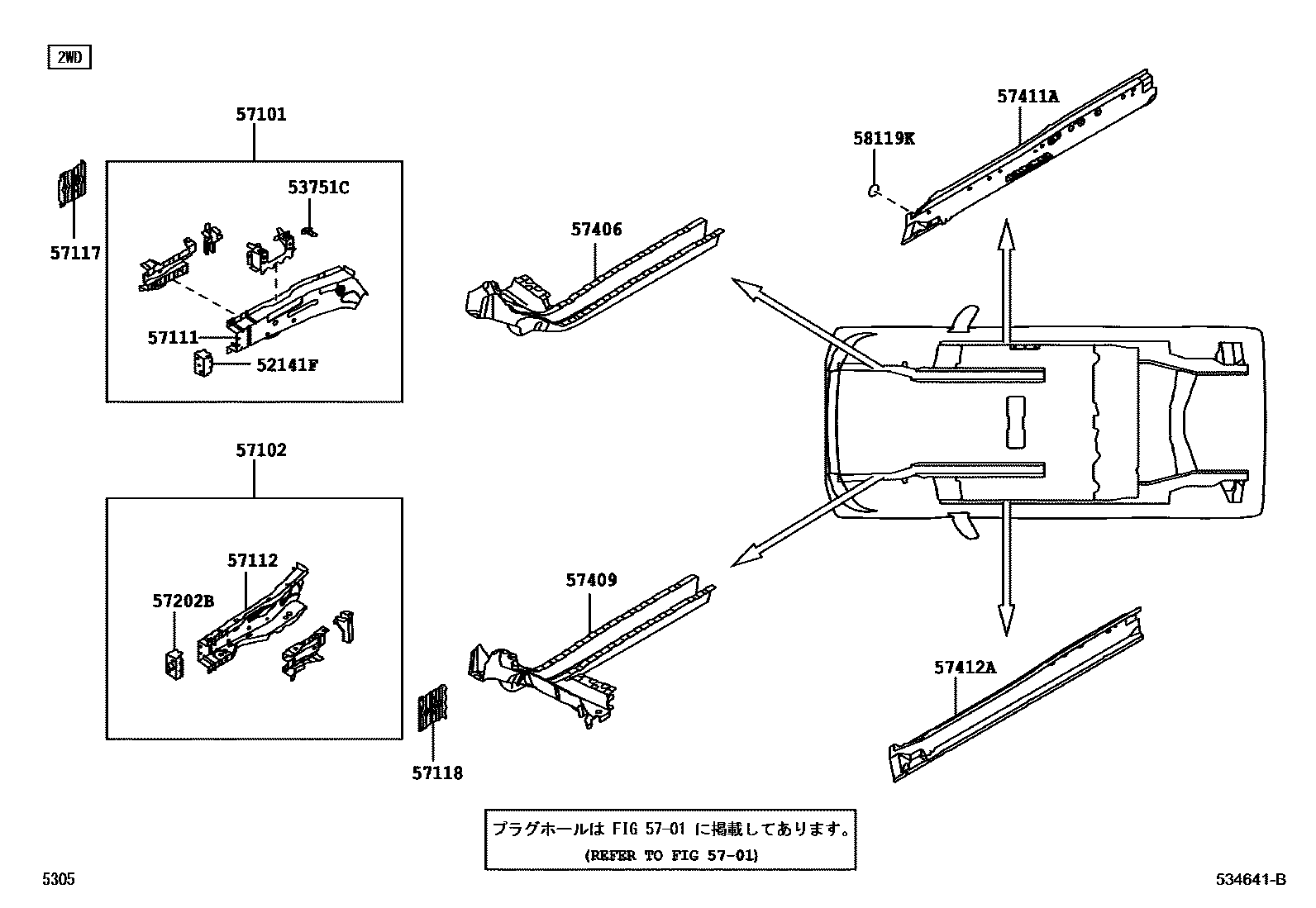

FLOOR SIDE MEMBER

0001 12WD FR 0002 12WD RR 0003 14WD FR 0004 14WD RR

52141FARM, FRONT BUMPER, RH

main52141-B2030iLA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1201609

53751CBRACKET, CHARCOAL CANISTER MOUNTING

main53751-B2040iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

5701HOLE PLUG

→ Go to FIG 57-01

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-B2230iLA250,260201609-202306

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-B2210iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

57112MEMBER, FRONT SIDE, LH

main57112-B2050iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-B2020iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57117-B2020iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main53078-B2070iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-B2200iLA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1201609

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-B2210iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-B2190iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-B2170iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

58119KCOVER, FRONT FLOOR SIDE, FRONT

main58119-B2050×2iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

14 parts on this diagram · 4 diagrams in section
