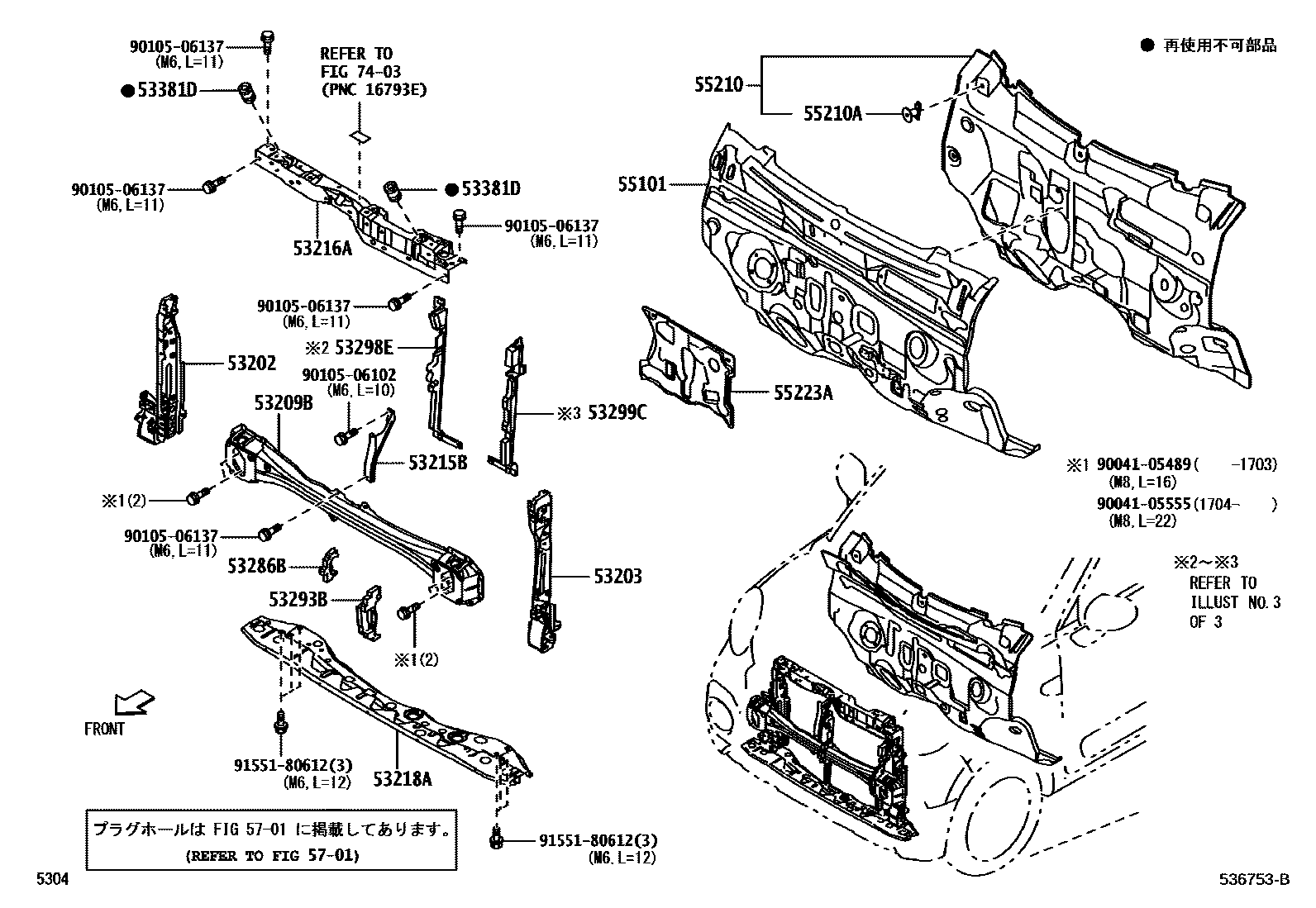

FRONT FENDER APRON & DASH PANEL

0001 1��������� 0002 1�������� 0003 1

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-B2240iLA250,260201609-202306

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-B2200iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-B2050iLA250,260201609-202306

53215BSUPPORT, HOOD LOCK

main53215-B2180iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

53216ASUPPORT, RADIATOR, UPPER

main53205-B2230iLA250,260201609-202306

53218ASUPPORT, RADIATOR, LOWER

main53028-B2330iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

53286BSEAL, RADIATOR SIDE AIR, NO.2

main88619-B2040iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

53293BSEAL, RADIATOR SUPPORT SERVICE HOLE

main88629-B2010iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

53298ESEAL, RADIATOR SIDE, RH

main53285-B2010iLA250,260201609-201710

main53285-B2060iLA250,260..CG,CGT,CX,S201710-202001

53299CSEAL, RADIATOR SIDE, LH

main53286-B2010iLA250,260201609-201710

main53286-B2070iLA250,260..CG,CGT,CX,S201710-202001

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-B2150×2iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

55101PANEL SUB-ASSY, DASH

main55101-B2540iLA250,260201609-202306

55210INSULATOR ASSY, DASH PANEL

main55210-B2410iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

55210ACLIP

main90467-11122×6iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

55223AINSULATOR, DASH PANEL, OUTER

main55223-B2120iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

5701HOLE PLUG

→ Go to FIG 57-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9004105489

main90041-05489

9004105555

main90041-05555

9010506102

main90105-06102

9010506137

main90105-06137

9155180612

main91551-80612

22 parts on this diagram · 3 diagrams in section
