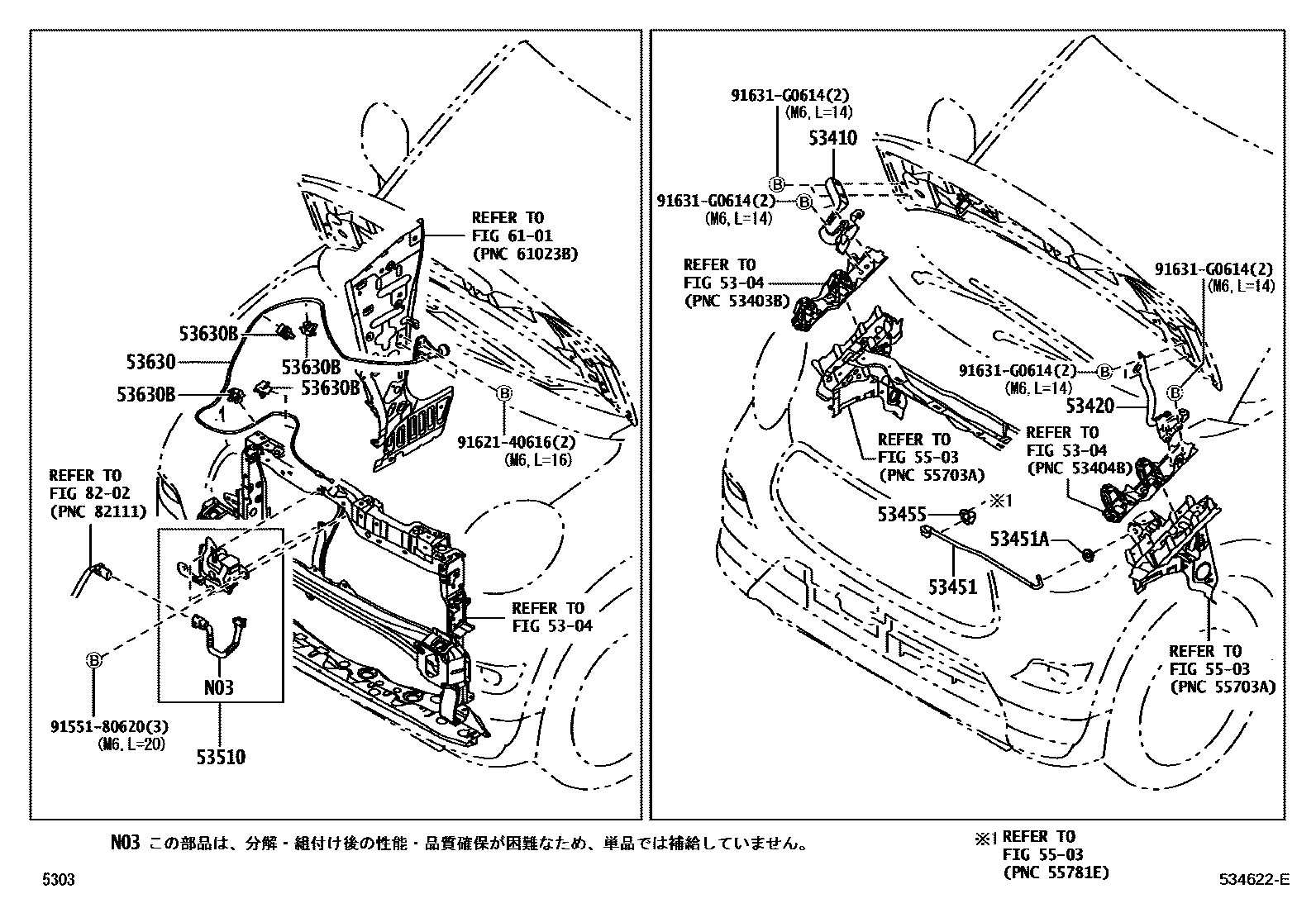

HOOD LOCK & HINGE

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53410HINGE ASSY, HOOD, RH

main53401-B2240iLA250,260201609-202306

53420HINGE ASSY, HOOD, LH

main53402-B2240iLA250,260201609-202306

53451ROD, HOOD SUPPORT

main53451-B2300iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90044-80667iLA250,260201609-202009

main90044-80679iLA250,260202010

53455CLAMP, HOOD SUPPORT ROD

main53455-B2131iLA250,260201609-202306

53510LOCK ASSY, HOOD

main53510-B2510iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-B2400iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90044-64735×4iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

6101SIDE MEMBER

→ Go to FIG 61-01

8202WIRING & CLAMP

→ Go to FIG 82-02

9155180620

main91551-80620

9162140616

main91621-40616

91631G0614

main91631-G0614

15 parts on this diagram · 1 diagram in section
