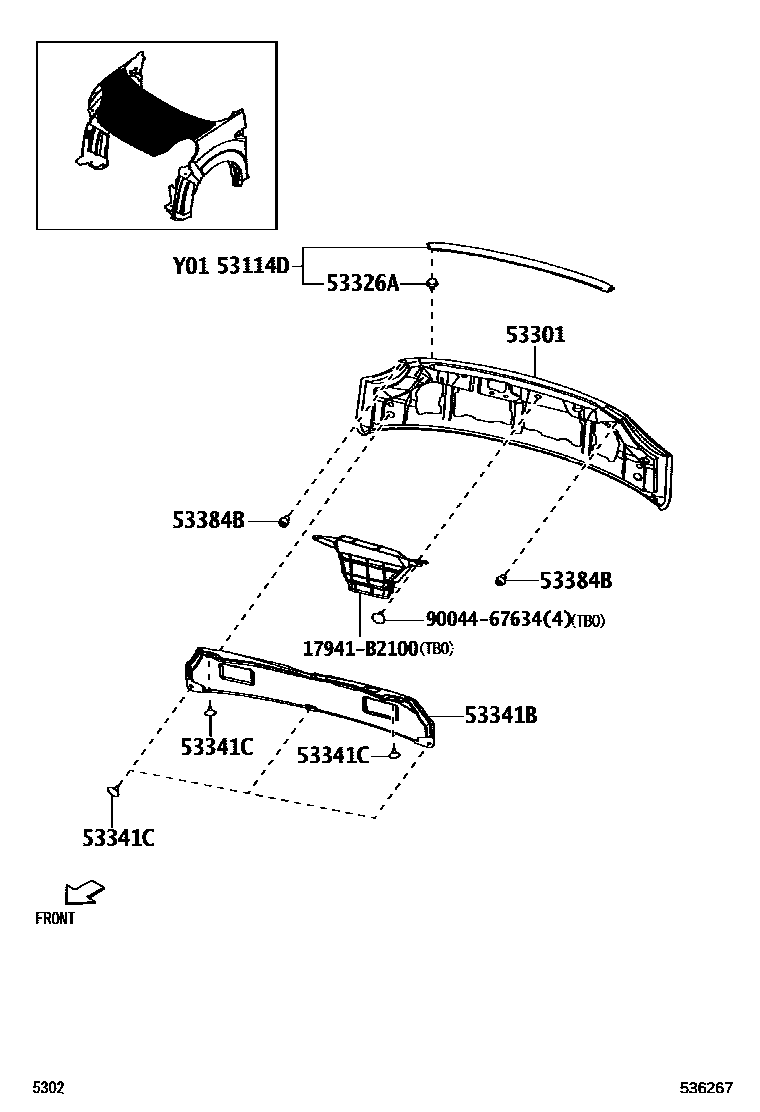

HOOD & FRONT FENDER

0001 1ILLUST NO.1 OF 4 0002 1ILLUST NO.2 OF 4 0003 1ILLUST NO.2 OF 4 0004 1ILLUST NO.3 OF 4 0005 1ILLUST NO.4 OF 4

53114DGRILLE, RADIATOR, UPPER

main53105-B2270iLA250,260..CG,CGT,CX,FG,FGT,FX201609-202306

main53105-B2280iLA250,260..S201609-202001

53301HOOD SUB-ASSY

main53301-B2740iLA250,260201609-202306

53326ACLIP, HOOD MOULDING

main53145-B2050×6iLA250,260201609-202306

53341BINSULATOR, HOOD

main53341-B2240iLA250,260201609-202306

53341CCLIP(FOR HOOD INSULATOR)

main90044-67470×5iLA250,260201609-201808

main90044-67634×5iLA250,260201809-202306

53384BCUSHION, HOOD, CENTER

main53384-B2010×2iLA250,260201609-202306

17941B2100GUIDE, INTERCOOLER AIR, NO.1

main17941-B2100

9004467634

main90044-67634

8 parts on this diagram · 5 diagrams in section
