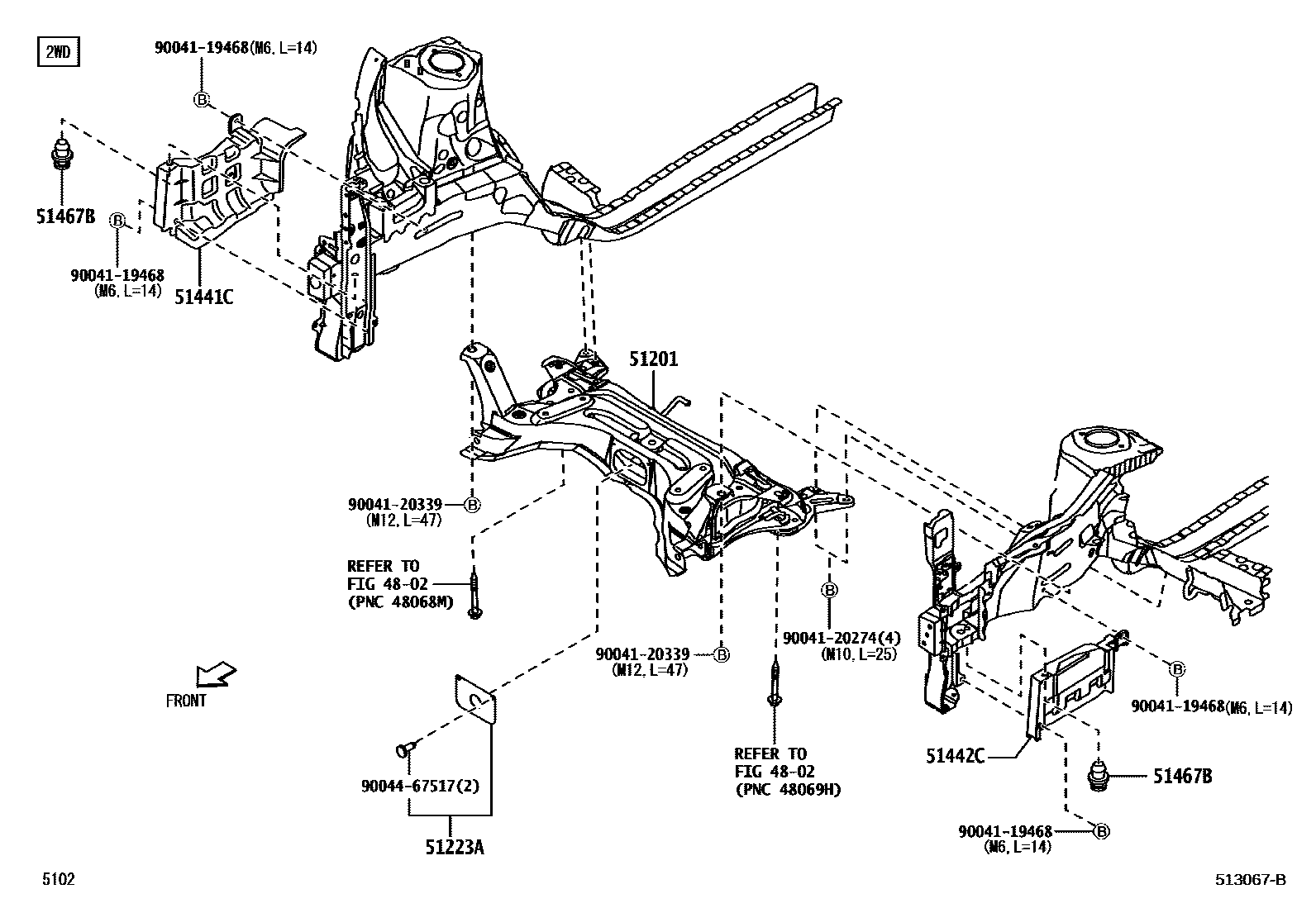

SUSPENSION CROSSMEMBER & UNDER COVER

0001 12WD 0002 14WD

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B2200iLA250..(CG,CGT,CX,S)..PS2201609-202001

main51201-B2210iLA260..(CG,CGT,CX,S)..PS2201609-202001

51223ACOVER, ENGINE MOUNTING HOLE

main51223-B2070iLA250..FG,FGT,FX;LA250..(CG,CGT,CX,S)..PS1201609

51441CCOVER, ENGINE UNDER, RH

main51441-B2030iLA250,260201609

51442CCOVER, ENGINE UNDER, LH

main51442-B2030iLA250,260201609

51467BRETAINER, ENGINE UNDER COVER

main51467-B2020×2iLA250,260201609-201901

main55788-52040×2iLA250,260201901

9004119468

main90041-19468

9004120274

main90041-20274

9004120339

main90041-20339

9004467517

main90044-67517

10 parts on this diagram · 2 diagrams in section
