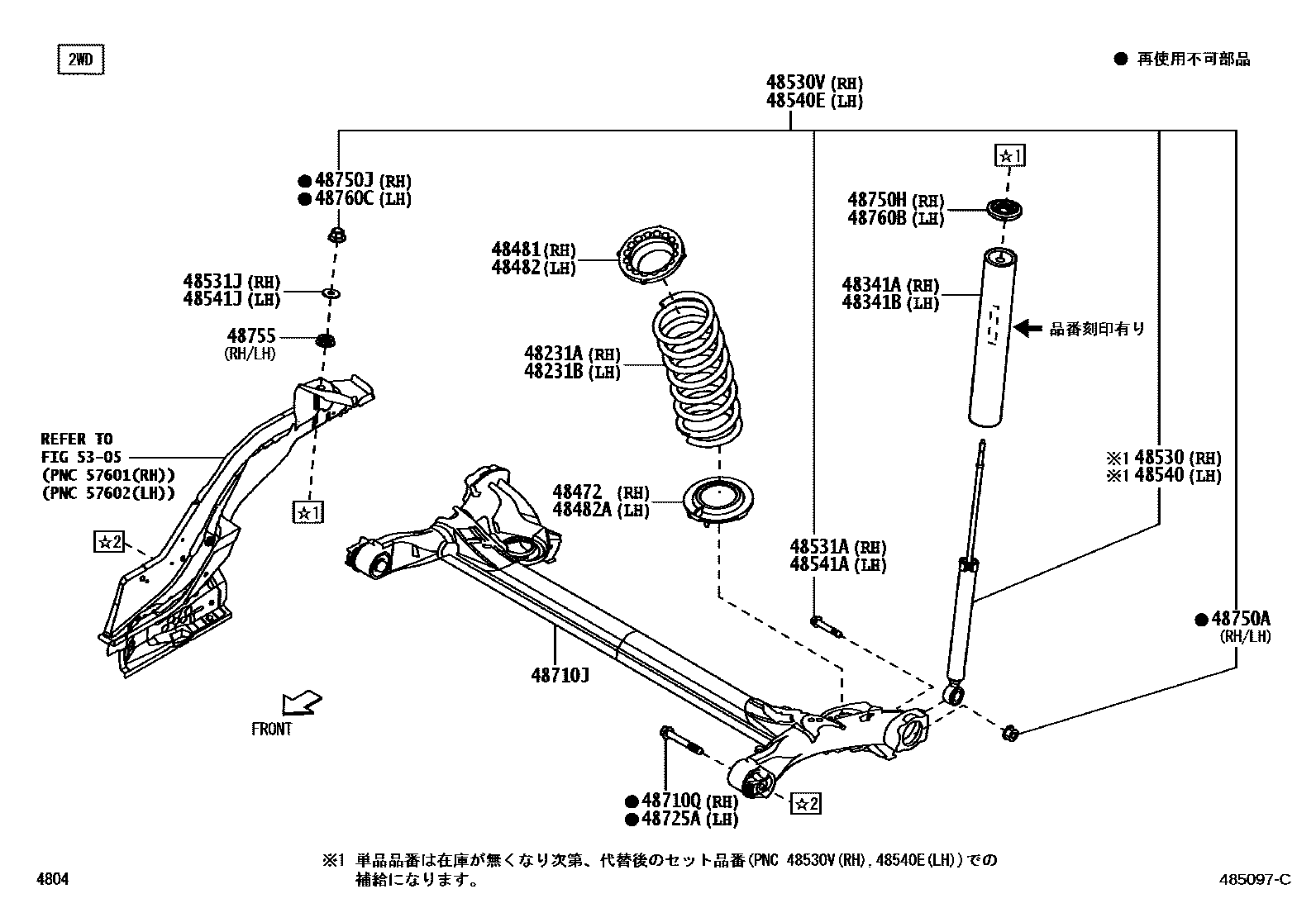

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530VABSORBER SET, SHOCK, REAR RH
48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)
48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
48540ABSORBER ASSY, SHOCK, REAR LH
48540EABSORBER SET, SHOCK, REAR LH
48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)
48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
48710JARM ASSY, REAR SUSPENSION, NO.1
48710QBOLT(FOR REAR LOWER CONTROL ARM)
48725ABOLT(FOR LOWER CONTROL ARM)
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
5305FLOOR SIDE MEMBER
26 parts on this diagram · 2 diagrams in section
