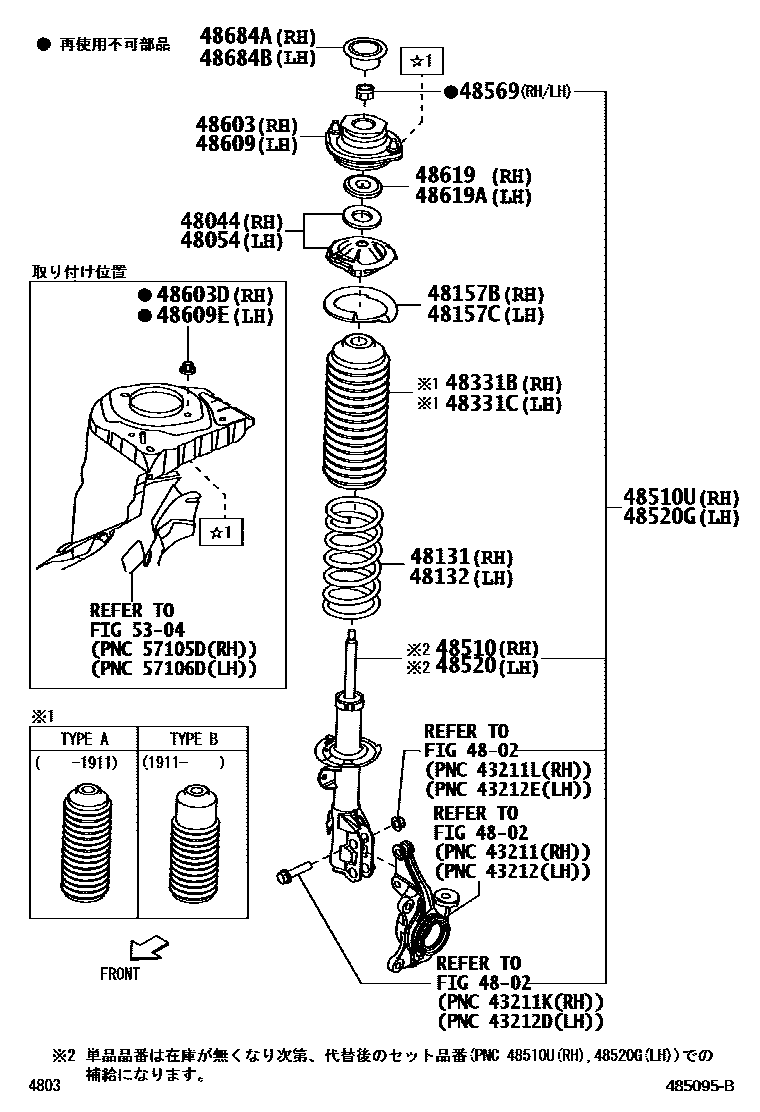

FRONT SPRING & SHOCK ABSORBER

0001 1ILLUST NO.1 OF 2 0002 1ILLUST NO.2 OF 2

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-B2010iLA250,260201609-202306

48054SEAT SUB-ASSY, FRONT SPRING, NO.2

main48044-B2010iLA250,260201609-202306

48131SPRING, FRONT COIL, RH

main48131-B2D30iLA250..CG,CGT,CX201609-201810

sub48131-B2D31

main48131-B2D31iLA250..CG,CGT,CX201811-202001

main48131-B2D40iLA250..FG,FGT,FX201609

main48131-B2D50iLA250..S201609-202001

main48131-B2D80iLA260..FG,FGT,FX,S201609-201810

sub48131-B2D81

main48131-B2D81iLA260..FG,FGT,FX,S201811

main48131-B2F10iLA260..CG,CGT,CX201609-202001

48132SPRING, FRONT COIL, LH

main48131-B2D30iLA250..CG,CGT,CX201609-201810

sub48131-B2D31

main48131-B2D31iLA250..CG,CGT,CX201811-202001

main48131-B2D40iLA250..FG,FGT,FX201609

main48131-B2D50iLA250..S201609-202001

main48131-B2D80iLA260..FG,FGT,FX,S201609-201810

sub48131-B2D81

main48131-B2D81iLA260..FG,FGT,FX,S201811

main48131-B2F10iLA260..CG,CGT,CX201609-202001

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-B2010iLA250,260201609

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-B2010iLA250,260201609

48331BBUMPER, FRONT SPRING, RH

main48331-B2060iLA250,260201609-201911

main48331-B2100iLA250,260201911

48331CBUMPER, FRONT SPRING, LH

main48331-B2060iLA250,260201609-201911

main48331-B2100iLA250,260201911

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-B2D80iLA250..FG,FGT,FX201609-202306

sub48510-B9035

main48510-B2E20iLA250..CG,CGT,CX201609-201812

sub48510-B9040

main48510-B2E30iLA250..S201609-201812

sub48510-B9045

main48510-B2E40iLA260..CG,CGT,CX201609-202001

sub48510-B9050

main48510-B2E50iLA260..FG,FGT,FX,S201609-201812

sub48510-B9055

48510UABSORBER SET, SHOCK, FRONT RH

main48510-B9035iLA250..FG,FGT,FX201609

main48510-B9040iLA250..CG,CGT,CX201609-201901

sub48510-B9041

main48510-B9041iLA250..CG,CGT,CX201901-202001

main48510-B9045iLA250..S201609-201901

sub48510-B9046

main48510-B9046iLA250..S201901-202001

main48510-B9050iLA260..CG,CGT,CX201609-202001

main48510-B9055iLA260..FG,FGT,FX,S201609-201901

sub48510-B9056

main48510-B9056iLA260..FG,FGT,FX,S201901

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-B2D80iLA250..FG,FGT,FX201609-202306

sub48520-B9035

main48520-B2E20iLA250..CG,CGT,CX201609-201812

sub48520-B9040

main48520-B2E30iLA250..S201609-201812

sub48520-B9045

main48520-B2E40iLA260..CG,CGT,CX201609-202001

sub48520-B9050

main48520-B2E50iLA260..FG,FGT,FX,S201609-201812

sub48520-B9055

48520GABSORBER SET, SHOCK, FRONT LH

main48520-B9035iLA250..FG,FGT,FX201609

main48520-B9040iLA250..CG,CGT,CX201609-201901

sub48520-B9041

main48520-B9041iLA250..CG,CGT,CX201901-202001

main48520-B9045iLA250..S201609-201901

sub48520-B9046

main48520-B9046iLA250..S201901-202001

main48520-B9050iLA260..CG,CGT,CX201609-202001

main48520-B9055iLA260..FG,FGT,FX,S201609-201901

sub48520-B9056

main48520-B9056iLA260..FG,FGT,FX,S201901

48569NUT, SHOCK ABSORBER PISTON

main90041-77005iLA250,260201609

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-B2060iLA250,260201609-202306

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90041-79347iLA250,260201609

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-B2060iLA250,260201609-202306

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90041-79347iLA250,260201609

48619BEARING, STRUT MOUNTING, RH

main48619-B2010iLA250,260201609

48619ABEARING, STRUT MOUNTING, LH

main48619-B2010iLA250,260201609

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-B2010iLA250,260201609

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-B2010iLA250,260201609

5304

23 parts on this diagram · 2 diagrams in section
