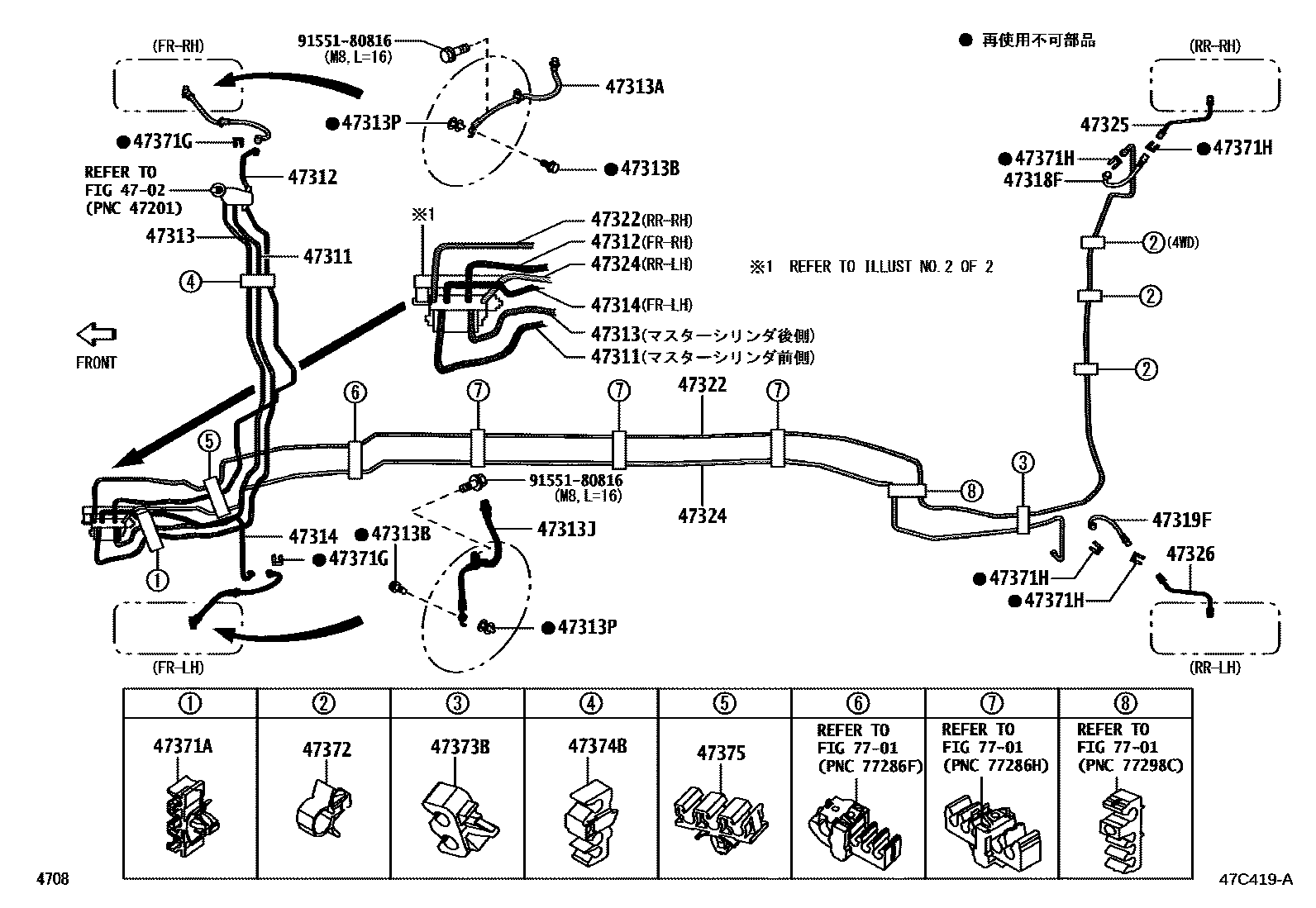

BRAKE TUBE & CLAMP

0001 1ILLUST NO.1 OF 2 0002 1ILLUST NO.2 OF 2

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-B2570iLA250,260..CG,CGT,CX,S201609-202001

47312TUBE, FRONT BRAKE, NO.2

main47312-B2440iLA250,260..CG,CGT,CX,S201609-202001

47313TUBE, FRONT BRAKE, NO.3

main47313-B2540iLA250,260..CG,CGT,CX,S201609-202001

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90049-22304iLA250,260..CG,CGT,CX,S201609-202001

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iLA250,260..CG,CGT,CX,S201609-202001

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90049-22305iLA250,260..CG,CGT,CX,S201609-202001

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iLA250,260..CG,CGT,CX,S201609-202001

47314TUBE, FRONT BRAKE, NO.4

main47314-B2320iLA250,260..CG,CGT,CX,S201609-202001

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90049-22202iLA250..CG,CGT,CX,S201609-202001

main90049-22204iLA260201609-201701

main90049-22317iLA260..CG,CGT,CX,S201702-202001

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90049-22202iLA250..CG,CGT,CX,S201609-202001

main90049-22204iLA260201609-201701

main90049-22317iLA260..FG,FGT,FX201702

47322TUBE, REAR BRAKE, NO.2

main47322-B2700iLA250..CG,CGT,CX,S201609-202001

main47322-B2710iLA260..CG,CGT,CX,S201609-202001

47324TUBE, REAR BRAKE, NO.4

main47324-B2690iLA250..CG,CGT,CX,S201609-202001

main47324-B2700iLA260..FG,FGT,FX201609

47325TUBE, REAR BRAKE, NO.5

main47325-B2030iLA260..FG,FGT,FX201609

main47325-B2090iLA250..CG,CGT,CX,S201609-202001

47326TUBE, REAR BRAKE, NO.6

main47326-B2030iLA260..CG,CGT,CX,S201609-202001

main47326-B2090iLA250..CG,CGT,CX,S201609-202001

47371ACLAMP, BRAKE TUBE, NO.1

main47372-B2030iLA250,260..CG,CGT,CX,S201609-202001

47371GCLAMP, BRAKE TUBE, NO.11

main90044-65441×2iLA250,260..CG,CGT,CX,S201609-202001

47371HCLAMP, BRAKE TUBE, NO.12

main90044-65441×4iLA250,260..FG,FGT,FX201609

47372CLAMP, BRAKE TUBE, NO.2

main90044-64889×2iLA250; LA260201609-201911

main90044-64918×2iLA250; LA260201912

47373BCLAMP, BRAKE TUBE, NO.3

main90044-64891iLA250,260..CG,CGT,CX,S201609-202001

47374BCLAMP, BRAKE TUBE, NO.4

main90044-64892iLA250,260..CG,CGT,CX,S201609-202001

47375CLAMP, BRAKE TUBE, NO.5

main47372-B2070iLA250,260..CG,CGT,CX,S201609-202001
