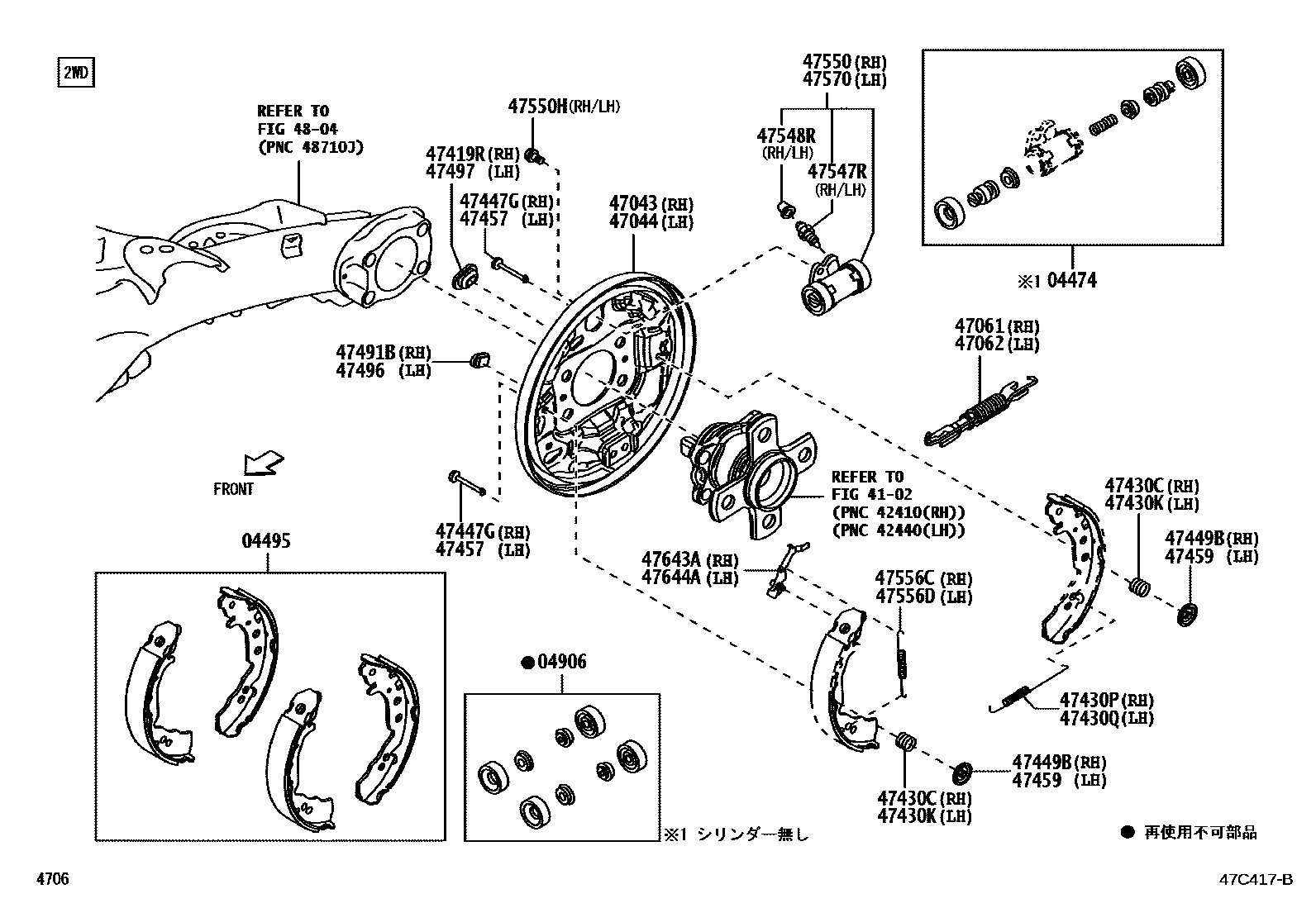

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 12WD 0002 14WD

04474CYLINDER KIT, REAR WHEEL

main04474-B1010×2iLA260201609

main04474-B1030×2iLA250201609

04495SHOE KIT, REAR BRAKE

main04495-B2400iLA250201609-201905

main04495-B2410iLA260201609

main04495-B2430iLA250201906

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B1030iLA250201609

main04906-B2010iLA260201609

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-B2090iLA250201609

main47043-B2100iLA260201609

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-B2090iLA250201609

main47044-B2100iLA260201609

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-B2040iLA250,260201609-201903

main47061-B2041iLA250,260201904-202306

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-B2040iLA250,260201609-201903

main47062-B2041iLA250,260201904-202306

47419RPLUG, HOLE(FOR REAR BRAKE)

main47491-B2030iLA250,260201609-202306

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90045-01848×2iLA250201609-202306

main90045-01854×2iLA260201609-202306

47430KSPRING(FOR REAR BRAKE SHOE HOLD DOWN, NO.2)

main90045-01848×2iLA250201609-202306

main90045-01854×2iLA260201609-202306

47430PSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main47459-B2020iLA250,260201609-202306

47430QSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main47459-B2020iLA250,260201609-202306

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87204×2iLA250201609-202306

main47447-87501×2iLA260201609-202306

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×2iLA250,260201609-202306

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87204×2iLA250201609-202306

main47447-87501×2iLA260201609-202306

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×2iLA250,260201609-202306

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-B1010iLA250,260201609-202306

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-B1010iLA250,260201609-202306

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47491-B2030iLA250,260201609-202306

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87203×2iLA260201609

main47547-87204×2iLA250201609

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87501×2iLA250,260201609

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-B1010iLA250201609

main47560-B5010iLA260201609

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90041-19848×2iLA250; LA260201609

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-B2040iLA250,260201609

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47556-B2020iLA250,260201609

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47560-B5010iLA260201609

main47570-B1010iLA250201609

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-B2020iLA250,260201609

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-B2020iLA250,260201609

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

30 parts on this diagram · 2 diagrams in section
