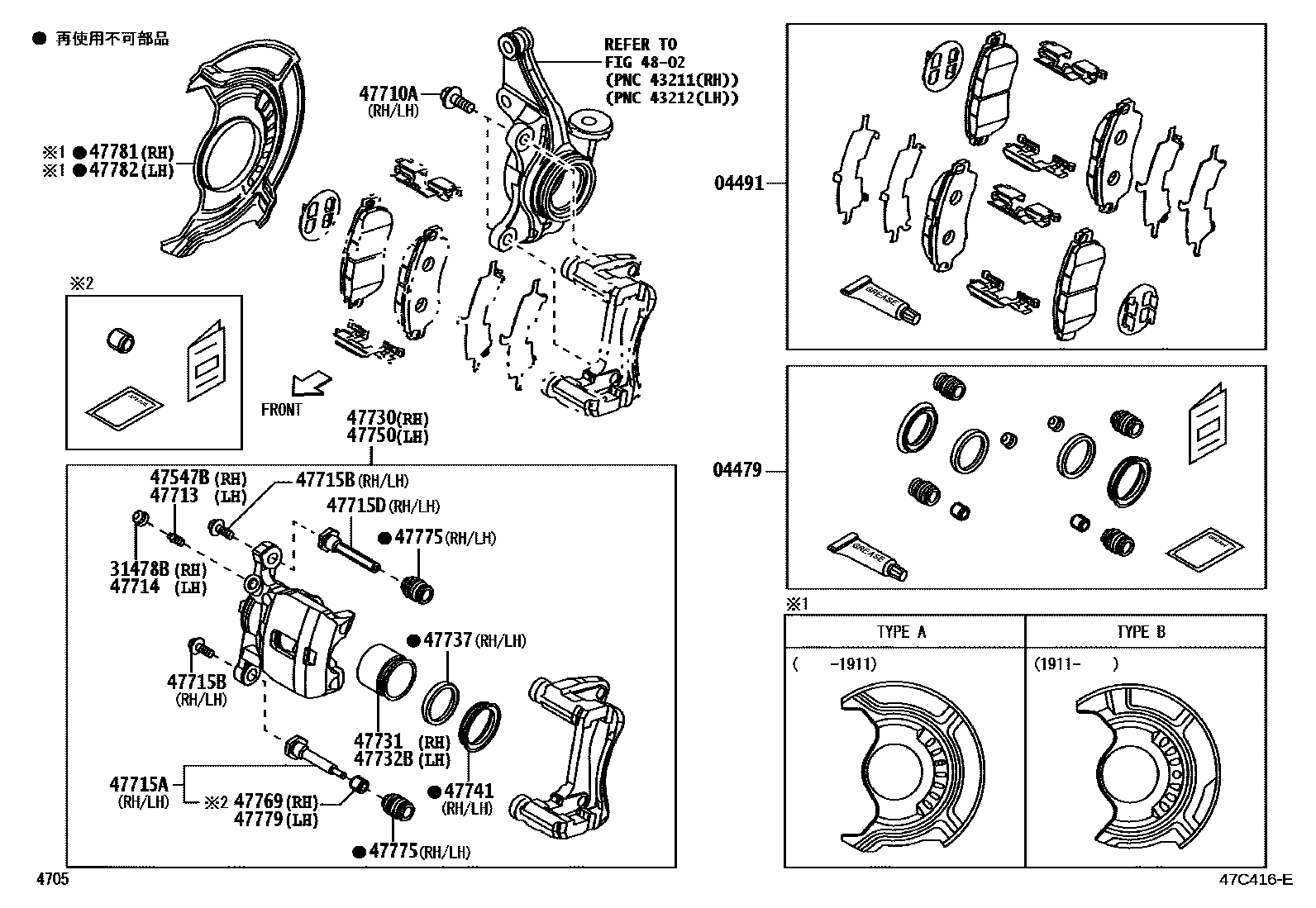

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B2170iLA250,260201609

04491PAD KIT, DISC BRAKE, FRONT

main04465-B2220iLA250,260201911

main04491-B2101iLA250,260201609-201902

main04491-B2102iLA250,260201902-201910

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-97401iLA250,260201609-202306

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-B1020iLA250,260201609-202306

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05176×4iLA250,260201609

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-B1020iLA250,260201609-202306

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-97401iLA250,260201609-202306

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-B1010×2iLA250,260201609

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-B1020×4iLA250,260201609

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-B1010×2iLA250,260201609

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-B2080iLA250,260201609

47731PISTON, FRONT DISC BRAKE

main47731-97401iLA250,260201609-202306

47732BPISTON, DISC BRAKE, NO.2(FOR FRONT DISC BRAKE)

main47731-97401iLA250,260201609-202306

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-97401×2iLA250,260201609

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-97401×2iLA250,260201609

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-B2080iLA250,260201609

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-B9010iLA250,260201609-202306

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-B1010×4iLA250,260201609

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-B9010iLA250,260201609-202306

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-B2030iLA250,260201609-201702

main47781-B2050iLA250,260201911

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-B2010iLA250,260201609-201702

main47782-B2050iLA250,260201911

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

22 parts on this diagram · 1 diagram in section
