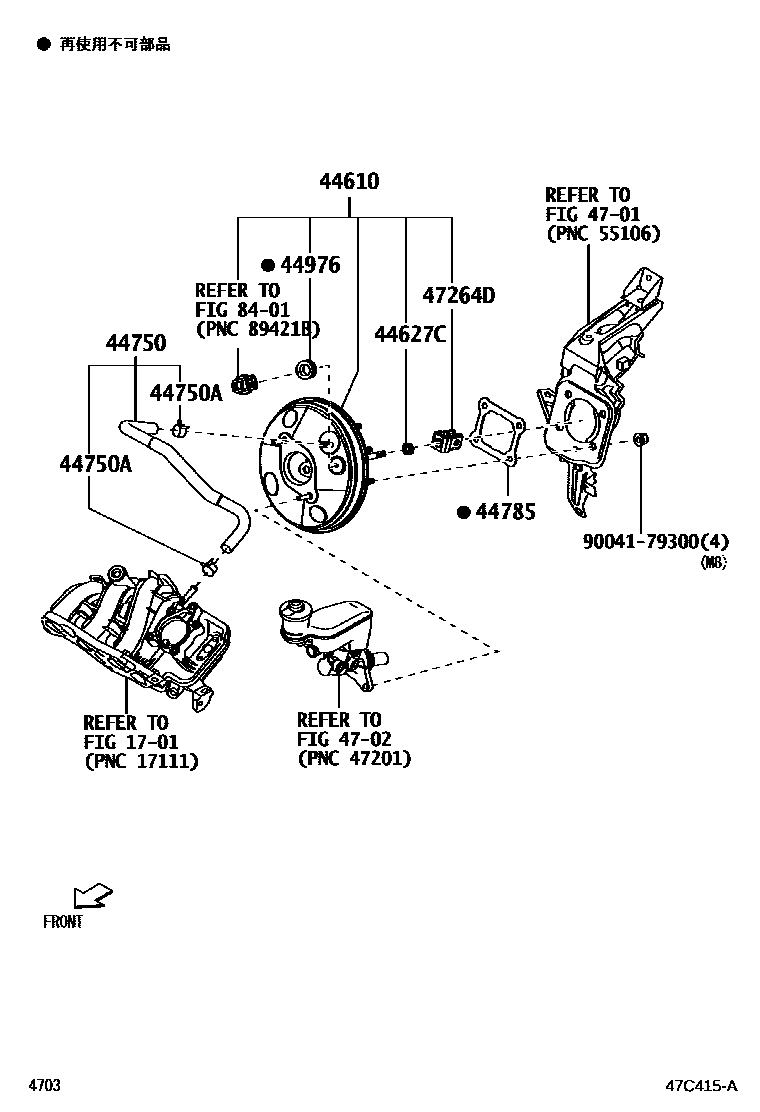

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-B2260iLA250,260201712-202006

main44610-B2262iLA250,260202006-202306

main44610-B2470iLA250,260201609-201711

44627CNUT, BOOSTER SLEEVE CYLINDER

main94120-40800iLA250,260201609

44750HOSE ASSY, VACUUM

main44750-B2261iLA250,260201609

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161×2iLA250,260201609

44785GASKET, BRAKE BOOSTER

main47278-87703iLA250,260201609

44976SEAL, BOOSTER

main44685-B2010iLA250,260201609-202306

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B2020iLA250,260201609

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004179300

main90041-79300

12 parts on this diagram · 1 diagram in section
