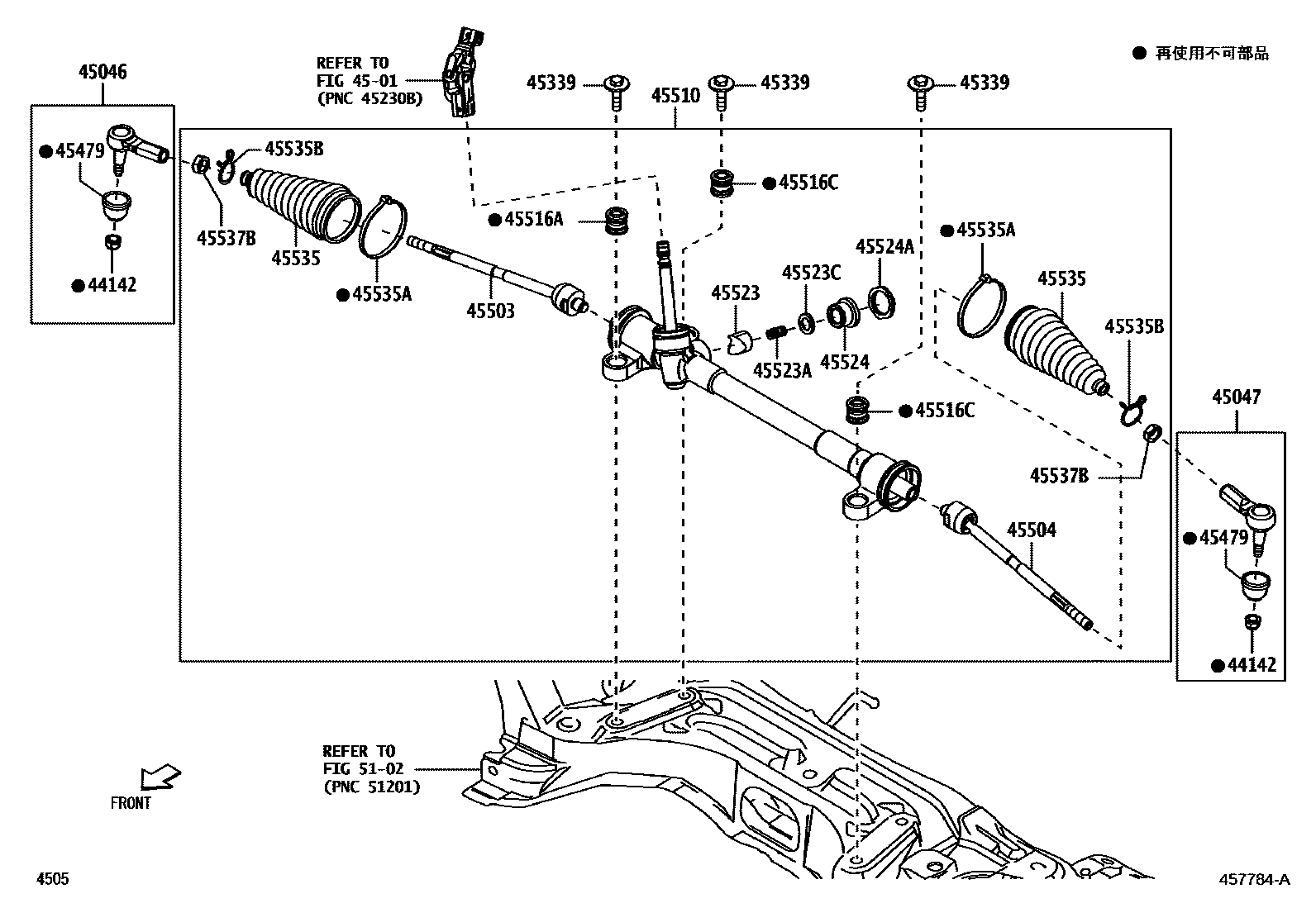

FRONT STEERING GEAR & LINK

44142NUT, LOCK

main90041-77011×2iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45046-B9400iLA250,260201609-201705

main45046-B9410iLA250,260201706-201904

main45046-B9411iLA250,260201905-202109

main45046-B9412iLA250,260202110

45047END SUB-ASSY, TIE ROD, LH

main45046-B9400iLA250,260201609-201705

main45046-B9410iLA250,260201706-201904

main45046-B9411iLA250,260201905-202109

main45046-B9412iLA250,260202110

45339BOLT, STEERING GEAR HOUSING

main90041-20051×3iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45479SEAL, STEERING LINK JOINT DUST

main45479-B2020×2iLA250,260201905

main45479-B2040×2iLA250,260201609-201904

45503END SUB-ASSY, STEERING RACK

main45503-B2080iLA250,260201609-201705

main45503-B2100iLA250,260..FG,FGT,FX;LA250,260..(CG,CGT,CX,S)..PS1201706

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-B2080iLA250,260201609-201705

main45503-B2100iLA250,260..(CG,CGT,CX,S)..PS2201706-202001

45510GEAR ASSY, STEERING

main45502-B2420iLA250,260201609-202306

45516ABUSH, STEERING RACK HOUSING, NO.1

main45516-B2110iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45516CBUSH, STEERING RACK HOUSING, NO.2

main45516-B2120×2iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-B1030iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90045-01818iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45523CSPACER(FOR RACK GUIDE)

main90042-08036iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45524CAP, STEERING RACK GUIDE SPRING

main45524-87705iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90041-70277iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45535BOOT, STEERING RACK, NO.1

main45535-B2010×2iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-B2020×2iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45535BCLIP(FOR STEERING RACK BOOT)

main45537-97201×2iLA250,260..(CG,CGT,CX,S)..PS2201609-202001

45537BNUT, RACK END LOCK

main90041-70402×2iLA250,260202003

main94130-61200×2iLA250,260201609-202002

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

21 parts on this diagram · 1 diagram in section
