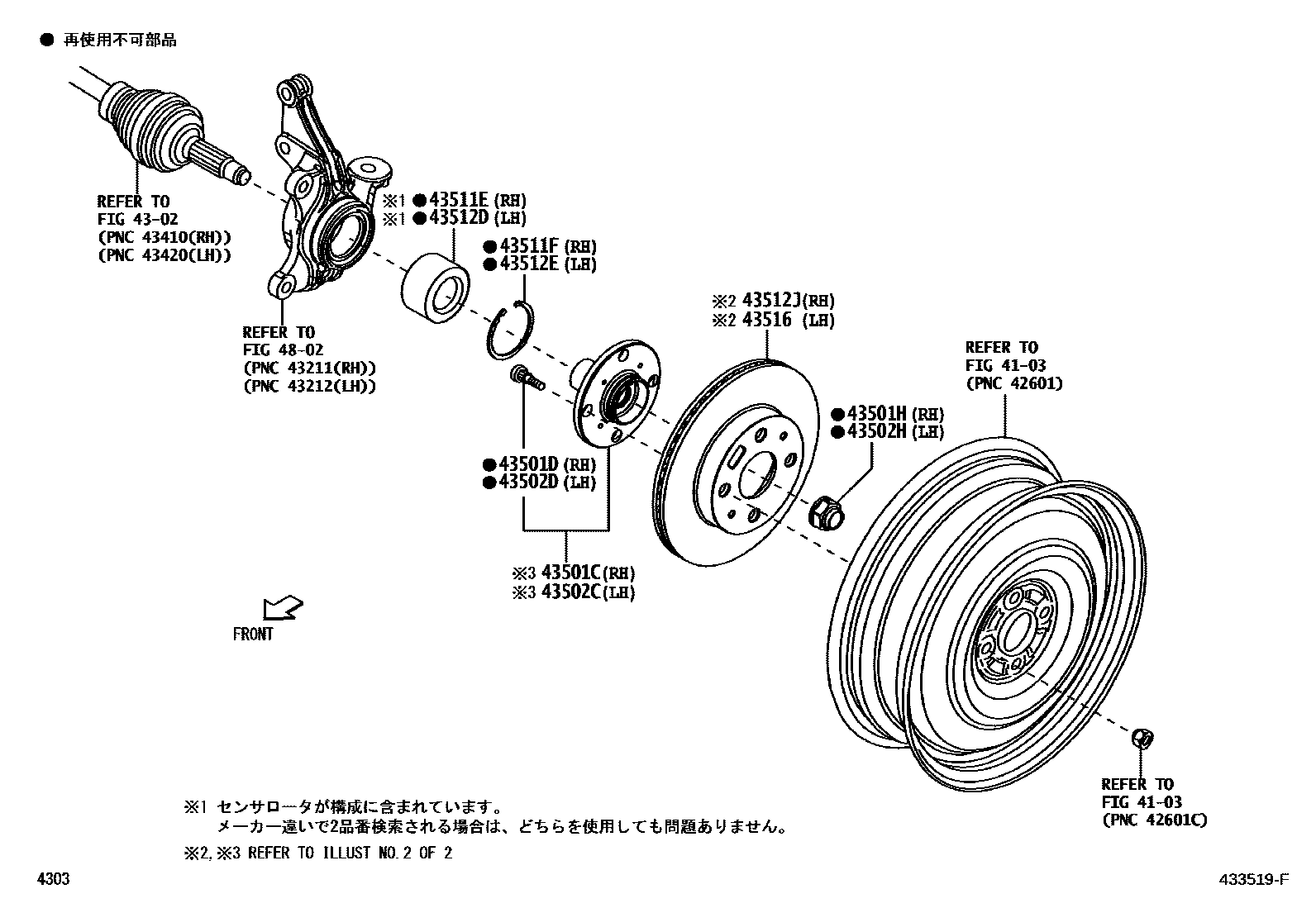

FRONT AXLE HUB

0001 1ILLUST NO.1 OF 2 0002 1ILLUST NO.2 OF 2

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B2030iLA250,260202006

main43502-B5020iLA250,260201609-202006

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iLA250,260201609

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-79274iLA250,260201609-202306

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B2030iLA250,260202006

main43502-B5020iLA250,260201609-202006

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iLA250,260201609

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-79274iLA250,260201609-202306

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B2021iLA250,260201609-201904

main43560-B2022iLA250,260201905

main43560-B2030iLA250,260201609-201904

main43560-B2031iLA250,260201905

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163iLA250,260..CG,CGT,CX,S201609-202001

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B2021iLA250,260201609-201904

main43560-B2022iLA250,260201905

main43560-B2030iLA250,260201609-201904

main43560-B2031iLA250,260201905

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163iLA250,260..FG,FGT,FX201609

43512JDISC, FRONT RH

main43512-B2112iLA250,260201609-202006

main43512-B2150iLA250,260202006

43516DISC, FRONT LH

main43512-B2112iLA250,260201609-202006

main43512-B2150iLA250,260202006

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

15 parts on this diagram · 2 diagrams in section
