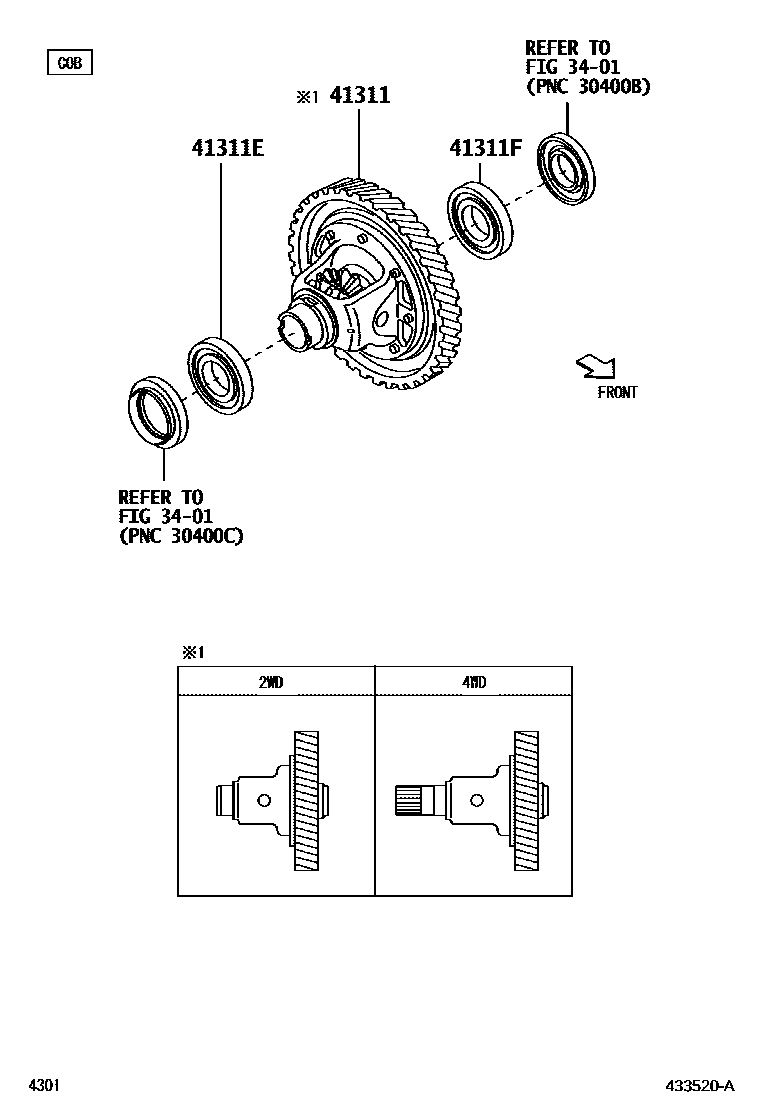

FRONT AXLE HOUSING & DIFFERENTIAL

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

41311CASE, FRONT DIFFERENTIAL

main41310-B2110iLA250..FGT201609

main41310-B2130iLA260..FGT201609

main41310-B2200iLA250..FG,FX201609

main41310-B2210iLA260..CG,CX201609-202001

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90043-63389iLA250,260..CG,CGT,CX,S201609-202001

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90043-63388iLA250,260..CG,CGT,CX,S201609-202001

4 parts on this diagram · 1 diagram in section
