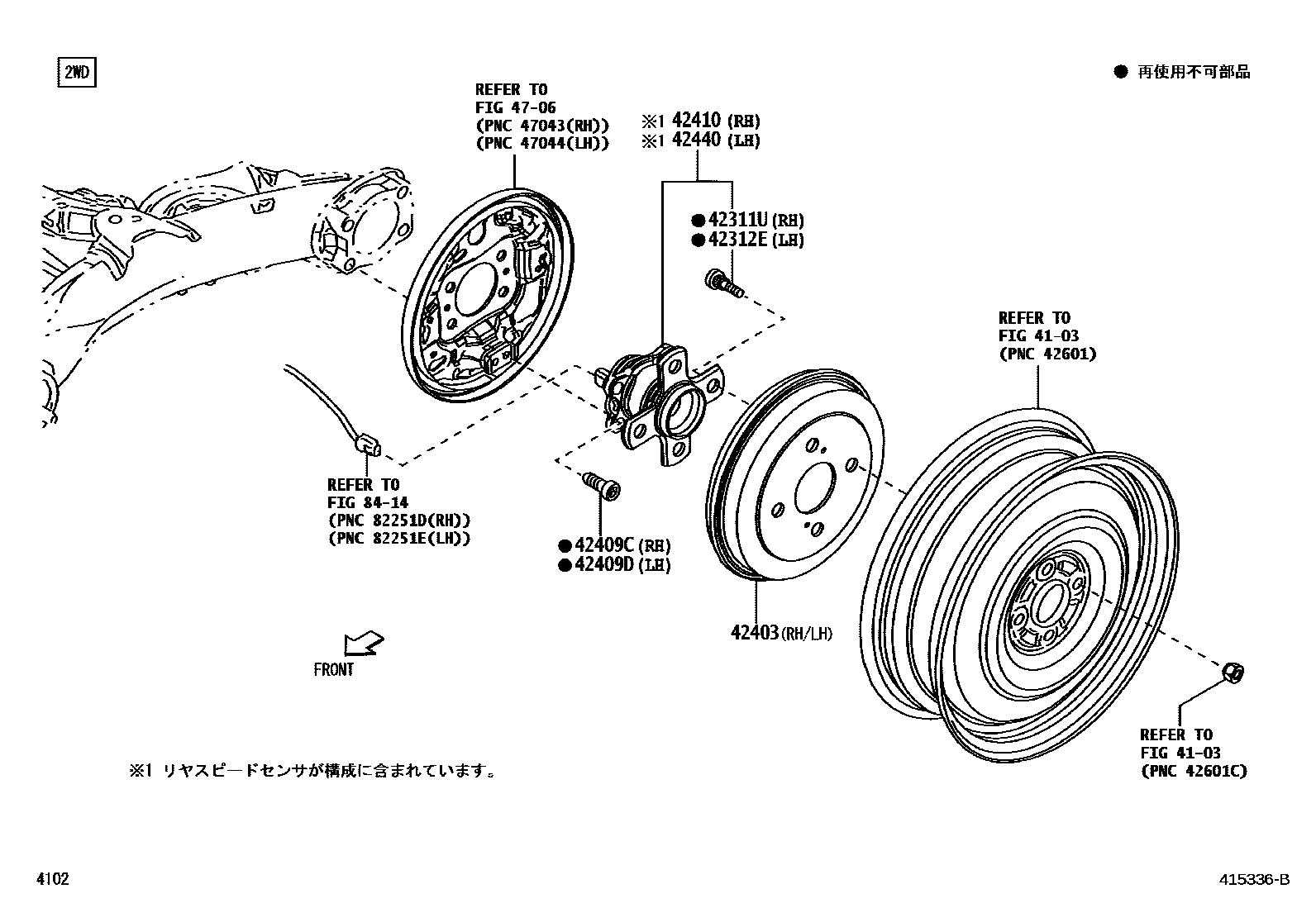

REAR AXLE SHAFT & HUB

0001 12WD 0002 12WD 0003 14WD

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12055×4iLA260201609-202306

main90049-12062×4iLA250201609-202306

42312SHAFT, REAR AXLE, LH

main42312-B2030iLA260201811

main42312-B5010iLA260201609-201810

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12055×4iLA260201609-202306

main90049-12062×4iLA250201609-202306

42403DRUM SUB-ASSY, REAR BRAKE

main42431-B1021×2iLA250201609-202006

main42431-B2080×2iLA260201609-202306

main42431-B2100×2iLA250202006-202306

42409CBOLT (FOR REAR AXLE BEARING RH)

main90041-01650×4iLA250201609

42409DBOLT (FOR REAR AXLE BEARING LH)

main90041-01650×4iLA250201609

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-B2080iLA250201609-202006

main42410-B2081iLA250202007-202306

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-B2080iLA250201609-202006

main42410-B2081iLA250202007-202306

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8414ABS & VSC

→ Go to FIG 84-14

11 parts on this diagram · 3 diagrams in section
