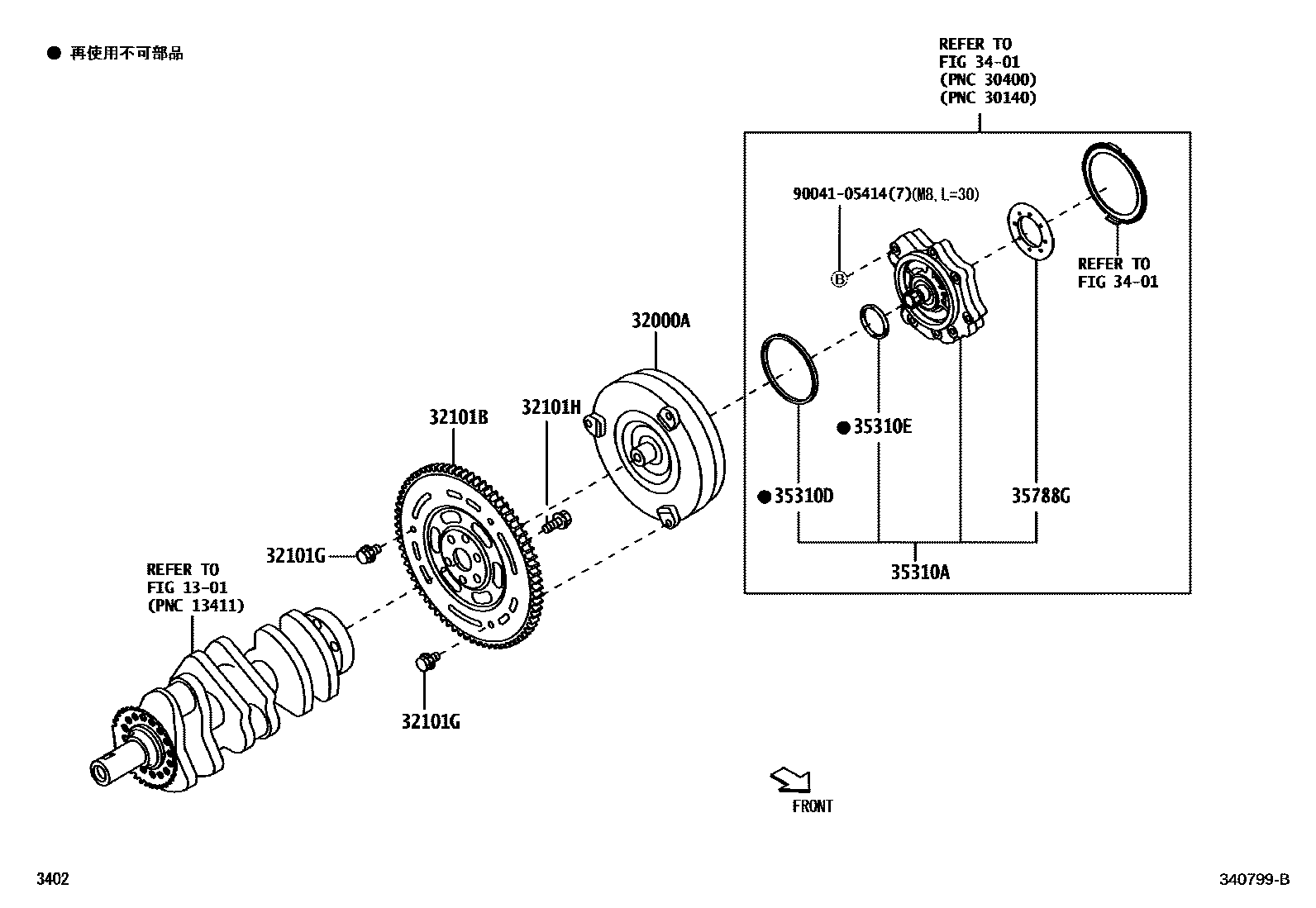

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

32000ACONVERTER ASSY, TORQUE

main32000-B2090iLA250,260..CG,CX,FG,FX201609-201804

main32000-B2130iLA250,260..CGT,FGT,S201609-202306

main32000-B2220iLA250,260..CG,CX,FG,FX201804-202306

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B2021iLA250,260..CG,CGT,CX,S201609-202001

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05280iLA250,260201609-201908

main90041-05281×2iLA250,260201609-201908

main90041-05595iLA250,260..CG,CGT,CX,S201909-202001

main90041-05596×2iLA250,260..FG,FGT,FX201909

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iLA250,260..CG,CGT,CX,S201609-202001

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-B9051iLA250,260201609-201910

main35310-B9052iLA250,260201910-202306

35310DRING, O (FOR FRONT OIL PUMP)

main90043-01332iLA250,260..CG,CGT,CX,S201609-202001

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main90043-11423iLA250,260..CG,CGT,CX,S201609-202001

35788GRACE, THRUST BEARING

main35789-B2061iLA250,260..CG,CGT,CX,S201609-202001

main35789-B2071iLA250,260..CG,CGT,CX,S201609-202001

main35789-B2081iLA250,260..FG,FGT,FX201609

main35789-B2091iLA250,260..CG,CGT,CX,S201609-202001

main35789-B2101iLA250,260..CG,CGT,CX,S201609-202001

main35789-B2111iLA250,260..FG,FGT,FX201609

9004105414

main90041-05414

11 parts on this diagram · 1 diagram in section
