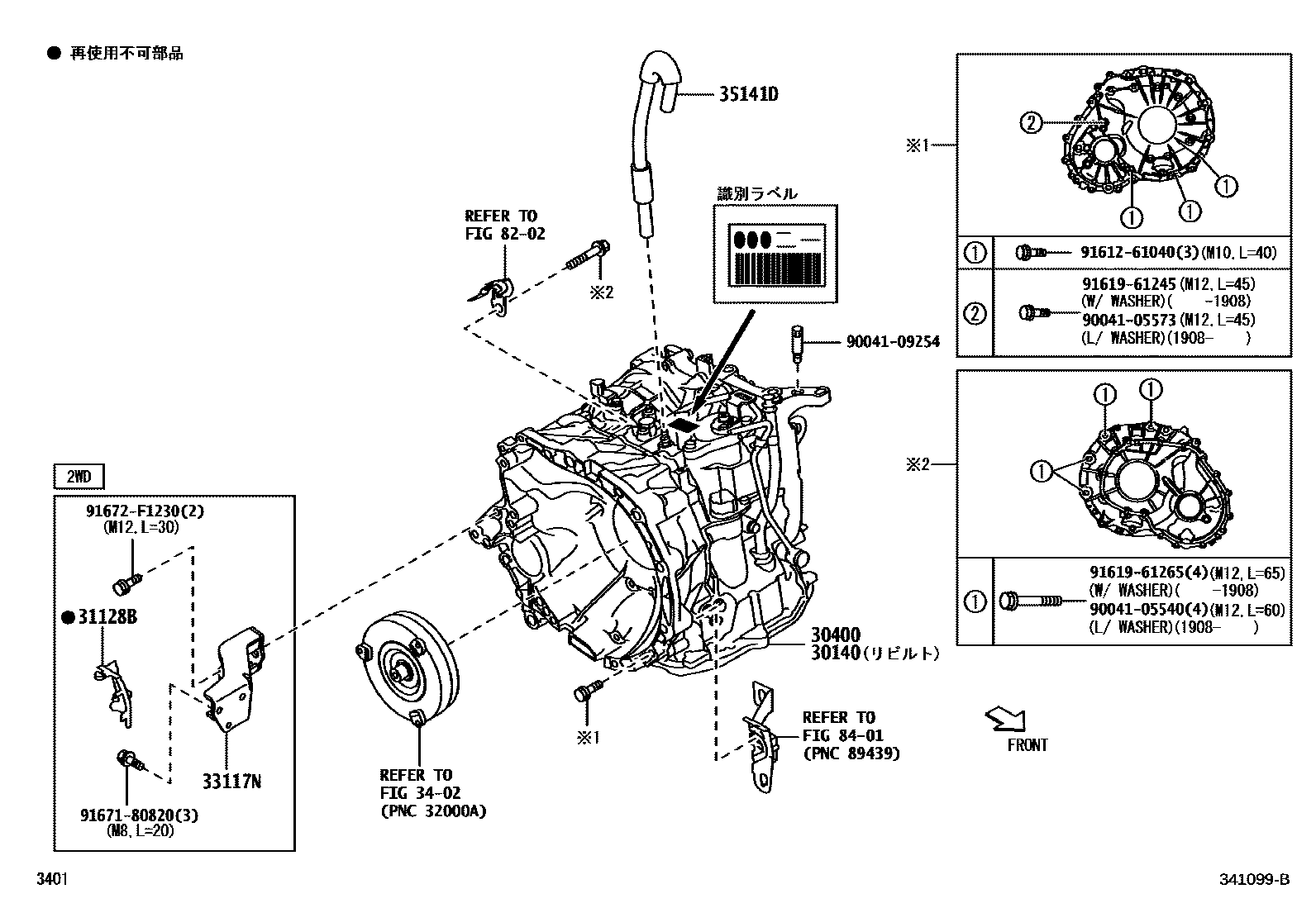

TRANSAXLE ASSY(CVT)

0001 1ILLUST NO.1 OF 5 0002 1ILLUST NO.2 OF 5 0003 1ILLUST NO.3 OF 5 0004 1ILLUST NO.4 OF 5 0005 1ILLUST NO.4 OF 5 0006 1ILLUST NO.5 OF 5

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-B0590iLA250..CGT,FGT,S201609-202306

main30140-B0600iLA260..CGT,FGT,S201609-202306

main30140-B0630iLA250..CG,CX,FG,FX201609-202306

main30140-B0640iLA260..CG,CX,FG,FX201609-202306

main30140-B0710iLA250..CGT,FGT,S201609-202306

main30140-B0720iLA260..CGT,FGT,S201609-202306

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-B2590iLA250..CGT,FGT,S201609-202306

main30400-B2600iLA260..CGT,FGT,S201609-202306

main30400-B2630iLA250..CG,CX,FG,FX201609-202306

main30400-B2640iLA260..CG,CX,FG,FX201609-202306

main30400-B2710iLA250..CGT,FGT,S201609-202306

main30400-B2720iLA260..CGT,FGT,S201609-202306

31128BCOVER, CLUTCH HOUSING UNDER

main31128-B2060iLA250..(CG,CGT,CX,S)..PS2201609-202001

33117NBRACKET, STIFFENER PLATE

main33117-B2010iLA250..FG,FGT,FX;LA250..(CG,CGT,CX,S)..PS1201609

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

35141DHOSE(FOR BREATHER PLUG)

main35121-B2070iLA250,260201609-202004

main35121-B2080iLA250,260202005

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105540

main90041-05540

9004105573

main90041-05573

9004109254

main90041-09254

9161261040

main91612-61040

9161961245

main91619-61245

9161961265

main91619-61265

9167180820

main91671-80820

91672F1230

main91672-F1230

16 parts on this diagram · 6 diagrams in section
