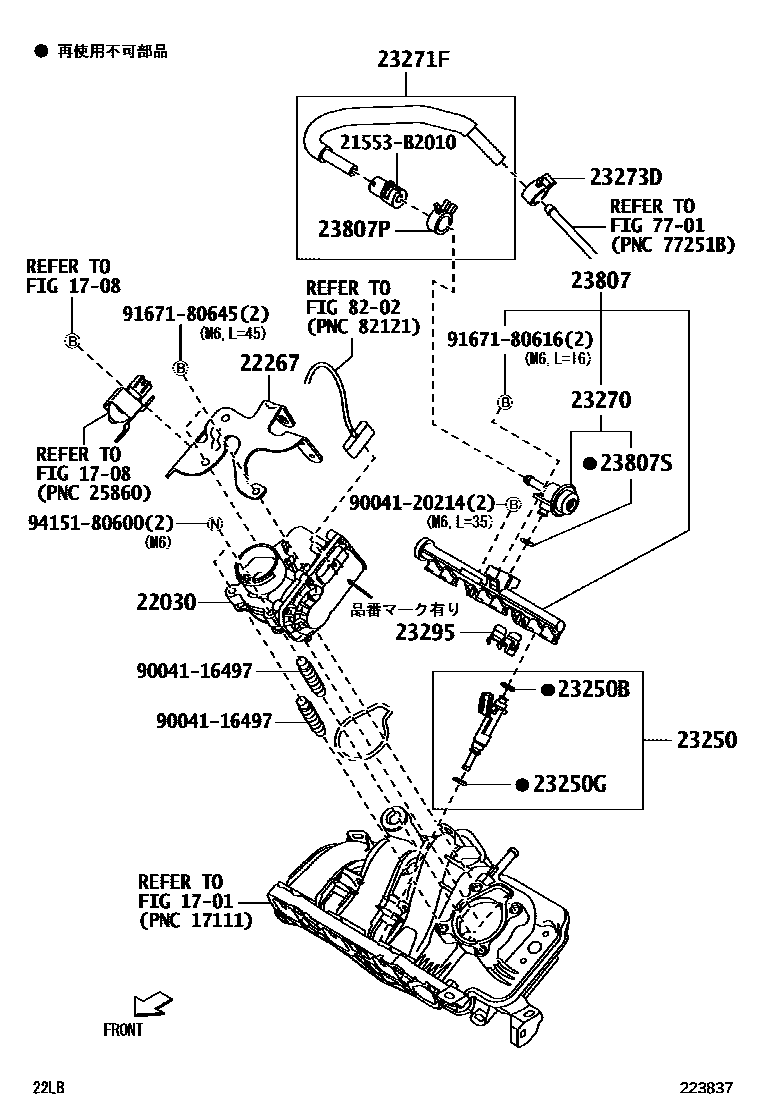

FUEL INJECTION SYSTEM

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-B2040iKFV#..LA250,260201609-202306

22267BRACKET, THROTTLE BODY

main58239-B2030iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

23250INJECTOR ASSY, FUEL

main23250-B2020×3iKFVET..LA250,260..FGT;KFVET..LA250,260..(CGT,S)..PS1201609

main23250-B2050×3iKFVE..LA250,260..(CG,CX)..PS2201609-202001

23250BRING, O(FOR FUEL INJECTOR)

main90043-01349×3iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90043-01348×3iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-B2010iKFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1201609

23271FHOSE, FUEL

main77260-B2060iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

23273DCLIP(FOR FUEL HOSE NO.2)

main90044-67400iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

23295HOLDER, INJECTOR, NO.1

main23295-B2020×3iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-B2020iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

23807PCLIP(FOR FUEL HOSE)

main90044-67400iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

23807SRING, O(FOR FUEL DELIVARY PIPE)

main90043-01353iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

21553B2010GUIDE

main21553-B2010

9004116497

main90041-16497

9004120214

main90041-20214

9167180616

main91671-80616

9167180645

main91671-80645

9415180600

main94151-80600

22 parts on this diagram · 2 diagrams in section
