ALTERNATOR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

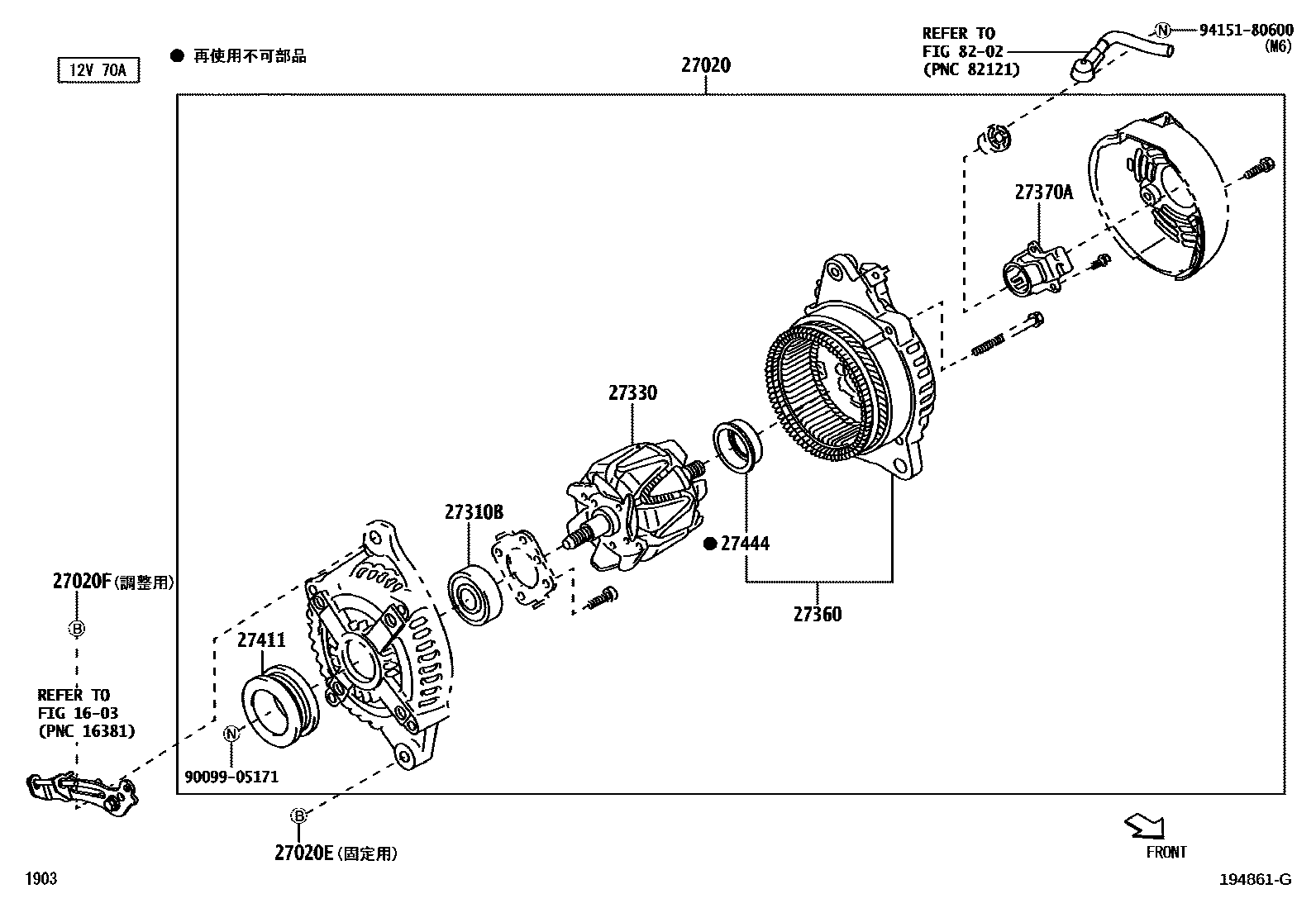

27020ALTERNATOR ASSY

main27060-B2150iKFV#..LA250,260..CG,CGT,CX,S201609-202001

27020EBOLT(FOR ALTERNATOR)

main91552-81075iKFV#..LA250,260..CG,CGT,CX,S201609-202001

27020FBOLT, NO.1(FOR ALTERNATOR)

main90041-20195iKFV#..LA250,260201609-201906

main90041-20345iKFV#..LA250,260201907-202306

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004C-37002iKFV#..LA250,260..CG,CGT,CX,S201609-202001

27330ROTOR ASSY, ALTERNATOR

main27330-B5010iKFV#..LA250,260..CG,CGT,CX,S201609-202001

27360COIL ASSY, ALTERNATOR

main27360-B2010iKFV#..LA250,260..CG,CGT,CX,S201609-202001

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-B2020iKFV#..LA250,260..CG,CGT,CX,S201609-202001

27411PULLEY, ALTERNATOR

main27411-B2010iKFV#..LA250,260..CG,CGT,CX,S201609-202001

27444PACKING, ALTERNATOR BEARING COVER

main27444-B1010iKFV#..LA250,260..CG,CGT,CX,S201609-202001

8202WIRING & CLAMP

→ Go to FIG 82-02

9009905171

main90099-05171

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
