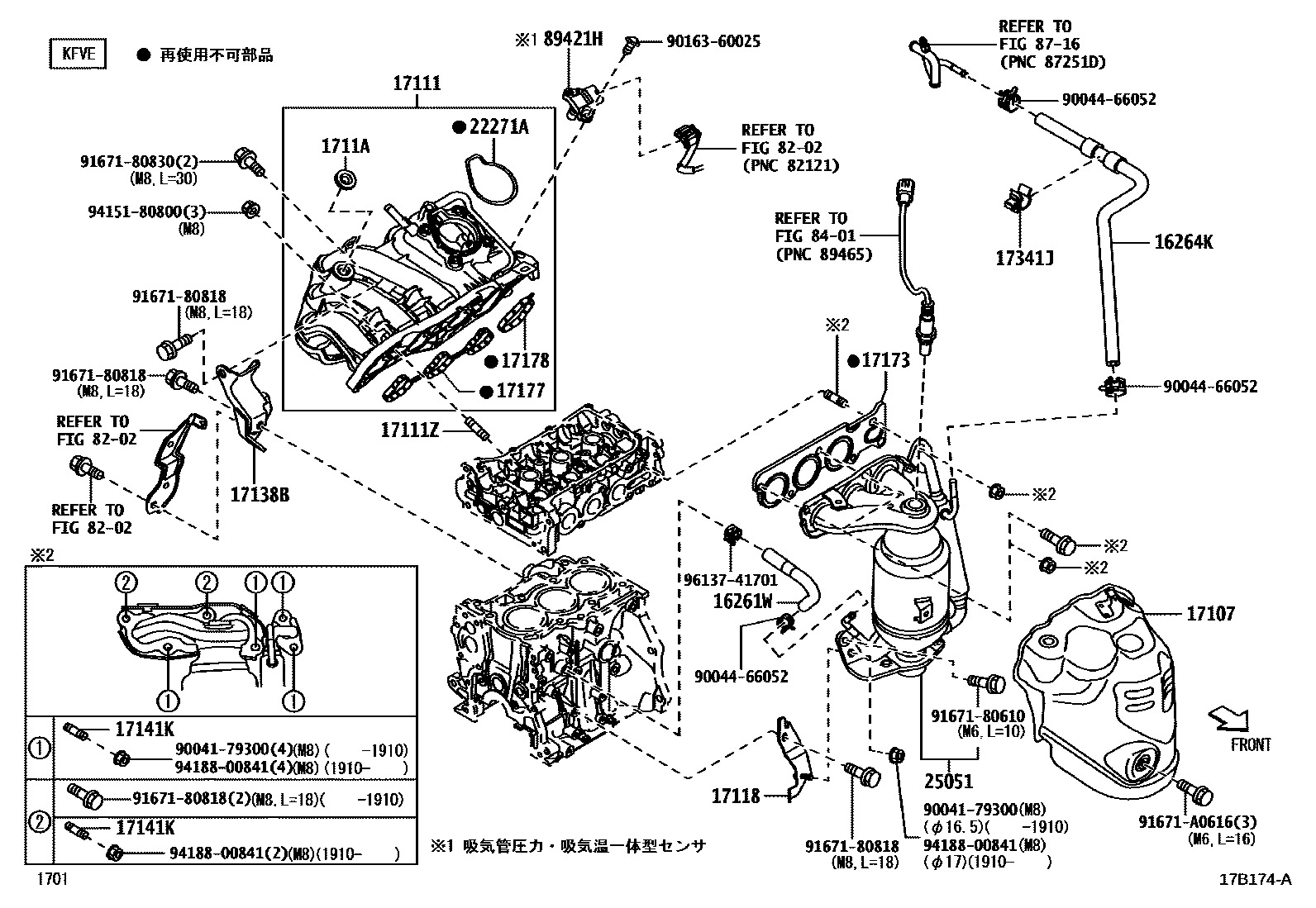

MANIFOLD

0001 1 0002 1ILLUST NO.1 OF 4 / ������� 0003 1ILLUST NO.2 OF 4 / ����������0004 1ILLUST NO.3 OF 4 / ����������0005 1ILLUST NO.3 OF 4 / ����������0006 1ILLUST NO.4 OF 4

16261WHOSE, WATER BY-PASS, NO.1

main16261-B2210iKFVE..LA250,260201609

16264KHOSE, WATER BY-PASS, NO.2

main16264-B2080iKFVE..LA250,260201609

17107INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT

main17107-B2030iKFVET..LA250,260201609

main17107-B2080iKFVE..LA250,260201609-201705

main17107-B2081iKFVE..LA250,260201706-201908

main17107-B2082iKFVE..LA250,260201909

17111MANIFOLD, INTAKE

main17120-B2081iKFVET..LA250,260201609-202207

main17120-B2091iKFVE..LA250,260201609-202207

main17120-B2170iKFVET..LA250,260202207

main17120-B2180iKFVE..LA250,260202207

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90041-26003×2iKFVE..LA250,260; KFVET..LA250,260201609-202006

main90041-26012×3iKFVE..LA250,260; KFVET..LA250,260202007

17118STAY, MANIFOLD

main17118-B2020iKFVET..LA250,260201609

main17118-B2080iKFVE..LA250,260201609-201709

main17118-B2081iKFVE..LA250,260201710

1711AGROMMET

main90044-80676iKFV#..LA250,260201609

17138BSTAY, INTAKE MANIFOLD

main17138-B2050iKFV#..LA250,260201609

17141MANIFOLD, EXHAUST

main17104-B2011iKFVET..LA250,260201609

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90041-16487iKFVE..LA250,260; KFVET..LA250,260201609

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-B2021iKFVET..LA250,260201609

main17173-B2060iKFVE..LA250,260201609

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B2040iKFV#..LA250,260201609

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-B2010iKFVE..LA250,260201609

17341JCLAMP, HOSE

main90044-64886×2iKFVE..LA250,260201609

22271AGASKET, THROTTLE BODY

main22271-B2030iKFV#..LA250,260201609

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-B2340iKFVE..LA250,260201609-202008

main25051-B2410iKFVET..LA250,260201609

main25051-B2460iKFVE..LA250,260202008

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

89421HSENSOR, VACUUM

main89421-B2020iLA250,260..CGT,FGT,S201609

main89421-B2040iLA250,260..CG,CX,FG,FX201609

9004179300

main90041-79300

9004466052

main90044-66052

9016360025

main90163-60025

9167180610

main91671-80610

9167180818

main91671-80818

9167180830

main91671-80830

91671A0616

main91671-A0616

9415180800

main94151-80800

9418800841

main94188-00841

9613741701

main96137-41701

30 parts on this diagram · 6 diagrams in section
