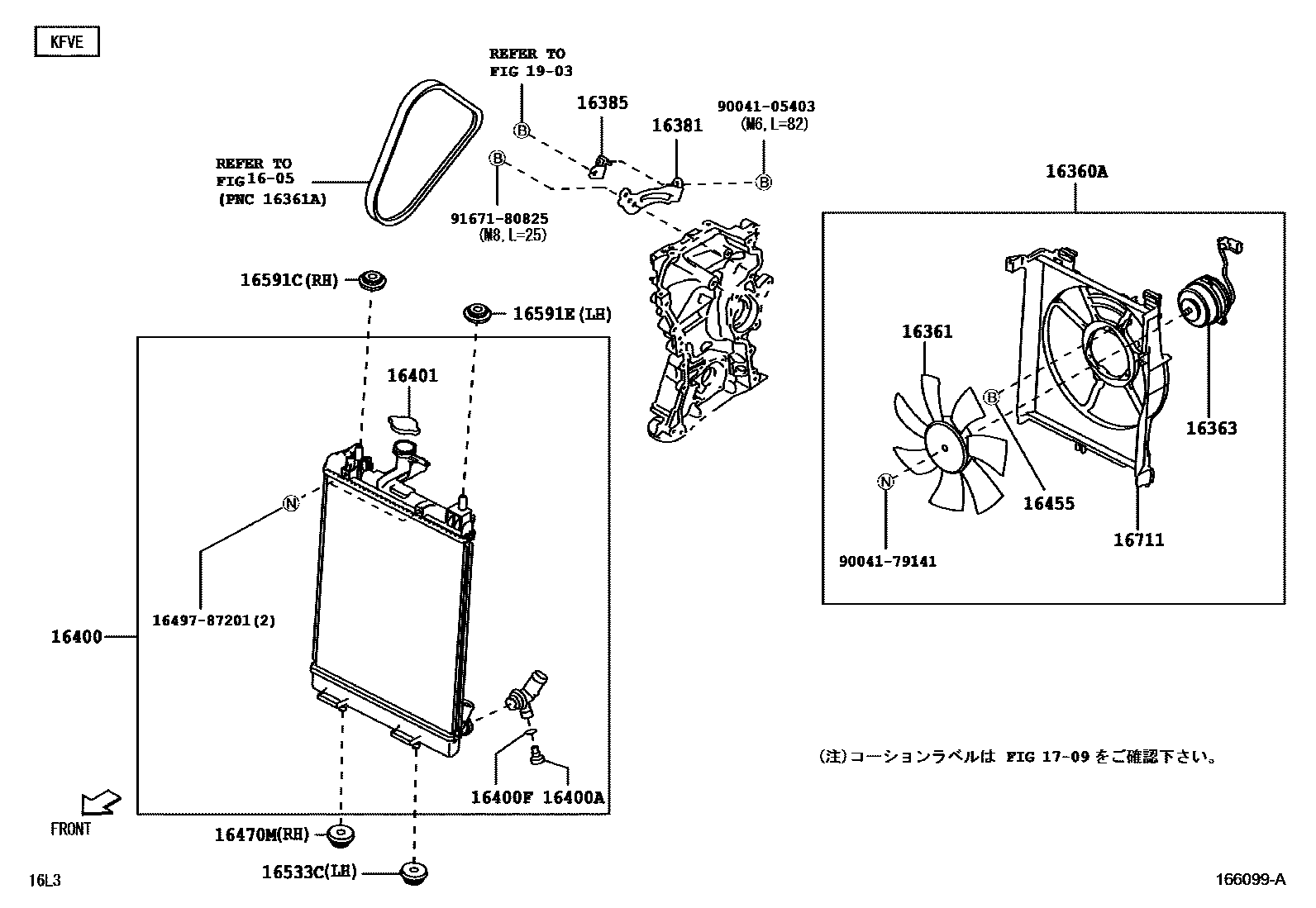

RADIATOR & WATER OUTLET

0001 1RADIATOR 0002 1RADIATOR HOSE 0003 1RADIATOR 0004 1RADIATOR HOSE

1605V-BELT

→ Go to FIG 16-05

16360AFAN ASSY, W/MOTOR

main16360-B2120iKFVE..LA250,260201609-202304

main16360-B2121iKFVE..LA250,260202305

main16360-B2200iKFVET..LA250;KFVET..LA260..FGT,S;KFVET..LA260..CGT..PS2201609-202304

main16360-B2201iKFVET..LA250,260202305

main16360-B2210iKFVET..LA260..CGT201609-201710

16361FAN

main16361-B2030iKFVET..LA260..CGT201609-201710

main16361-B2070iKFVE..LA250,260201609

main16361-B2080iKFVET..LA250;KFVET..LA260..FGT,S;KFVET..LA260..CGT..PS2201609

16363MOTOR, COOLING FAN

main16363-B2040iKFVE..LA250,260201609

main16363-B2060iKFVET..LA250,260201609

16381BAR, FAN BELT ADJUSTING

main16381-B2011iKFV#..LA250,260201609-202306

16385SLIDER, FAN BELT ADJUSTING

main16385-B2021iKFV#..LA250,260201609

16400RADIATOR ASSY

main16400-B2360iKFVET..LA260..CGT201609-201710

main16400-B2381iKFVE..LA250,260201609-202306

main16400-B2390iKFVET..LA250;KFVET..LA260..FGT,S201609-202306

main16400-B2410iKFVET..LA260..CGT201710-201804

main16400-B2411iKFVET..LA260..CGT201805-202001

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-B2020iKFV#..LA250,260201609

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-B2010iKFV#..LA250,260201609

16401CAP SUB-ASSY, RADIATOR

main16401-B2010iKFV#..LA250,260201609

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main16672-87201×3iKFV#..LA250,260201609

16470TANK ASSY, RADIATOR RESERVE

main16470-B2041iKFV#..LA250,260201609-201807

main16470-B2042iKFV#..LA250,260201808

16470MGROMMET

main90044-80592iKFV#..LA250,260201609

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80592iKFV#..LA250,260201609

16591CGROMMET(FOR RADIATOR PIPE)

main90044-80621iKFV#..LA250,260201609

16591EGROMMET(FOR RADIATOR PIPE)

main90044-80621iKFV#..LA250,260201609

16711SHROUD, FAN

main16711-B2080iKFVET..LA260..CGT201609-201710

main16711-B2110iKFV#..LA250;KFVET..LA260..CGT..PS2;KFV#..LA260..CG,CX,FG,FGT,FX,S201609

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

1903ALTERNATOR

→ Go to FIG 19-03

1649787201INLET SUB-ASSY

main16497-87201

9004105403

main90041-05403

9004179141

main90041-79141

9167180825

main91671-80825

23 parts on this diagram · 4 diagrams in section
