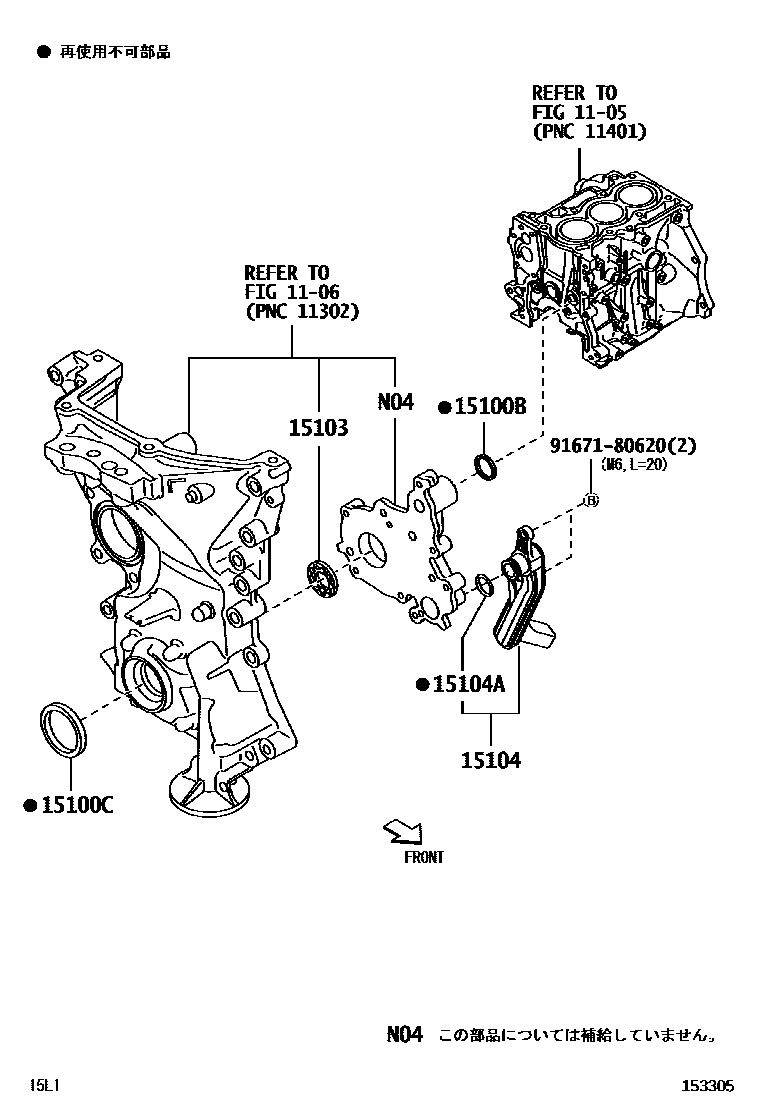

ENGINE OIL PUMP

1105CYLINDER BLOCK

→ Go to FIG 11-05

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15100BRING, O(FOR OIL PUMP)

main90043-01325iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

15100CSEAL(FOR OIL PUMP)

main90043-11438iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

15103GEAR SET, OIL PUMP

main15103-B2011iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

15104STRAINER SUB-ASSY, OIL

main15104-B2011iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

15104ARING, O(FOR OIL STRAINER)

main90043-01324iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

9167180620

main91671-80620

8 parts on this diagram · 1 diagram in section
