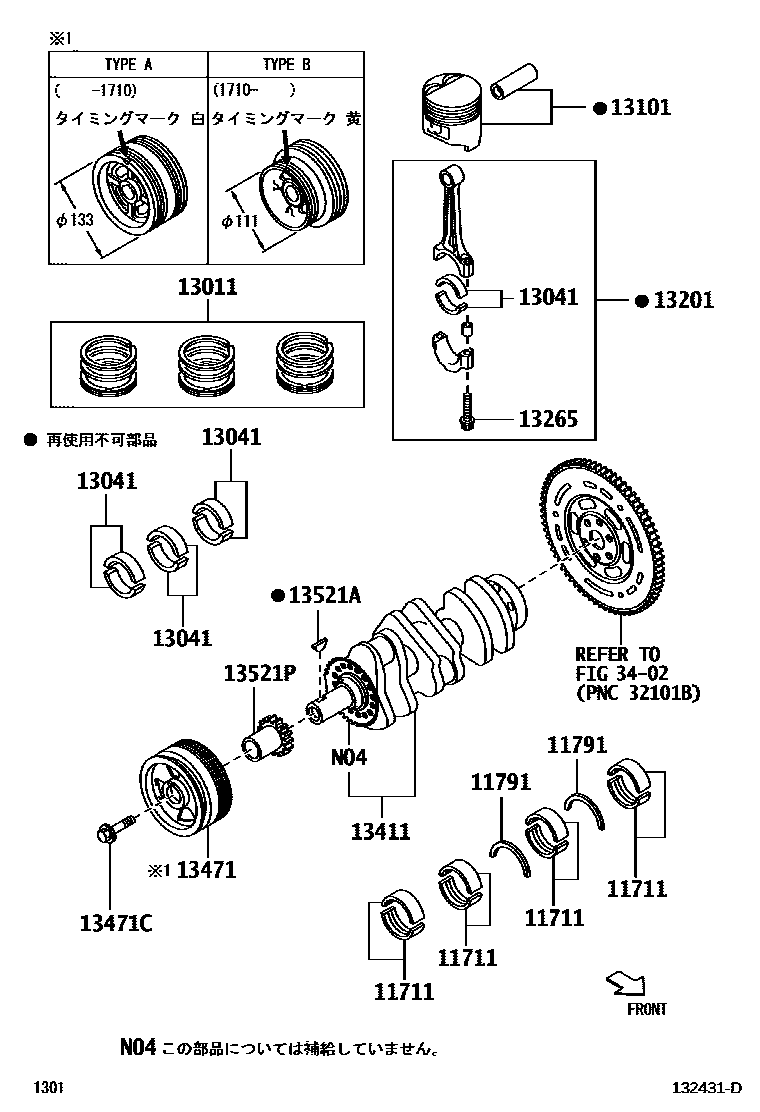

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-B2011-02×4iKFV#..LA250,260201609-201903

main11701-B2011-03×4iKFV#..LA250,260201609-201903

main11701-B2011-04×4iKFV#..LA250,260201609-201903

main11701-B2011-05×4iKFV#..LA250,260201609-201903

main11701-B2040-02×4iKFV#..LA250,260201903

main11701-B2040-03×4iKFV#..LA250,260201903

main11701-B2040-04×4iKFV#..LA250,260201903

main11701-B2040-05×4iKFV#..LA250,260201903

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2010×2iKFV#..LA250..FG,FGT,FX;KFV#..LA260..FG,FGT,FX;KFV#..LA250..(CG,CGT,CX,S)..PS1;KFV#..LA260..(CG,CGT,CX,S)..PS1201609

13011RING SET, PISTON

main13011-B2043iKFV#..LA250,260201609-202108

main13011-B2150iKFV#..LA250,260202108

13041BEARING, CONNECTING ROD

main13041-B2010-01×3iKFV#..LA250,260201609

main13041-B2010-02×3iKFV#..LA250,260201609

main13041-B2010-03×3iKFV#..LA250,260201609

13101PISTON SUB-ASSY, W/PIN

main13101-B2100×3iKFVET..LA250,260..(CGT,S)..PS2201609-202001

main13101-B2232×3iKFVE..LA250,260..(CG,CX)..PS2201609-202001

13201ROD SUB-ASSY, CONNECTING

main13201-B9060×3iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

13265BOLT, CONNECTING ROD

main13265-B9020×6iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

13411CRANKSHAFT

main13401-B2010iKFV#..LA250,260201609-201902

main13401-B2050iKFV#..LA250,260..CG,CGT,CX,S201903-202001

13471PULLEY, CRANKSHAFT

main13470-B2011iKFV#..LA250,260201609-201710

main13470-B2060iKFV#..LA250,260..CG,CGT,CX,S201710-202001

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-05369iKFV#..LA250,260201609-201812

main90041-05587iKFV#..LA250,260..CG,CGT,CX,S201901-202001

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90042-80034iKFV#..LA250..(CG,CGT,CX,S)..PS2;KFV#..LA260..(CG,CGT,CX,S)..PS2201609-202001

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2010iKFVET..LA250,260..(CGT,S)..PS2201609-202001

main13521-B2020iKFVE..LA250,260..FG,FX;KFVE..LA250,260..(CG,CX)..PS1201609

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02
