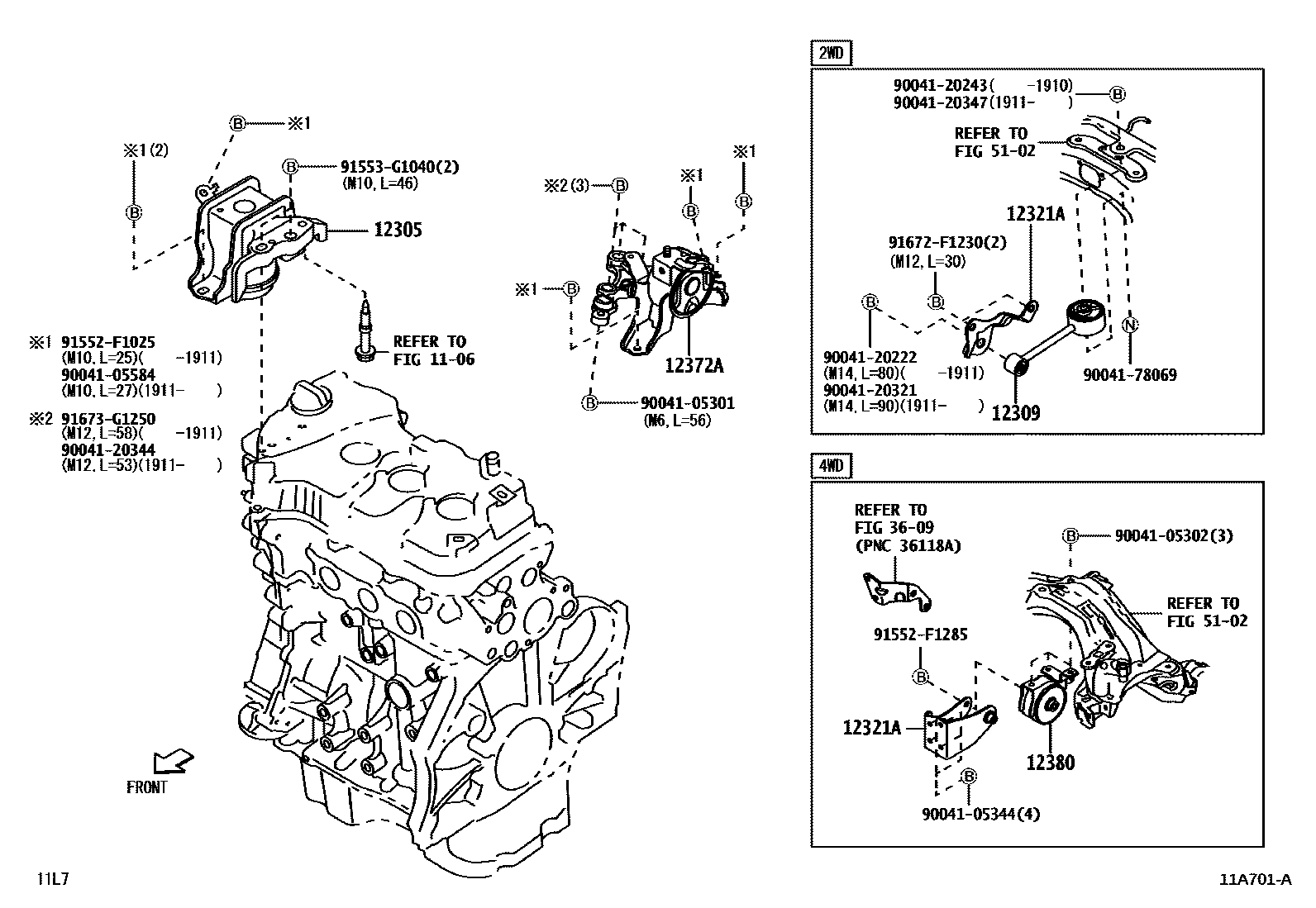

MOUNTING

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-B2210iKFV#..LA250,260..FG,FGT,FX201609

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-B2020iKFV#..LA250..CG,CGT,CX,S201609-202001

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-B2030iKFV#..LA250..FG,FGT,FX201609

main12321-B2090iKFV#..LA260..CG,CGT,CX,S201609-202001

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12306-B2120iKFV#..LA250,260..CG,CGT,CX,S201609-202001

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-B2072iKFV#..LA260201609-202306

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

9004105301

main90041-05301

9004105302

main90041-05302

9004105344

main90041-05344

9004105584

main90041-05584

9004120222

main90041-20222

9004120243

main90041-20243

9004120321

main90041-20321

9004120344

main90041-20344

9004120347

main90041-20347

9004178069

main90041-78069

91552F1025

main91552-F1025

91552F1285

main91552-F1285

91553G1040

main91553-G1040

91672F1230

main91672-F1230

91673G1250

main91673-G1250

23 parts on this diagram · 1 diagram in section
