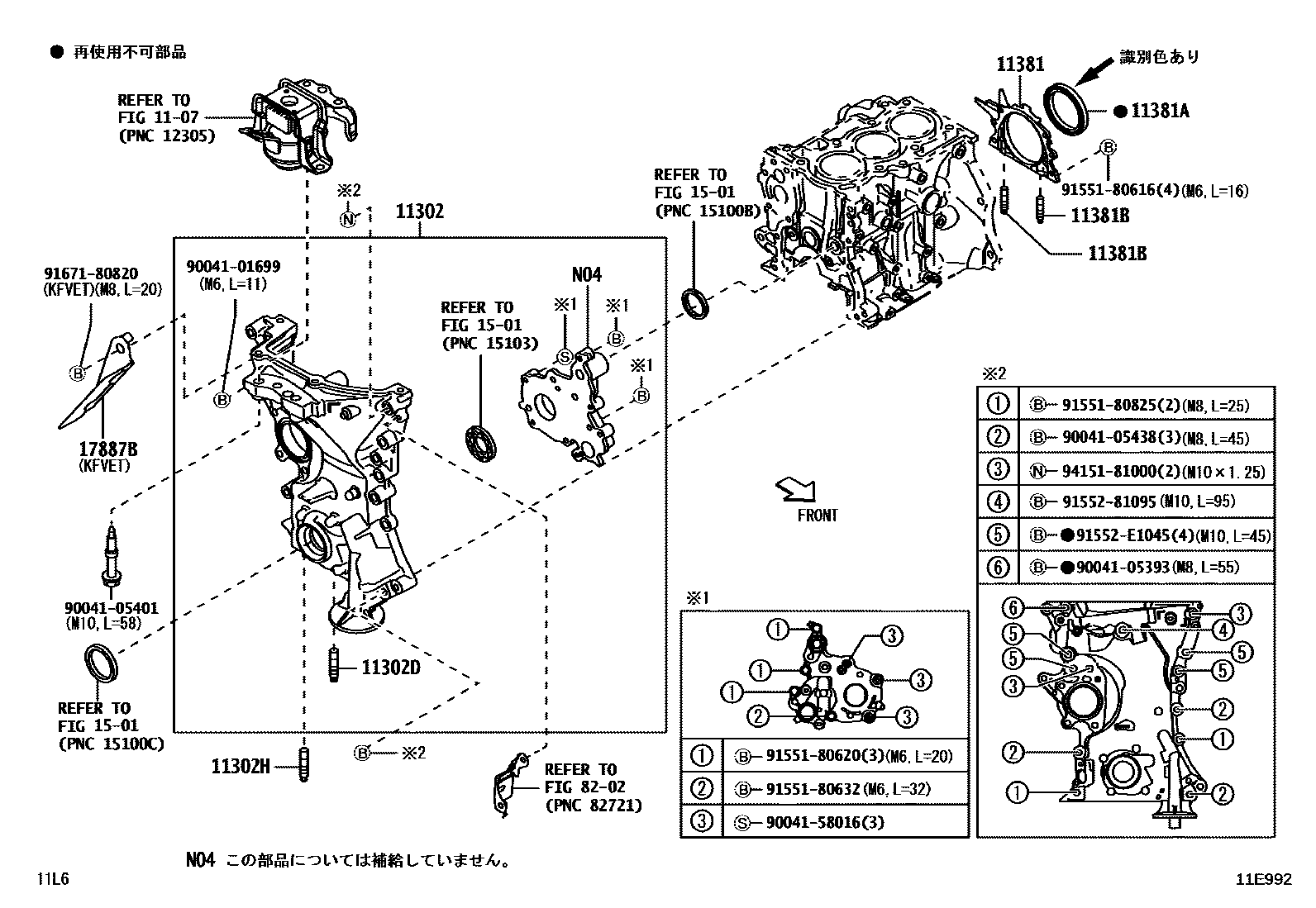

TIMING GEAR COVER & REAR END PLATE

1107MOUNTING

→ Go to FIG 11-07

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-B2054iKFVE..LA250,260201609-202306

main11310-B2064iKFVET..LA250,260201609-202306

11302DBOLT, STUD(FOR TIMING GEAR COVER)

main90041-26005iKFV#..LA250,260..CG,CGT,S201609-202001

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90041-26006iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11381RETAINER, ENGINE REAR OIL SEAL

main11381-B2030iKFV#..LA250,260201609-202004

main11381-B2040iKFV#..LA250,260202005

11381ASEAL, ENGINE REAR OIL

main90043-11434iKFVET..LA250,260..CGT,S201609-202001

main90043-11439iKFVE..LA250,260..CG,CX201609-202001

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90041-26006×2iKFV#..LA250,260..CG,CGT,CX,S201609-202001

1501ENGINE OIL PUMP

→ Go to FIG 15-01

17887BCOVER, AIR CLEANER HOSE

main17887-B2010iKFVET..LA250,260..CGT,S201609-202001

8202WIRING & CLAMP

→ Go to FIG 82-02

9004101699

main90041-01699

9004105393

main90041-05393

9004105401

main90041-05401

9004105438

main90041-05438

9004158016

main90041-58016

9155180616

main91551-80616

9155180620

main91551-80620

9155180632

main91551-80632

9155180825

main91551-80825

9155281095

main91552-81095

91552E1045

main91552-E1045

9167180820

main91671-80820

9415181000

main94151-81000

23 parts on this diagram · 1 diagram in section
