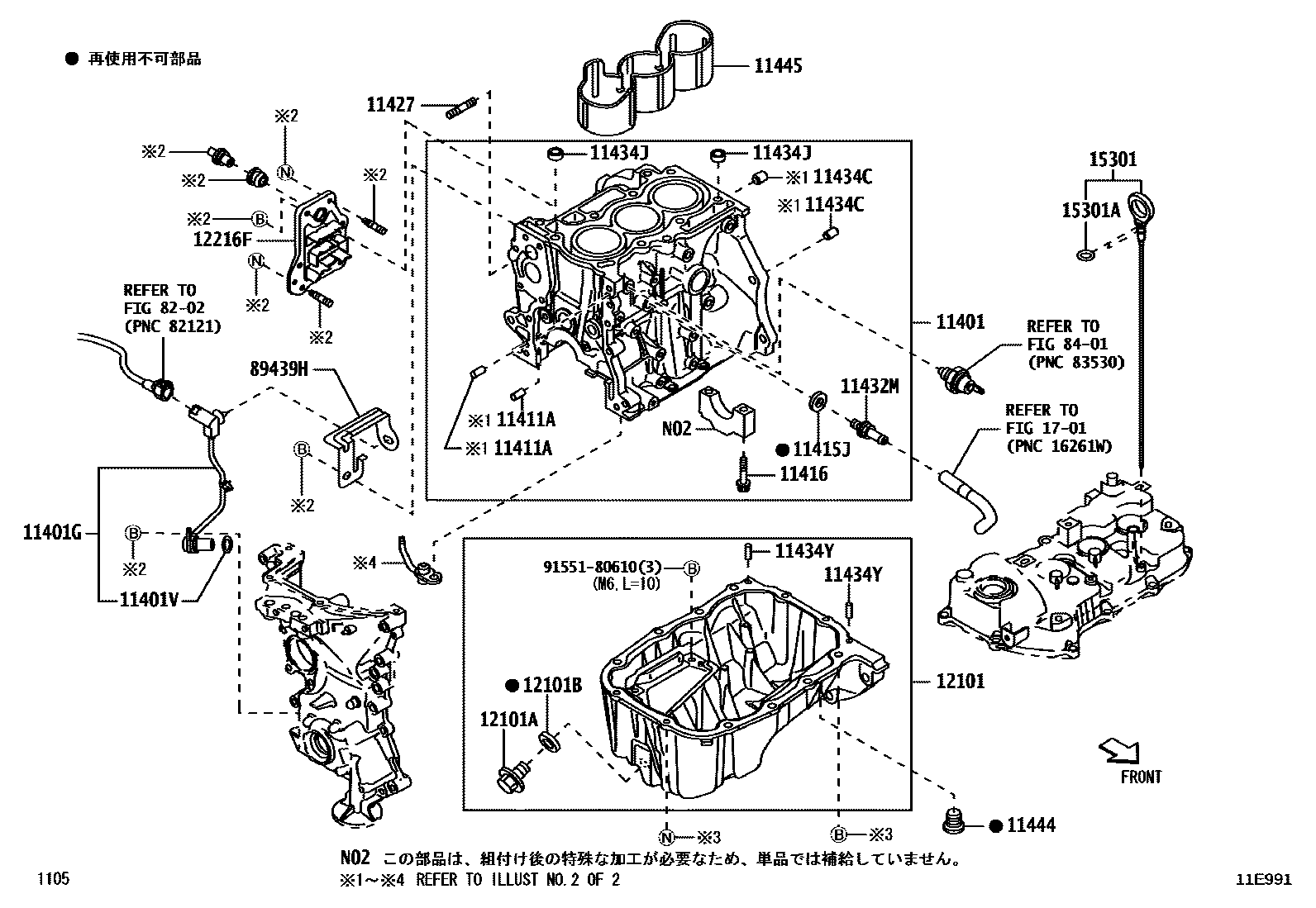

CYLINDER BLOCK

0001 1ILLUST NO.1 OF 2 0002 1ILLUST NO.2 OF 2

11401BLOCK SUB-ASSY, CYLINDER

main11401-B2143iKFVET..LA250,260..CGT,S201609-202001

main11401-B2190iKFVE..LA250,260..CG,CX201609-202001

11401GSENSOR, CRANK POSITION

main19311-B2030iKFV#..LA250,260201609-202306

11401VO-RING, CRANK POSITION SENSOR

main9004C-30007iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

main90042-50122×4iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11415JGASKET(FOR DRAIN COCK)

main90044-30279iKFV#..LA250,260..FG,FGT,FX201609

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90041-05368×8iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11427BOLT, STUD(FOR TIMING CHAIN COVER SET)

main90041-16498iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11432MUNION(FOR CYLINDER BLOCK)

main90044-04158iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90042-50207×2iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90042-53013×2iKFV#..LA250,260..FG,FGT,FX201609

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-06003×2iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11444PLUG, HOLE

main11444-B2010×2iKFV#..LA250,260..CG,CGT,CX,S201609-202001

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-B2030iKFV#..LA250,260..CG,CGT,CX,S201609-202001

12101PAN SUB-ASSY, OIL

main12101-B2025iKFV#..LA250,260..CG,CGT,CX,S201609-202001

12101APLUG(FOR OIL PAN DRAIN)

main90043-41087iKFV#..LA250,260..CG,CGT,CX,S201609-202001

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90044-30281iKFV#..LA250,260..CG,CGT,CX,S201609-202001

12216FPLATE, VENTILATION BAFFLE

main12216-B2021iKFV#..LA250,260..CG,CGT,CX,S201609-202001

15301GAGE SUB-ASSY, OIL LEVEL

main15301-B2061iKFV#..LA250,260..CG,CGT,CX,S201609-202001

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005×2iKFV#..LA250,260..CG,CGT,CX,S201609-202001

1701MANIFOLD

→ Go to FIG 17-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89439HBRACKET, SENSOR

main89439-B2071iLA250,260..CG,CGT,CX,S201609-202001

9155180610

main91551-80610

24 parts on this diagram · 2 diagrams in section
