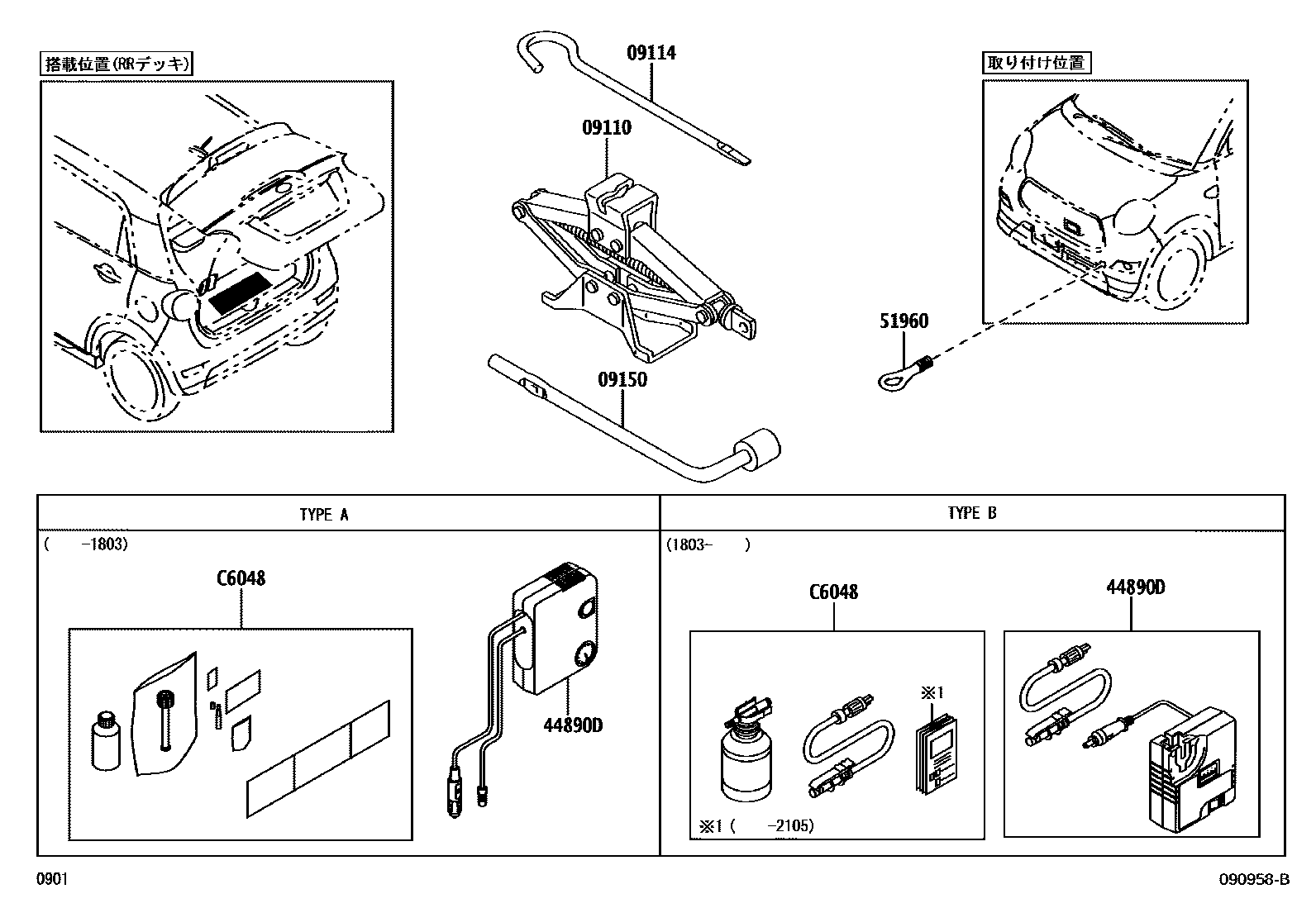

STANDARD TOOL

09110JACK ASSY

main09111-B2010iLA250,260201609-201712

main09111-B2011iLA250,260..CG,CGT,CX,S201801-202001

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-B1010iLA250,260..CG,CGT,CX,S201609-202001

09150WRENCH, HUB NUT BOX

main09151-B1010iLA250,260..CG,CGT,CX,S201609-202001

44890DCOMPRESSOR ASSY, AIR

main44890-B1010iLA250,260201609-201803

main44890-B2030iLA250,260201803

51960HOOK ASSY, FRONT

main51961-B1040iLA250,260..CG,CGT,CX,S201609-202001

C6048REPAIR SET, TIRE

mainC6048B2020iLA250,260201609-201610

mainC6048B2021iLA250,260201611-201803

mainC6048B9010iLA250,260201803-202001

mainC6048B9030iLA250,260202002-202104

mainC6048B9031iLA250,260202105

6 parts on this diagram · 1 diagram in section
