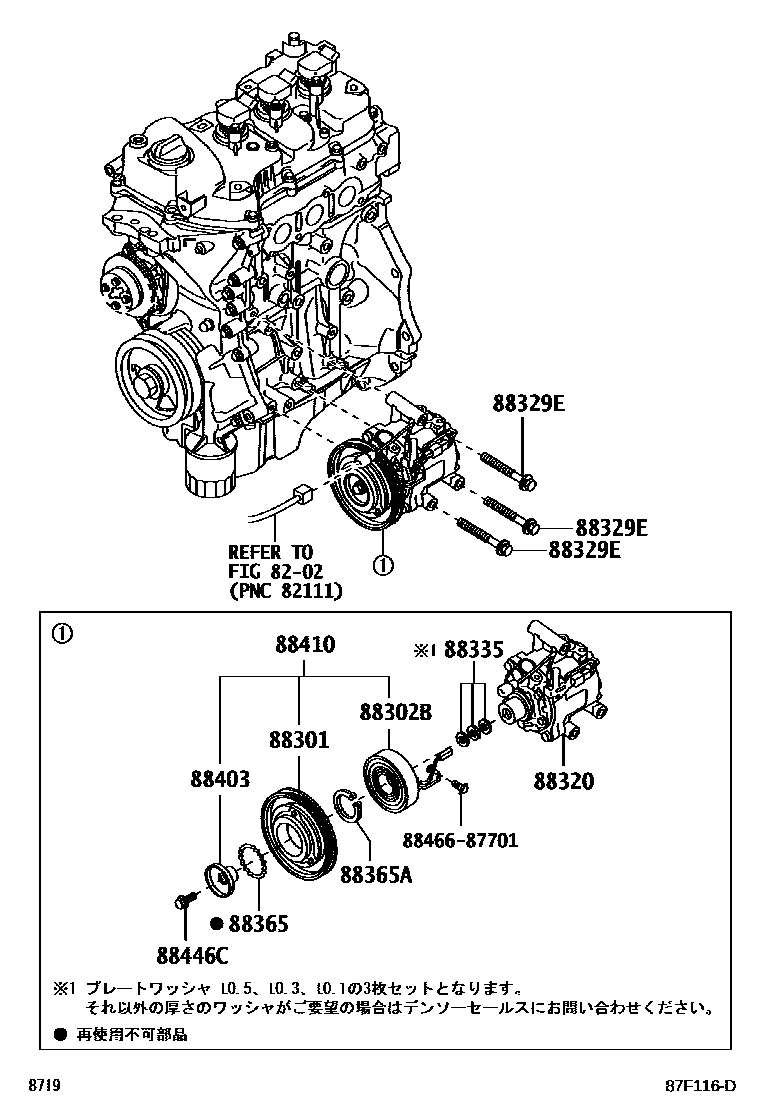

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

8202WIRING & CLAMP

→ Go to FIG 82-02

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B2020iLA700,710201507-201605

main88412-B2050iLA700,710201605-201801

main88412-B2060iLA700,710201801

88302BSTATOR, MAGNET CLUTCH

main88411-87264iLA700,710201507-201605

main88411-B1010iLA700,710201605

88320COMPRESSOR ASSY, COOLER

main88320-B2020iLA700,710..NTBO201507-201605

main88320-B2100iLA700,710..NTBO201605-201807

main88320-B2110iLA700,710..TBO201507-201605

main88320-B2120iLA700,710..TBO201605-201807

main88320-B2140iLA700,710..NTBO201808

main88320-B2150iLA700,710..TBO201808

88329EBOLT, COMPRESSOR, NO.1

main88899-12400×3iLA700,710201605

88335GASKET KIT, OVERHAUL

main88335-14020iLA700,710201605

88365RING, SNAP

main90099-07125iLA700,710201507-201605

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iLA700,710201605

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-97201iLA700,710201507-201605

main88403-B2020iLA700,710201605-201802

main88403-B2040iLA700,710201802

88410CLUTCH ASSY, MAGNET

main88410-B2050iLA700,710201507-201605

main88410-B2090iLA700,710201605-201801

main88410-B2100iLA700,710201801-201802

main88410-B2130iLA700,710201802

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iLA700,710201605

8846687701

main88466-87701

12 parts on this diagram · 3 diagrams in section
