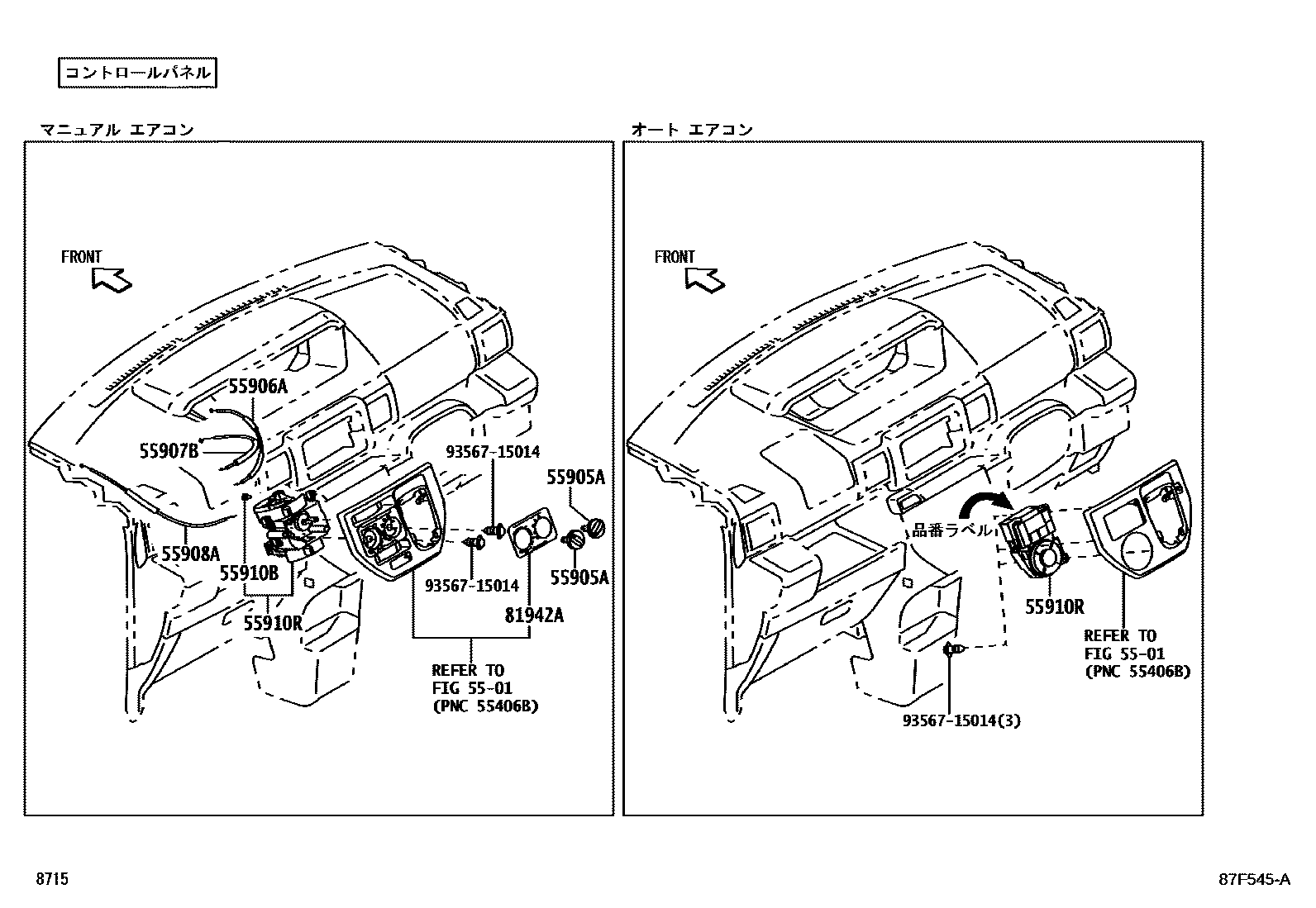

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������ ���� 0002 1������ 0003 1������ 0004 1���

5501

55905AKNOB, HEATER CONTROL

main55905-B2180iLA700..D201507-201605

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-B2220iLA700..D201507-201605

main55906-B2270iLA700..D201605

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-B2210iLA700..D201507-201605

main55907-B2260iLA700..D201605

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-B2220iLA700..D201507-201605

main55908-B2270iLA700..D201605

55910BBULB, HEATER CONTROL

main81936-B2040iLA700..D201507-201605

55910RCONTROL ASSY, HEATER

main55910-B2330iLA700..D201507-201602

sub55910-B2331

main55910-B2331iLA700..D201603-201605

main55910-B2540iLA700,710..G,L,X201507-201605

main55910-B2640iLA700,710..G,L201605-201810

sub55910-B2641

main55910-B2641iLA700,710..G,L201811-202105

main55910-B2642iLA700,710..G,L202105

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-B2370iLA700..D201507-201605

9356715014

main93567-15014

9 parts on this diagram · 4 diagrams in section
