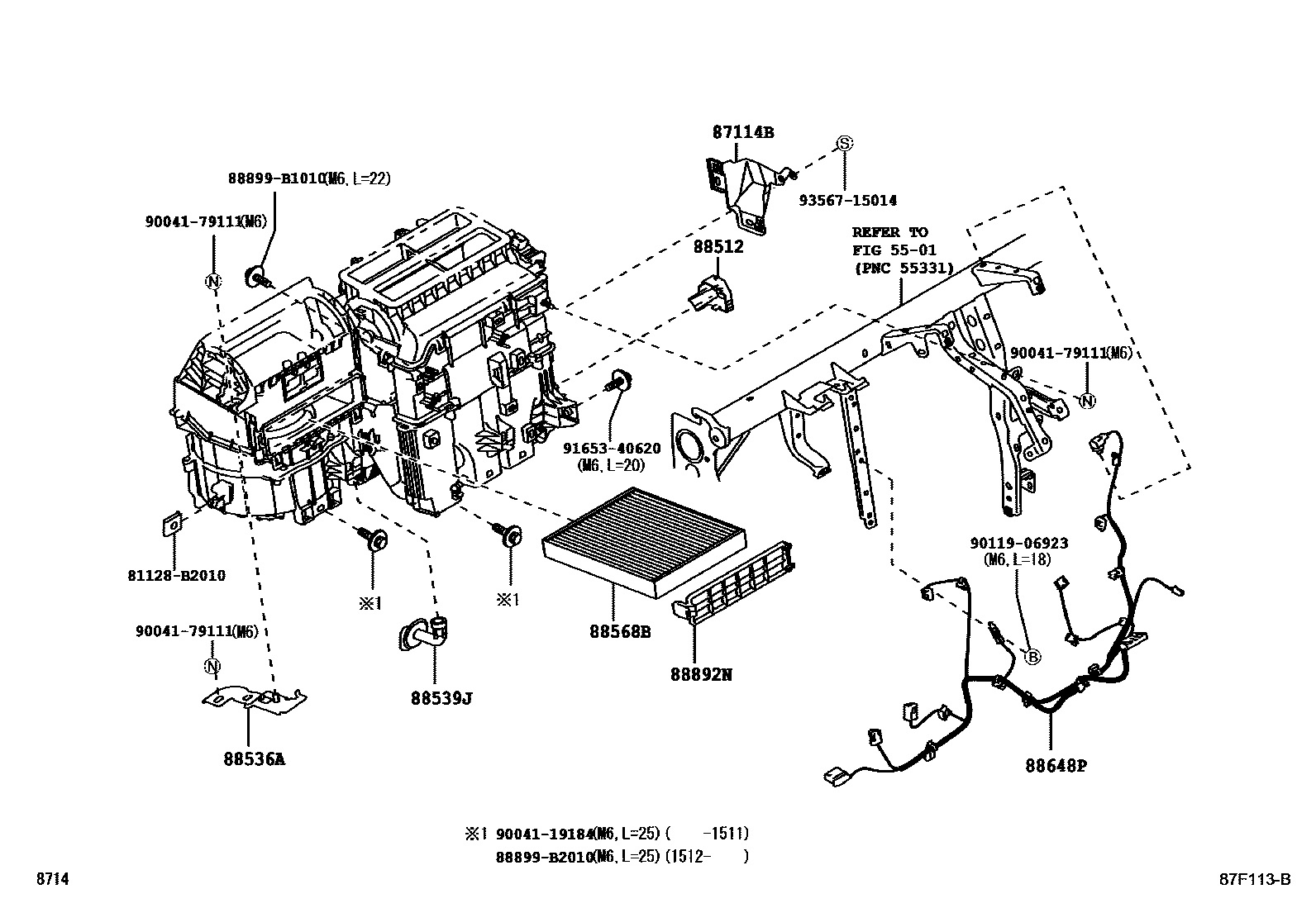

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1�������,�������� 0002 1����� ���� 0003 1��� ���� 0004 1�������,�������� 0005 1����� ���� 0006 1��� ���� 0007 1������� �����

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

87114BCOVER, HEATER

main87114-B2061iLA700,710201507-201605

main87114-B2070iLA700,710201605

88512DUCT, AIR

main87211-B2030iLA700,710201507-201605

main87211-B2090supersedes 87211-B2080iLA700; LA710201605

88536ABRACKET, COOLING UNIT, NO.2

main88688-B2190iLA700,710201507-201605

88539JHOSE, DRAIN COOLER

main88539-B2070iLA700,710201507-201605

main88539-B2101iLA700,710201605

88568BFILTER, AIR

main88568-B2030iLA700,710201605

main88568-B2070supersedes 88568-B2030iLA700,710..D,L,X; LA700,710..G201507-201605

88648PWIRE,AIR CONDITIONER,NO.1

main88648-B2520iLA700,710..G,L,X201507-201605

main88648-B2530iLA700..D201507-201605

main88648-B2630iLA700,710..G,L201605

main88648-B2640iLA700..D201605

88892NCOVER, COOLER, NO.2

main88892-B2020iLA700,710201507-201605

main88892-B2080iLA700,710201605

81128B2010NUT, HEADLAMP

main81128-B2010

88899B1010COVER, EVAPORATOR

main88899-B1010

88899B2010COVER, EVAPORATOR

main88899-B2010

9004119184

main90041-19184

9004179111

main90041-79111

9011906923

main90119-06923

9165340620

main91653-40620

9356715014

main93567-15014

16 parts on this diagram · 7 diagrams in section
