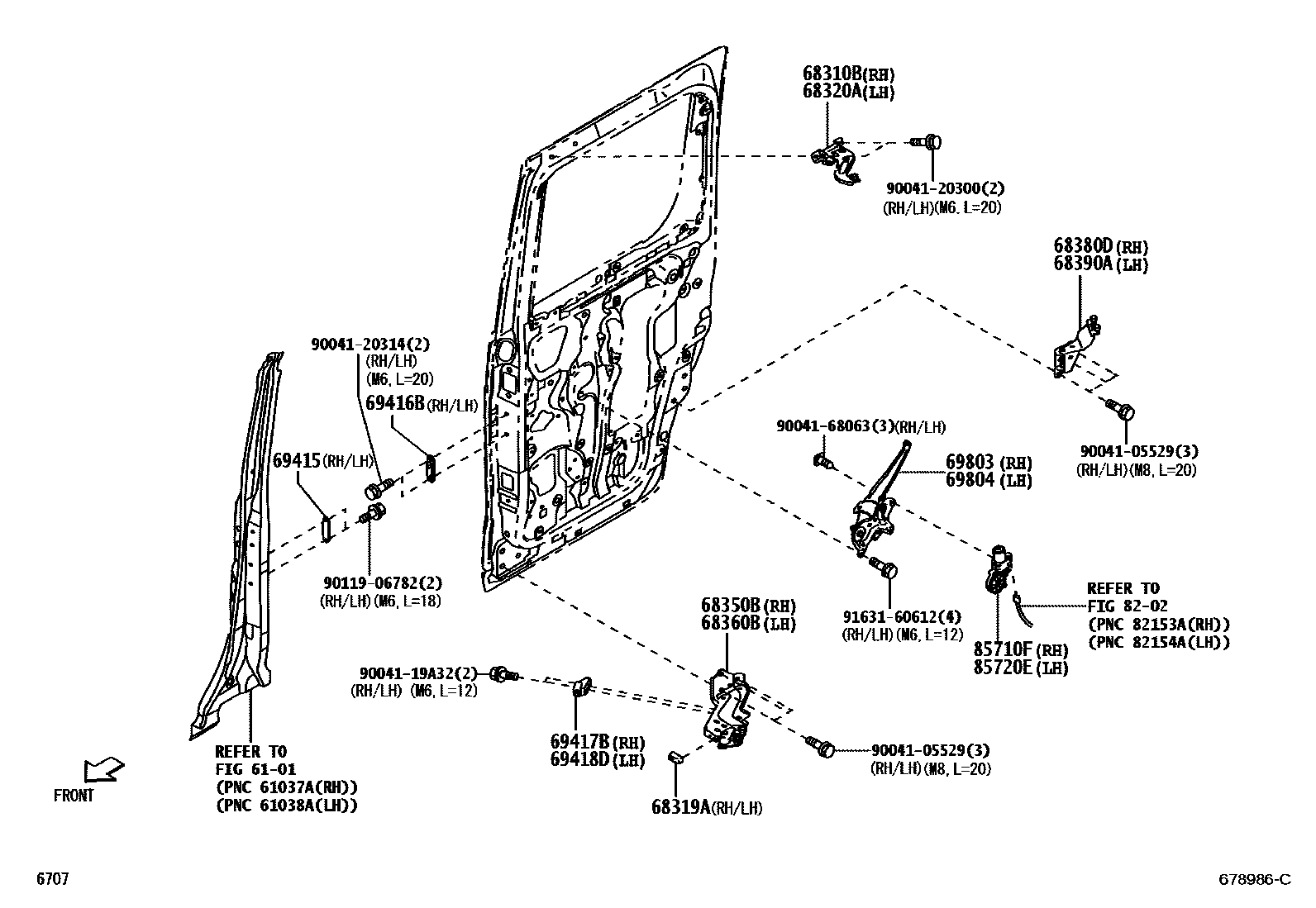

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-B2021iLA700,710201507-201603

main68310-B2022iLA700,710201603-201605

main68310-B2023iLA700,710201904

68319ASTOPPER, SLIDE DOOR LWR ROLLER

main68319-46011×2iLA700,710201605

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-B2051iLA700,710201605-201903

main68320-B2052iLA700,710201603-201605

main68320-B2053iLA700,710201904

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-B2020iLA700,710201605

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-B2040iLA700,710201605

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-B2030iLA700,710201507-201605

main68380-B2031iLA700,710201702

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-B2070iLA700,710201605-201701

main68390-B2071iLA700,710201702

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69046-46011×2iLA700,710201605

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69416-B2020×2iLA700,710201507-201605

69417BSTOPPER, SLIDE DOOR DOWN MALE, LOWER RH

main69417-B2030iLA700,710201605

main69417-B2040iLA700,710201603-201605

69418DSTOPPER, SLIDE DOOR DOWN MALE, LOWER LH

main69418-B2030iLA700,710201605

main69418-B2040iLA700,710201603-201605

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-B2100iLA700,710201605

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-B2120iLA700,710201605

8202WIRING & CLAMP

→ Go to FIG 82-02

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-B2110iLA700,710201605

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-B2160iLA700,710201605

9004105529

main90041-05529

9004119A32

main90041-19A32

9004120300

main90041-20300

9004120314

main90041-20314

9004168063

main90041-68063

9011906782

main90119-06782

9163160612

main91631-60612

24 parts on this diagram · 2 diagrams in section
