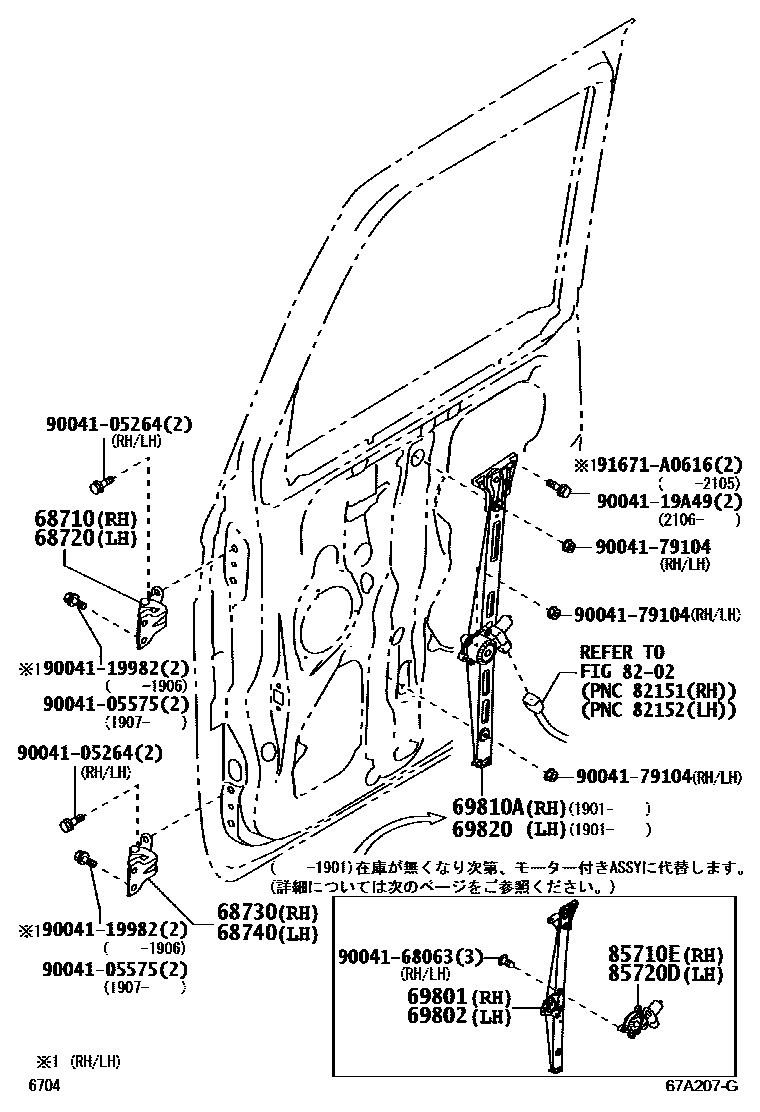

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-B2040iLA700,710201605

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-B2040iLA700,710201605

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-B2040iLA700,710201605

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-B2040iLA700,710201605

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-B2172iLA700,710201605-201901

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-B2212iLA700,710201605-201901

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-B2270iLA700,710201901

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-B2260iLA700,710201901

8202WIRING & CLAMP

→ Go to FIG 82-02

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-B2200iLA700,710201605-201901

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-B2150iLA700,710201605-201901

9004105264

main90041-05264

9004105575

main90041-05575

9004119982

main90041-19982

9004119A49

main90041-19A49

9004168063

main90041-68063

9004179104

main90041-79104

91671A0616

main91671-A0616

18 parts on this diagram · 2 diagrams in section
