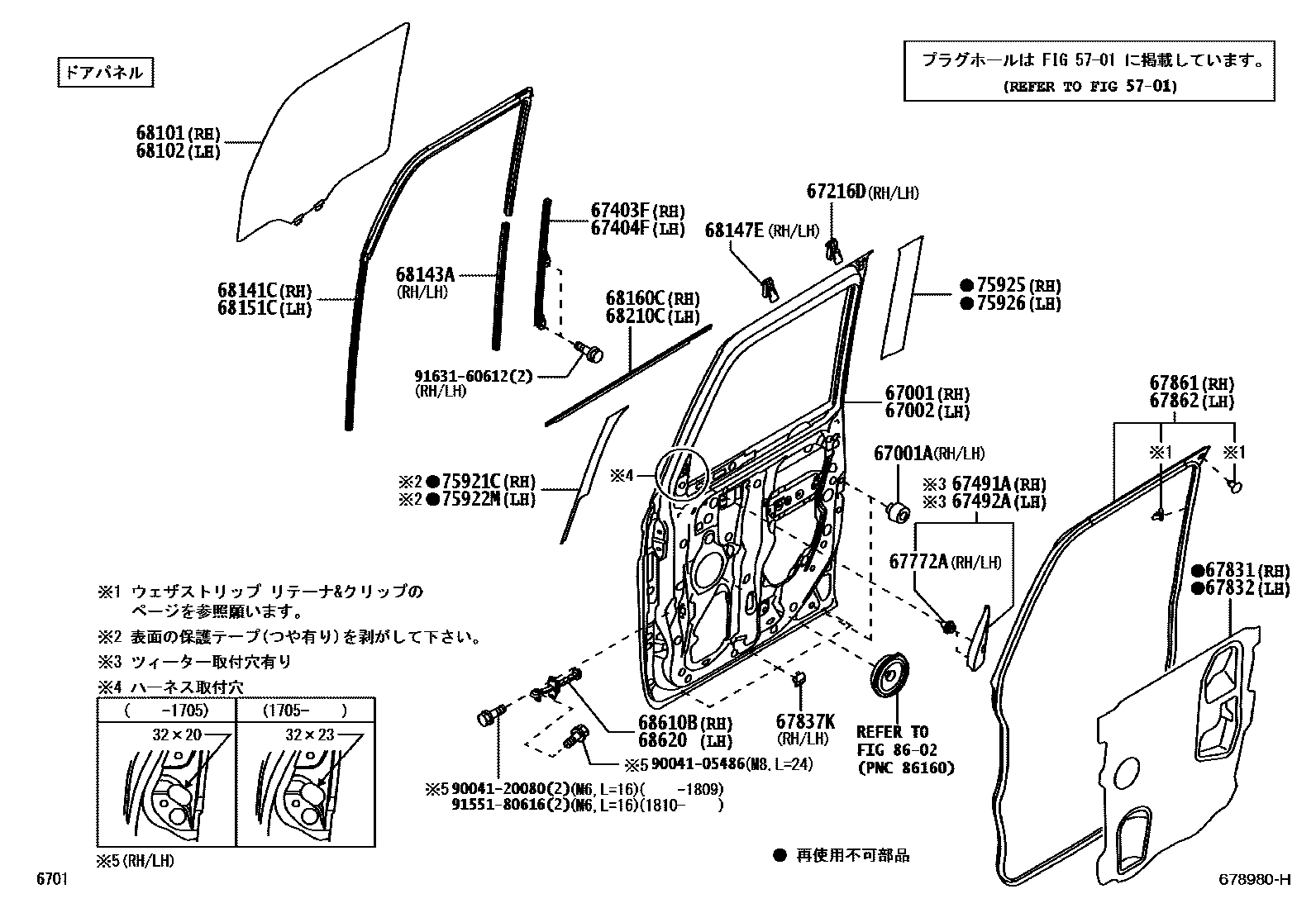

FRONT DOOR PANEL & GLASS
5701HOLE PLUG
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67216DSTOPPER, FRONT DOOR GLASS, UPPER NO.2
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67772ACAP, FRONT DOOR TRIM RETAINER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837KSEAL, FRONT DOOR VENT
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68143ARUN, FRONT DOOR GLASS, NO.2
68147ESTOP, FRONT DOOR GLASS, UPPER
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
TUYAKESI BLACK DUMMYCOLOR,B58 ,B69 ,B82 ,B87 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,W25 ,X81 ,X85 ,X87 ,XA3 ,XE1 ,XJ0 ,XK6 ,XK7 ,XK8; TUYAKESI BLACK DUMMYCOLOR,XK9
75922MTAPE, BLACK OUT, NO.1 LH
TUYAKESI BLACK DUMMYCOLOR,B58 ,B69 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,X81 ,X85 ,X87 ,XA3 ,XE1
75925TAPE, BLACK OUT, NO.3 RH
TUYAKESI BLACK DUMMYCOLOR,B58 ,B69 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,X81 ,X85 ,X87 ,XA3 ,XE1
75926TAPE, BLACK OUT, NO.3 LH
TUYAKESI BLACK DUMMYCOLOR,B58 ,B69 ,G55 ,G57 ,R59 ,R71 ,S38 ,W24 ,X81 ,X85 ,X87 ,XA3 ,XE1
8602SPEAKER
9004105486
main90041-05486
9004120080
main90041-20080
9155180616
main91551-80616
9163160612
main91631-60612
34 parts on this diagram · 3 diagrams in section
