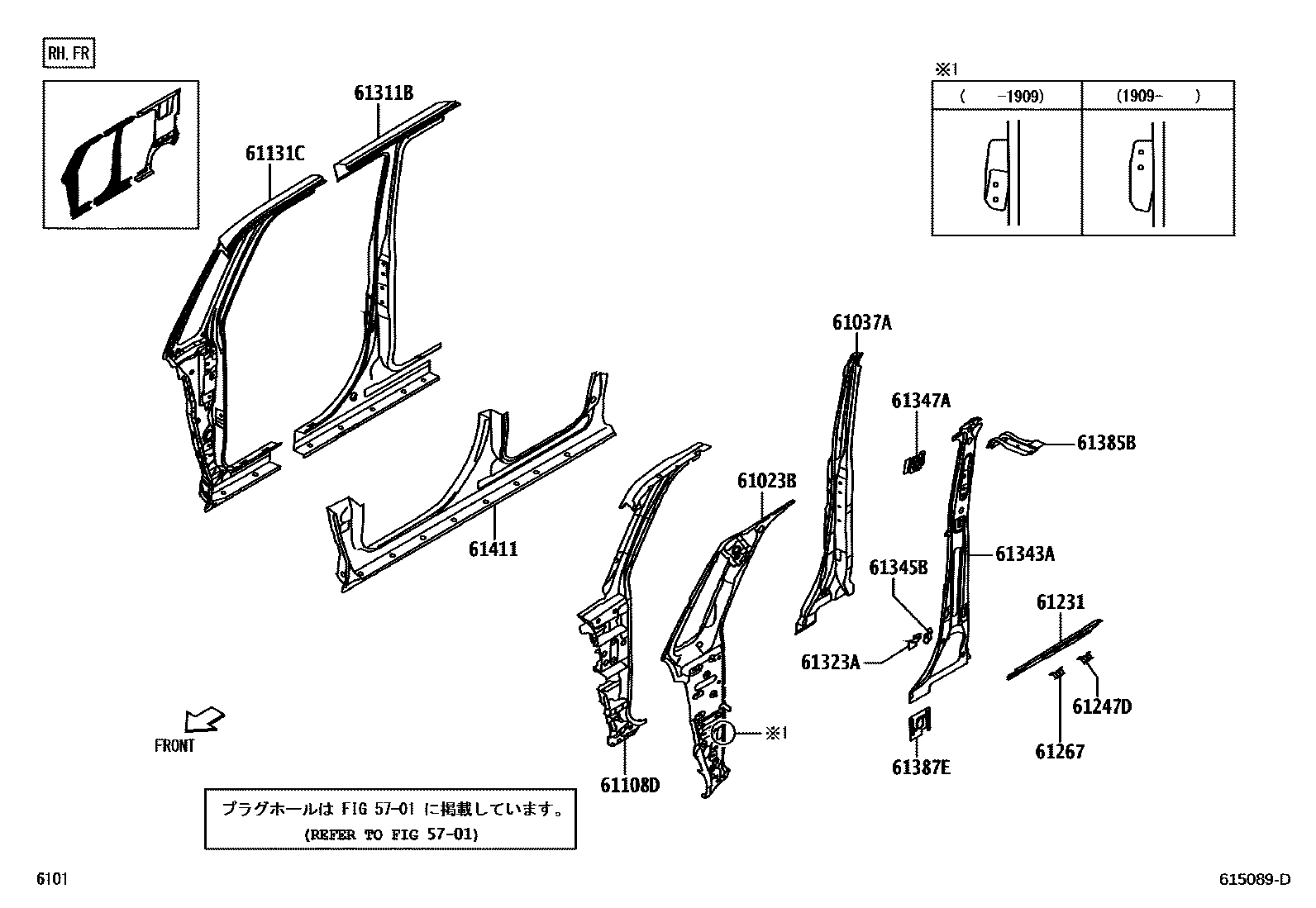

SIDE MEMBER

0001 1RH,FR 0002 1RH,RR 0003 1LH,FR 0004 1LH,RR 0005 1

5701HOLE PLUG

→ Go to FIG 57-01

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-B2270iLA700,710201605-201909

main61023-B2330iLA700,710201909

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-B2400iLA700,710201605

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-B2240iLA700,710201605-202110

main61108-B2900iLA700,710202110

61131CPILLAR, FRONT BODY, OUTER RH

main61131-B2410iLA700,710201507-201605

61231RAIL, ROOF SIDE, INNER RH

main61231-B2300iLA700,710201605

61247DBRACKET, ASSIST GRIP, RH

main61237-B2070iLA700,710201605

61267REINFORCEMENT, ASSIST GRIP

main61235-B2080iLA700,710201507-201605

61311BPILLAR, CENTER BODY, OUTER RH

main61311-B2350iLA700,710201605

61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH

main61323-B2130iLA700,710201605

61343APILLAR, CENTER BODY, INNER RH

main61343-B2240iLA700,710201605

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-B2040iLA700,710201605

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-B2190iLA700,710201605

61385BEXTENSION, CENTER BODY PILLAR, INNER RH

main61385-B2070iLA700,710201507-201605

61387EEXTENSION, CENTER BODY PILLAR, LOWER RH

main61387-B2020iLA700,710201605

61411PANEL, ROCKER, OUTER RH

main61411-B2460iLA700,710201507-201605

16 parts on this diagram · 5 diagrams in section
