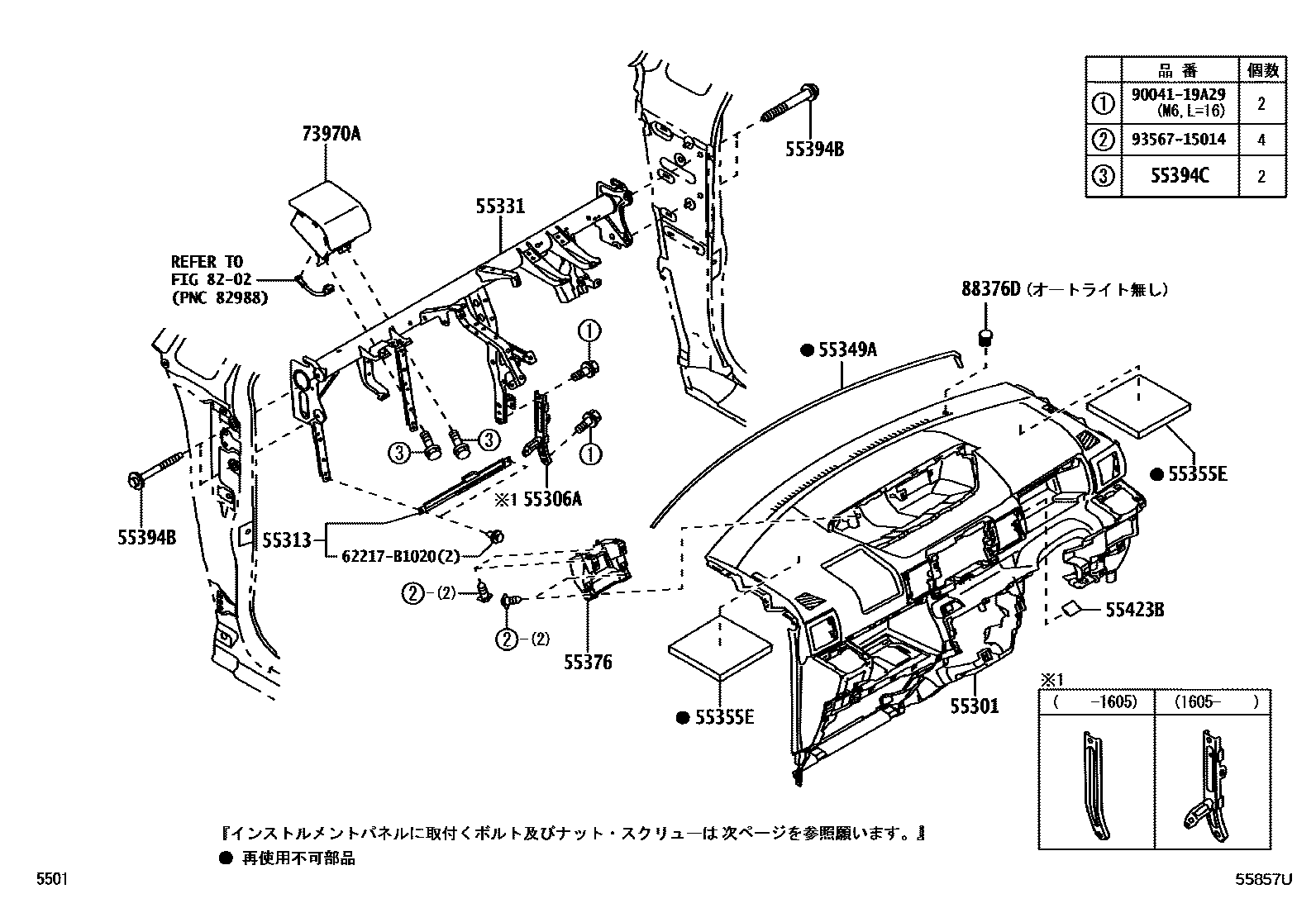

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1������������,��������� 0002 1�������� 0003 1�������� 0004 1�������� 0005 1�������� 0006 1�������� 0007 1��������

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B2490-B0iLA700,710201605

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-B2130iLA700,710201507-201605

main55306-B2170iLA700,710201605

55313PANEL, INSTRUMENT, LOWER LH

main55313-B2030iLA700,710201605

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B2420iLA700,710201507-201605

main55305-B2500iLA700,710201605-201801

main55305-B2550iLA700,710201801-201908

main55305-B2551iLA700,710201909

55349ACUSHION, INSTRUMENT PANEL

main55349-B1020iLA700,710201605

55355ECUSHION, INSTRUMENT PANEL

main55355-B2180×2iLA700,710201605

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-B2220iLA700,710201605

55394BBOLT, INSTRUMENT PANEL

main90041-19A27×4iLA700,710201605-201905

main90041-19A40×4iLA700,710201906

55394CBOLT, INSTRUMENT PANEL

main91551-80616×2iLA700,710201507-201605

main91673-80616×2iLA700,710201805

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-B2050-B0iLA700,710201605

DK.GRAY,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B2300-B0iLA700,710201605

DK.GRAY,TRIM1#

8202WIRING & CLAMP

→ Go to FIG 82-02

88376DCAP, BLIND

main88376-B2010iLA700..D201507-201605

62217B1020COVER, RAIL ROOF SIDE, INNER CENTER

main62217-B1020

9004119A29

main90041-19A29

9356715014

main93567-15014

16 parts on this diagram · 7 diagrams in section
