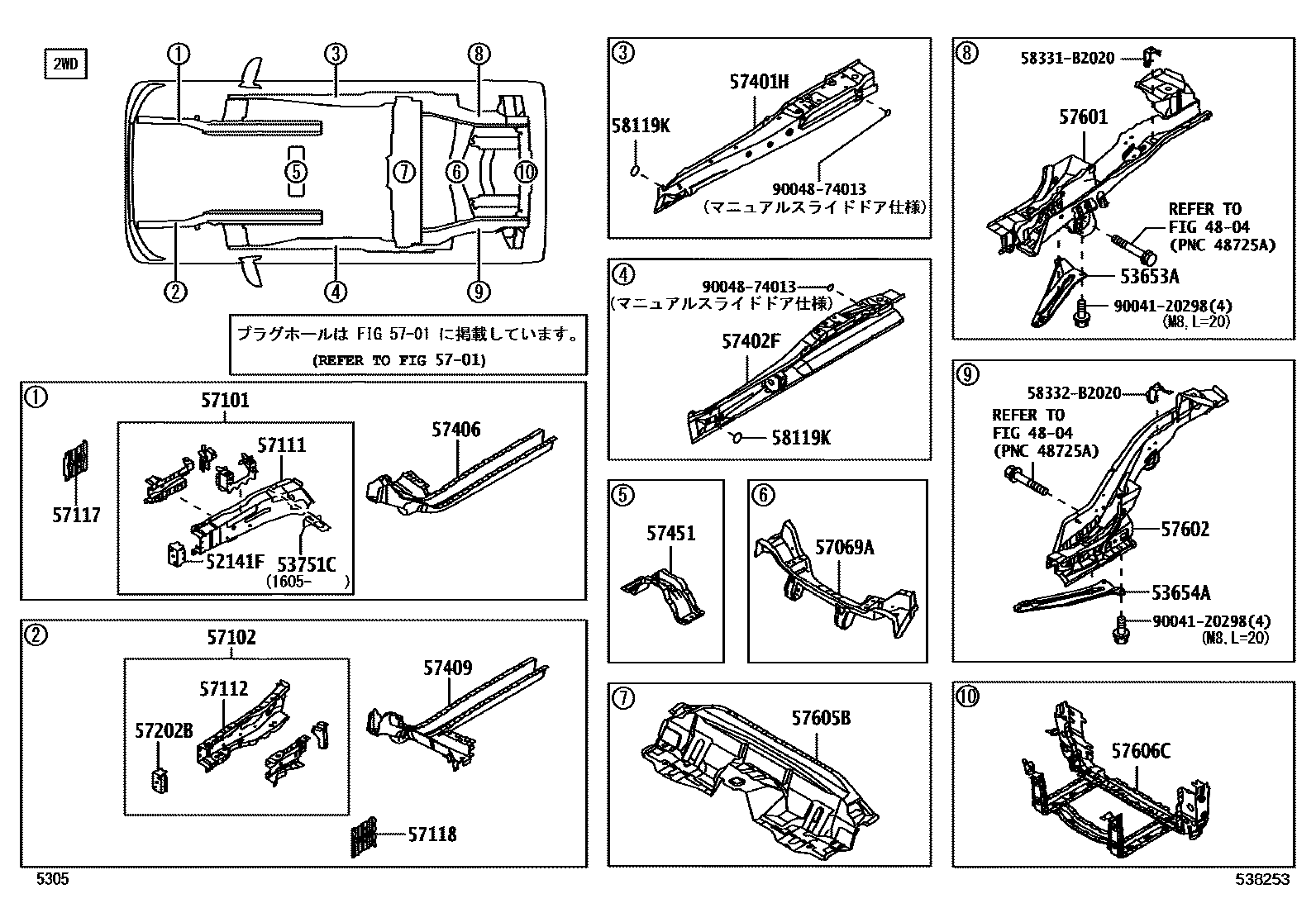

FLOOR SIDE MEMBER

0001 1 0002 1

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

52141FARM, FRONT BUMPER, RH

main52141-B2030iLA700,710201507-201605

53653ABRACE, REAR SUSPENSION, LOWER RH

main53653-B2020iLA700201605

53654ABRACE, REAR SUSPENSION, LOWER LH

main53654-B2020iLA700201605

53751CBRACKET, CHARCOAL CANISTER MOUNTING

main53751-B2040iLA700,710201605

5701HOLE PLUG

→ Go to FIG 57-01

57069AMEMBER, REAR FLOOR, CENTER

main57069-B2350iLA710201605

main57069-B2430iLA700201605

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-B2130iLA700,710201507-201605

main57101-B2230iLA700,710201605

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-B2210iLA700,710201605

57111MEMBER, FRONT SIDE, RH

main57111-B2040iLA700,710201605

57112MEMBER, FRONT SIDE, LH

main57112-B2050iLA700,710201605

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-B2020iLA700,710201605

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57117-B2020iLA700,710201605

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main53078-B2070iLA700,710201605

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-B2180iLA700,710201507-201605

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-B2160iLA700,710201507-201605

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-B2080iLA700,710201605

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-B2090iLA700,710201507-201605

57451MEMBER, FRONT FLOOR CROSS

main57451-B2090iLA700201605

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B2470iLA700201605

main57601-B2480iLA710201605

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B2470iLA700201605

main57602-B2480iLA710201605

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-B2250iLA710201605

main57605-B2270iLA700201605

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-B2020iLA710201605

main57606-B2040iLA700201507-201605

58119KCOVER, FRONT FLOOR SIDE, FRONT

main58119-B2050×2iLA700,710201507-201605

58331B2020PANEL, FRONT FLOOR, CENTER FRONT

main58331-B2020

58332B2020PANEL, REAR FLOOR, REAR

main58332-B2020

9004120298

main90041-20298

9004874013

main90048-74013

28 parts on this diagram · 2 diagrams in section
