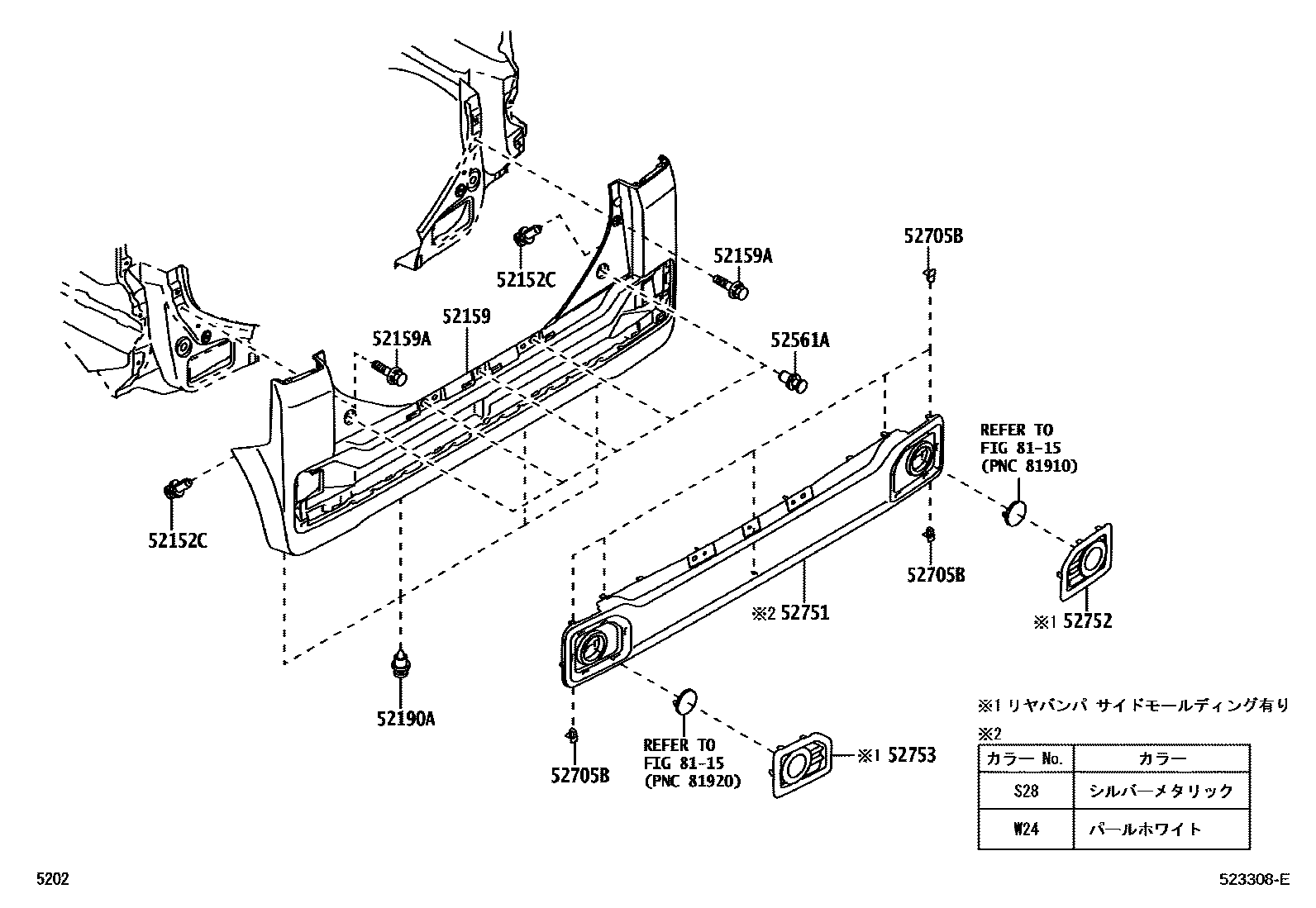

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52152CCLIP, REAR BUMPER SIDE

main90044-67555×2iLA700,710201507-201605

52159COVER, REAR BUMPER

main52159-B2770-A0iLA700,710201507-201605

WHITE PEARL MC.CS,W24

main52159-B2770-B0iLA700..D201605

main52159-B2770-C0iLA700,710201507-201605

BLACK M.M.,X07

main52159-B2770-D0iLA700,710201507-201605

BROWN MC.CS,R59

main52159-B2770-D1iLA700..D201605-201801

main52159-B2770-F0iLA700,710201507-201605

YELLOW,X86 ,Y09

main52159-B2770-G0iLA700,710201507-201605

KHAKI ME.,G55 ,X87

main52159-B2770-G1iLA700..D201605-202002

main52159-B2770-J0iLA700,710201507-201605

BLUE M.M.,B58

main52159-B2770-J1iLA700..D201605-202002

main52159-B2B00-A0iLA700,710..G,L201605-202009

main52159-B2B00-A3supersedes 52159-B2770-A3iLA700,710..G,L; LA700..D202008

main52159-B2B00-B0iLA700,710..G,L201605

main52159-B2B00-C0iLA700,710..G,L201605

main52159-B2B00-D0iLA700,710..G,L201605

main52159-B2B00-D1supersedes 52159-B2770-D1iLA700,710..G,L; LA700..D201605-201801

main52159-B2B00-G0supersedes 52159-B2770-G0iLA700,710..G,L; LA700..D201801

main52159-B2B00-G1iLA700,710..G,L201605-202002

main52159-B2B00-J0iLA700,710..G,L201605-202002

main52159-B2B00-J1iLA700,710..G,L201605-202002

main52159-B2B00-J3supersedes 52159-B2770-J3iLA700,710..G,L; LA700..D202002

main52159-B2B00-J4supersedes 52159-B2770-J4iLA700,710..G,L; LA700..D202006

52159ABOLT(FOR REAR BUMPER COVER)

main90041-19693×2iLA700,710201605

52190ACLIP

main90044-68320×4iLA700,710201605-201906

main90044-68378×4iLA700,710201907

52561ACLIP(FOR REAR BUMPER RETAINER)

main90044-68381×5iLA700,710201507-201605

52705BRETAINER, REAR BUMPER MOULDING

main76854-87401×7iLA700,710201605

52751MOULDING, REAR BUMPER

main52751-B2050-A0iLA700,710..NTBO201507-201605

WHITE PEARL MC.CS,X85 ,X86 ,X87

main52751-B2050-B1iLA700,710..NTBO201507-201605

SILVER ME.,B58 ,G55 ,R59 ,R71 ,S38 ,W24 ,X07 ,Y09

main52751-B2060-A0iLA700,710201605-201801

WHITE PEARL MC.CS,W24 ,X81 ,X85 ,X87 ,XA3 ,XE1

main52751-B2060-A1iLA700,710202008

WHITE PEARL SE.,W25 ,XK6 ,XK7 ,XK8 ,XK9

main52751-B2060-B0iLA700,710201605

GRAY ME.,S38

main52751-B2060-B1iLA700,710..L; LA700,710..TBO201507-201605

main52751-B2060-C0iLA700,710201605

BLACK M.M.,X07

main52751-B2060-D0iLA700,710201605

BROWN MC.CS,R59

main52751-B2060-D1iLA700,710201605

ORANGE ME.,R71

main52751-B2060-G0iLA700,710201605

KHAKI ME.,G55

main52751-B2060-G1iLA700,710201605-202002

GREEN,G57

main52751-B2060-J0iLA700,710201605-202002

BLUE M.M.,B58

main52751-B2060-J1iLA700,710201605-202002

PALE BLUE M.M.,B69

main52751-B2060-J2iLA700,710202002

LASER BLUE CRYSTAL SHINE,B82

main52751-B2060-J3iLA700,710202006

LAKE BLUE ME.,B87

52752MOULDING, REAR BUMPER SIDE, RH

main52752-B2070iLA700,710201605

52753MOULDING, REAR BUMPER SIDE, LH

main52753-B2070iLA700,710201605

8115REFLEX REFLECTOR

→ Go to FIG 81-15

10 parts on this diagram · 3 diagrams in section
