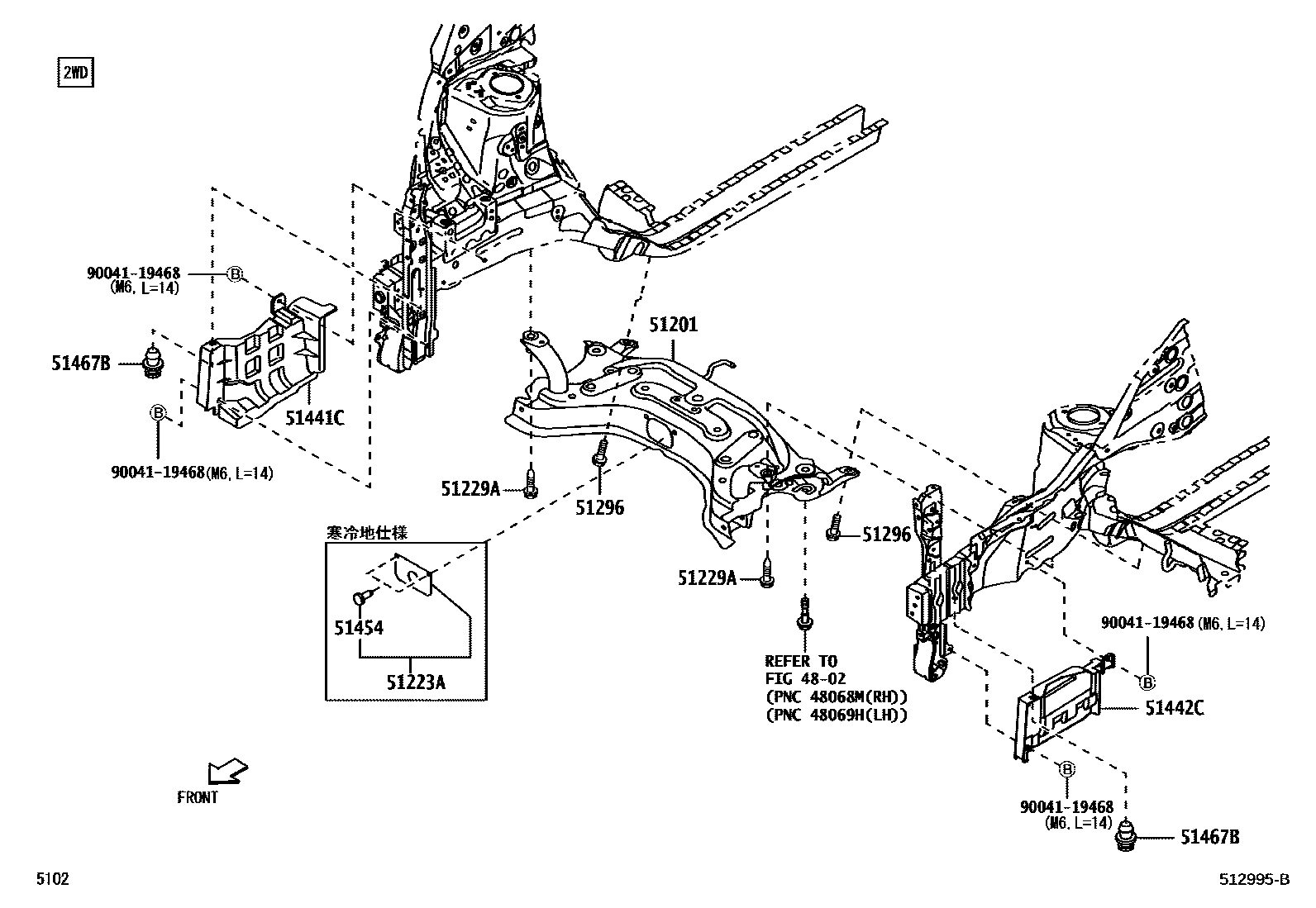

SUSPENSION CROSSMEMBER & UNDER COVER

0001 12WD 0002 14WD

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B2051iLA710201507-201605

main51201-B2170iLA700201507-201605

main51201-B2210iLA710201605

51223ACOVER, ENGINE MOUNTING HOLE

main51223-B2070iLA700201605

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-05594×2iLA710201909

main90041-20053×2iLA710201507-201605

main90041-20263×2iLA700201605-201808

main90041-20338×2iLA710201809-201908

main90041-20339×2iLA700201809

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90041-19948×2iLA700,710201605

51441CCOVER, ENGINE UNDER, RH

main51441-B2030iLA700,710201507-201605

51442CCOVER, ENGINE UNDER, LH

main51442-B2030iLA700,710201605

51454CLIP

main90044-67517×2iLA700201605

51467BRETAINER, ENGINE UNDER COVER

main51467-B2020×2iLA700,710201605

9004119468

main90041-19468

10 parts on this diagram · 2 diagrams in section
