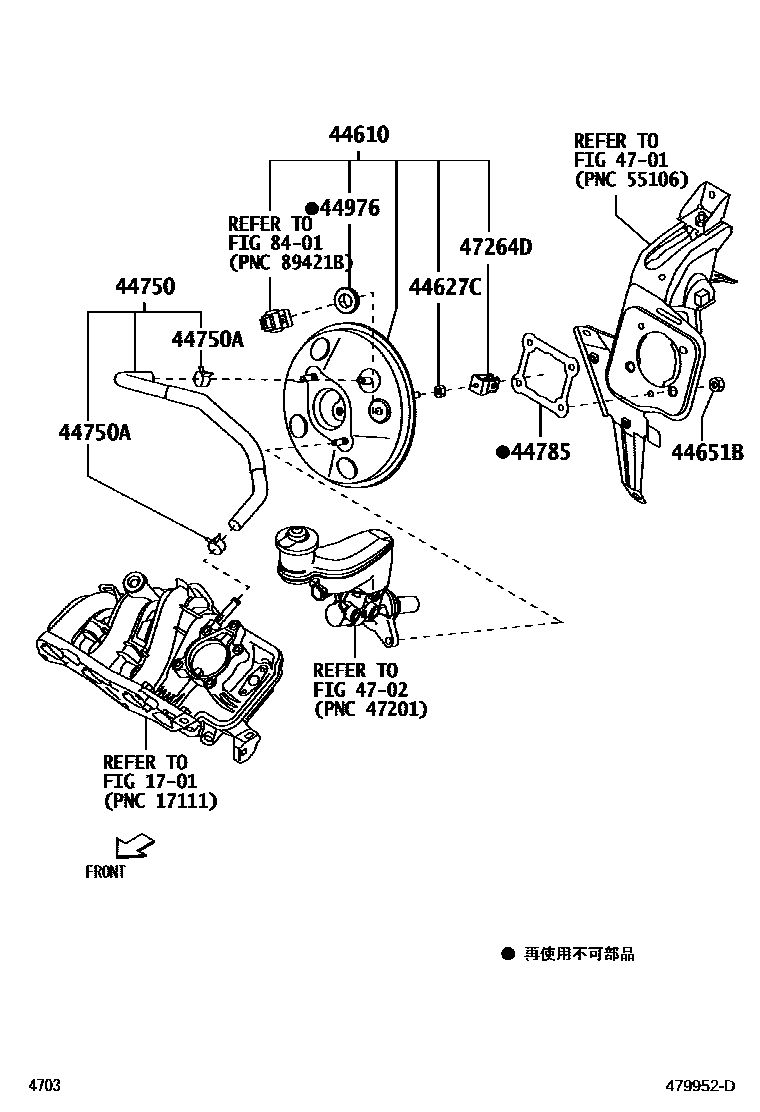

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-B2260iLA700,710201712-202005

main44610-B2262iLA700,710202006

main44610-B2470iLA700,710201605-201711

main44610-B2530iLA700,710201507-201605

44627CNUT, BOOSTER SLEEVE CYLINDER

main94120-40800iLA700,710201605

44651BNUT, BOOSTER

main90041-79300×4iLA700,710201605

44750HOSE ASSY, VACUUM

main44750-B2210iLA700,710201507-201605

main44750-B2230iLA700,710201605

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161×2iLA700,710201605

44785GASKET, BRAKE BOOSTER

main47278-87703iLA700,710201605

44976SEAL, BOOSTER

main44685-B2010iLA700,710201605

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B2020iLA700,710201605

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

12 parts on this diagram · 1 diagram in section
