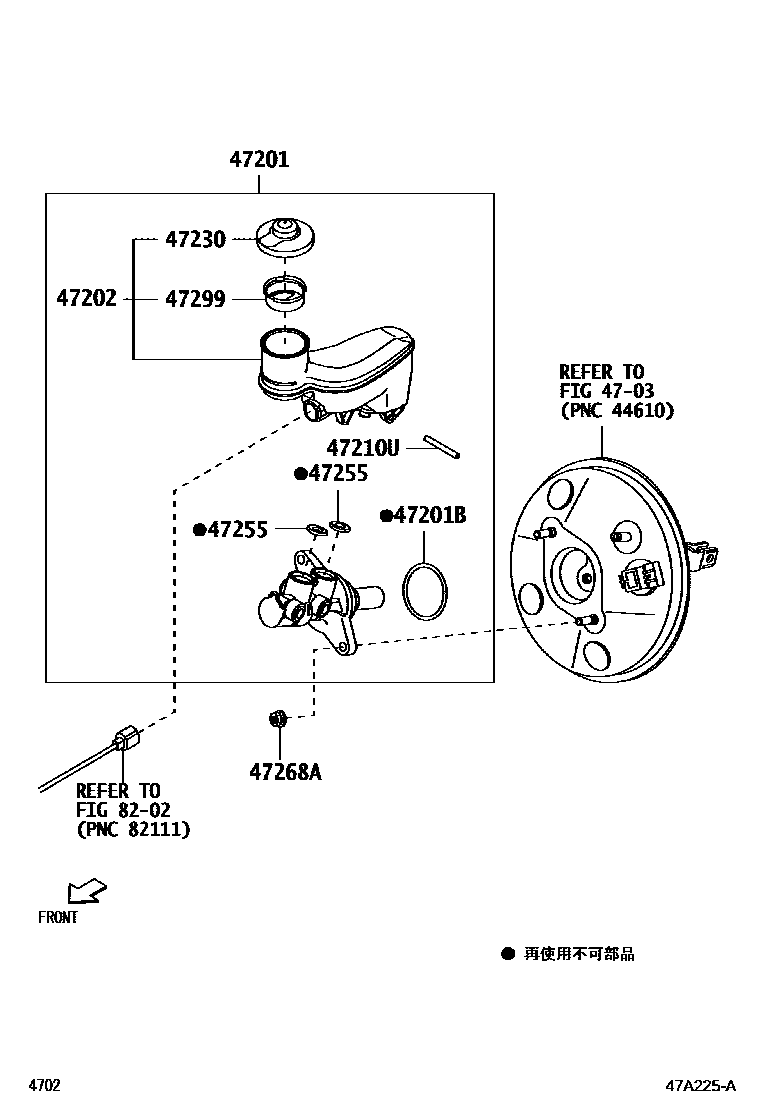

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B2190iLA700,710201507-201605

sub47201-B2191

main47201-B2260iLA700,710201605-201708

main47201-B2261iLA700,710201709

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01352iLA700,710201605

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-B2110iLA700,710201507-201605

main47220-B2240iLA700,710201605

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iLA700,710201507-201605

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B4010iLA700,710201605

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050×2iLA700,710201605

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124×2iLA700,710201605

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B2030iLA700,710201605

8202

10 parts on this diagram · 1 diagram in section
