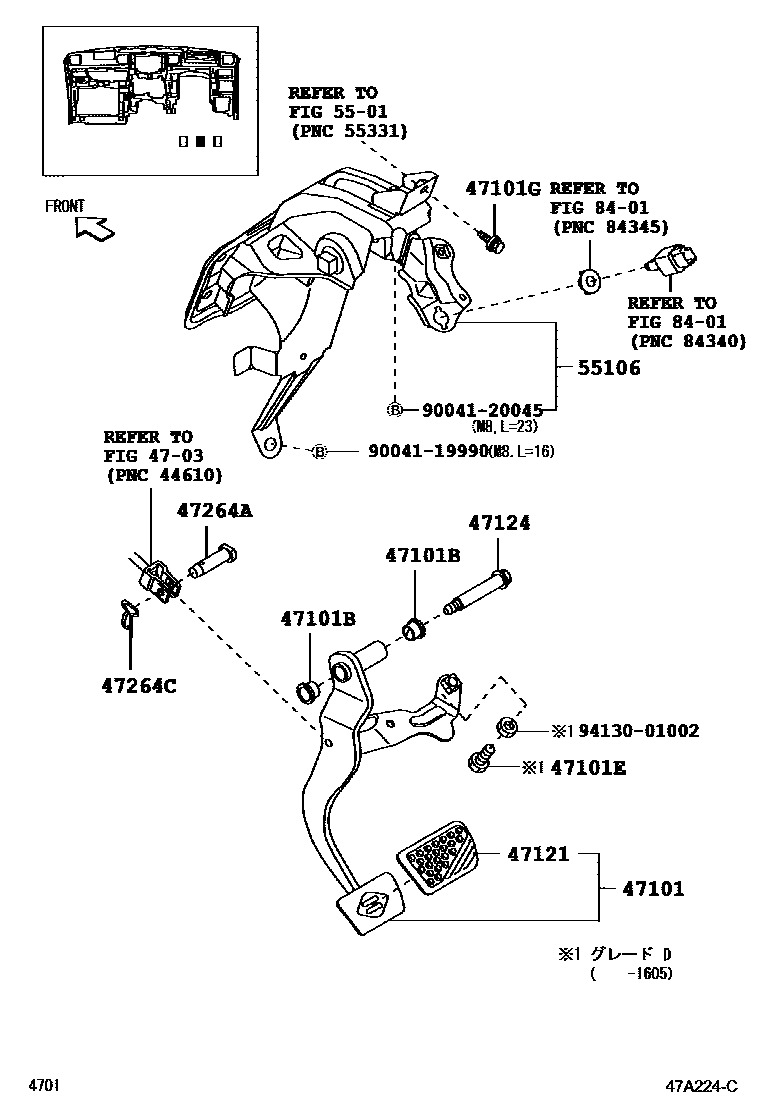

BRAKE PEDAL & BRACKET

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47110-B2400iLA700,710201605

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iLA700,710201605

47101ESTOPPER, SHIFT LOCK

main31322-87403iLA700..D201507-201605

47101GBOLT, BRAKE PEDAL STOP, NO.1

main45898-B2010iLA700,710201605

47121PAD, BRAKE PEDAL

main47121-B2010iLA700,710201605

47124SHAFT, BRAKE PEDAL

main31324-B2010iLA700,710201605

47264APIN(FOR PUSH ROD)

main90042-40151iLA700,710201605

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iLA700,710201605

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B2420iLA700,710201605

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004119990

main90041-19990

9004120045

main90041-20045

9413001002

main94130-01002

15 parts on this diagram · 1 diagram in section
