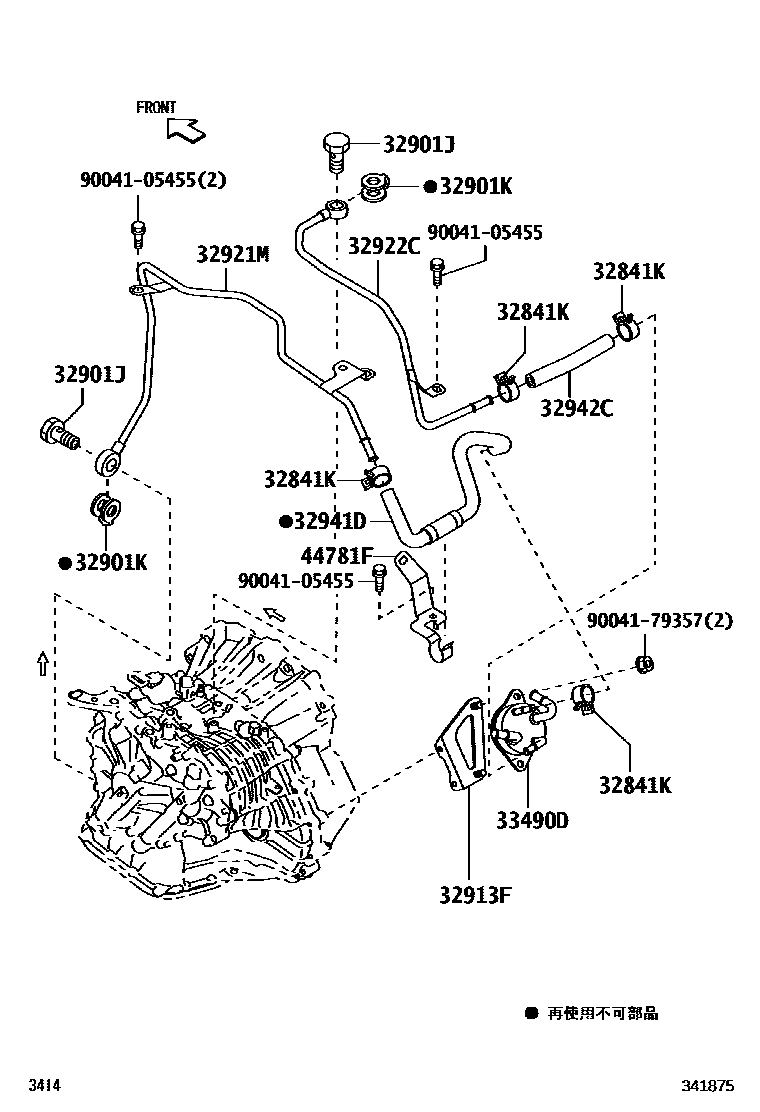

OIL COOLER & TUBE(CVT)

32841KCLIP, NO.1(FOR OIL COOLER HOSE)

main90044-67590×4iLA700,710201605

32901JBOLT, UNION(FOR OIL COOLER)

main90044-01081×2iLA700,710201605

32901KGASKET(FOR OIL COOLER UNION)

main90044-30329×2iLA700,710201605

32913FBRACKET, TRANSMISSION OIL COOLER

main32913-B2050iLA700,710201605

32921MTUBE, OIL COOLER INLET, NO.1

main32904-B2070iLA700,710201605

32922CTUBE, OIL COOLER OUTLET, NO.1

main32905-B2080iLA700,710201605

32941DHOSE, OIL COOLER INLET

main32941-B2120iLA700,710201605

32942CHOSE, OIL COOLER OUTLET, NO.1

main32942-B2130iLA700,710201605

33490DCOOLER ASSY, TRANSMISSION OIL

main33490-B2010iLA700,710201605

44781FBRACKET, HOSE CLAMP

main44781-B2020iLA700,710201605

9004105455

main90041-05455

9004179357

main90041-79357

12 parts on this diagram · 1 diagram in section
