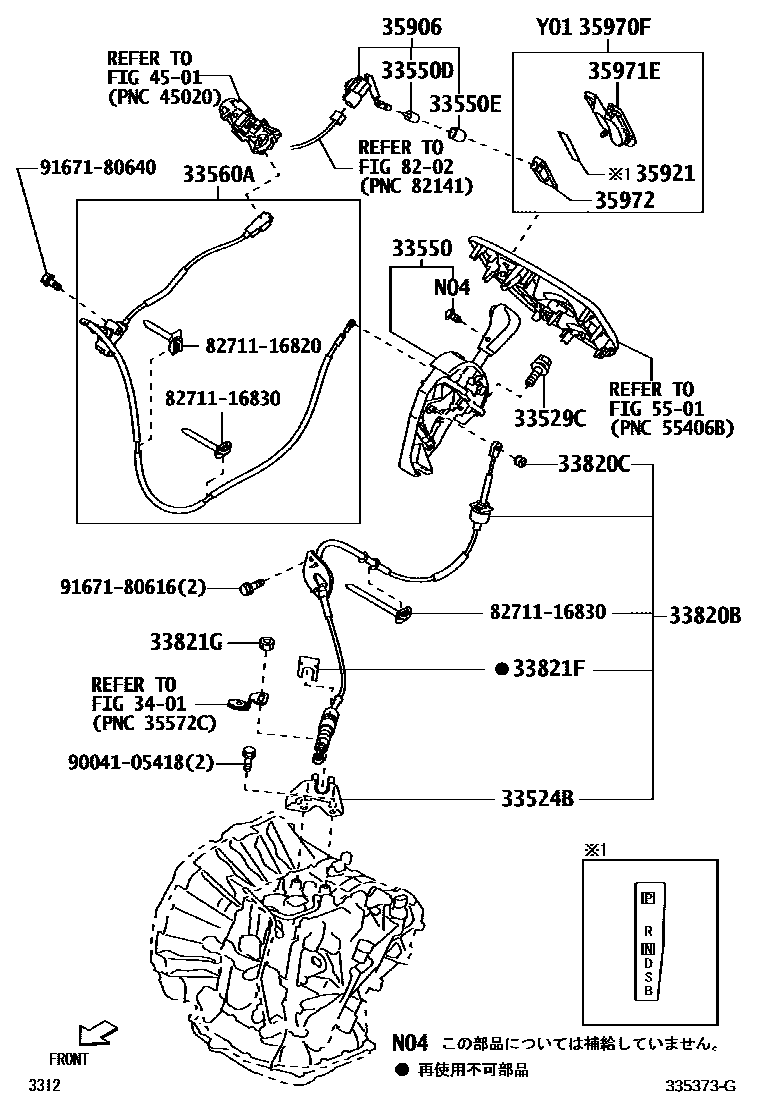

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33524BBRACKET, CONTROL CABLE

main33524-B2012iLA700,710201507-201605

main33524-B2050iLA700,710201605

33529CBOLT, SHIFT LEVER

main91671-80830iLA700,710201507-201605

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-B2631-B0iLA700..D201507-201605

DK.GRAY,TRIM1#

main33550-B2641-B0iLA700,710..L,X201507-201602

DK.GRAY,TRIM1#

sub33550-B2642

main33550-B2642-B0iLA700,710..L,X201603-201605

DK.GRAY,TRIM1#

sub33550-B2643

main33550-B2691-C1iLA700,710..G201507-201602

SILVER,TRIM1#

sub33550-B2692

main33550-B2692-C1iLA700,710..G201603-201605

SILVER,TRIM1#

main33550-B2720-C0iLA700,710201605-201611

BLACK,TRIM1#

sub33550-B2730

main33550-B2720-C1iLA700,710201611-201703

BLACK,TRIM1#

sub33550-B2730

main33550-B2730-C1iLA700,710201704-201804

BLACK,TRIM1#

main33550-B2731-C1iLA700,710201804-201904

BLACK,TRIM1#

sub33550-B2732

main33550-B2732-C1iLA700,710201905

BLACK,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main35955-B2040iLA700,710201507-201605

33550ECAP, POSITION INDICATOR LAMP

main35956-B2060iLA700,710201507-201605

33560ACABLE ASSY, SHIFT LOCK RELEASE

main33560-B2291iLA700..D201507-201605

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-B2400iLA700,710201507-201605

main33820-B2470iLA700,710201605-201709

sub33820-B2471

main33820-B2471iLA700,710201710-201804

main33820-B2472iLA700,710201804

33820CBUSH (FOR TRANSMISSION CONTROL CABLE)

main33835-B1010iLA700,710201507-201804

33821FCLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE)

main90044-68379iLA700,710201507-201605

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-06274iLA700,710201507-201605

3401

35906WIRE SUB-ASSY, INDICATOR LAMP

main82285-B2030iLA700,710201507-201605

35921PLATE, CONTROL POSITION INDICATOR

main35921-B2020iLA700,710201507-201605

35970FHOUSING ASSY, POSITION INDICATOR

main58205-B2050-B4iLA700,710..G,L,X201507-201605

SILVER,TRIM1#

main58205-B2070-B0iLA700..D201507-201605

DK.GRAY,TRIM1#

35971EHOUSING, POSITION INDICATOR

main58216-B2070-B0iLA700..D201507-201605

DK.GRAY,TRIM1#

main58216-B2080-B4iLA700,710..G,L,X201507-201605

SILVER,TRIM1#

35972COVER, POSITION INDICATOR HOUSING

main55534-B2010iLA700,710201507-201605

main55534-B2030iLA700,710201605

4501

5501

8202

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9004105418

main90041-05418

9167180616

main91671-80616

9167180640

main91671-80640

24 parts on this diagram · 5 diagrams in section
