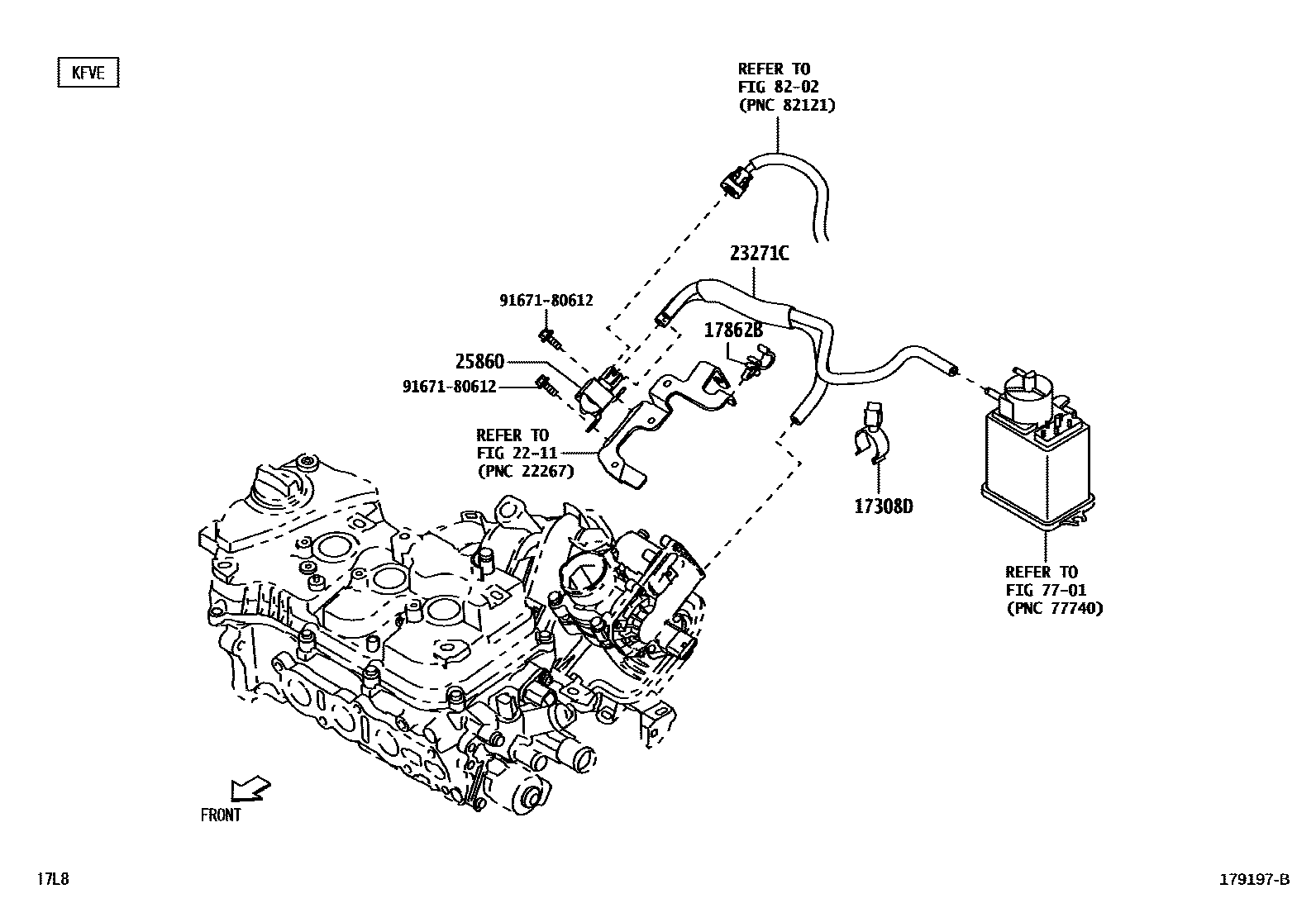

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

17308DCLAMP, NO.2(FOR VACUUM HOSE)

main90044-64831iKFV#..LA700,710201507-201605

17862BCLAMP, HOSE

main90044-64779iKFV#..LA700,710201507-201605

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23271CHOSE, FUEL

main77754-B2140iKFV#..LA700,710201605-202209

main77795-B2100iKFV#..LA700,710201507-201605

main77795-B2110iKFV#..LA700,710201605-202209

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main89470-B1020iKFV#..LA700,710201605-202209

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180612

main91671-80612

8 parts on this diagram · 4 diagrams in section
