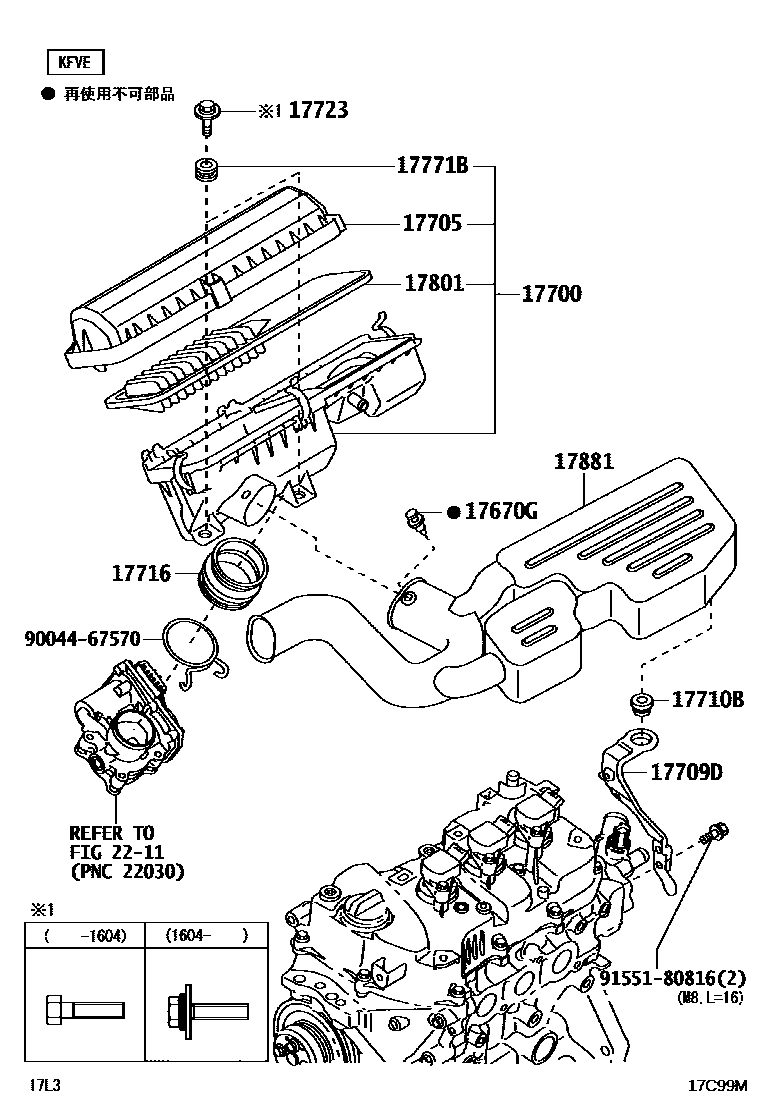

AIR CLEANER

0001 1 0002 1 0003 1

17670GCLIP(FOR AIR HOSE NO.1)

main90044-67568iKFV#..LA700,710201605

17700CLEANER ASSY, AIR

main17700-B2110iKFVET..LA700,710201507-201604

main17700-B2111iKFVET..LA700,710201605

main17700-B2170iKFVE..LA700,710201605

17705CAP SUB-ASSY, AIR CLEANER

main17705-B2070iKFVET..LA700,710201605

main17705-B2130iKFVE..LA700,710201605

17709DBRACKET, AIR CLEANER INLET, NO.1

main53763-B2030iKFVE..LA700,710201605

17710BGROMMET

main90044-80598iKFVE..LA700,710201605

main90044-80654iKFVET..LA700,710201605

17716SUPPORT,AIR CLEANER CAP

main17716-B2020iKFVE..LA700,710201605

17723BOLT, AIR CLEANER CAP

main90041-19A42×2iKFV#..LA700,710201910

main90041-20277×2iKFV#..LA700,710201511-201604

main90041-20322×2iKFV#..LA700,710201605-201909

main91631-60625×2iKFV#..LA700,710201507-201510

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90044-80653×2iKFVE..LA700,710201507-201601

main90044-80656iKFVET..LA700,710201507-201605

main90044-80673×2iKFVE..LA700,710201601-201605

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-B2070iKFVET..LA700,710201605

main17801-B2090iKFVE..LA700,710201507-201605

17881HOSE, AIR CLEANER, NO.1

main17881-B2120iKFVET..LA700,710201605

main17881-B2140iKFVE..LA700,710201507-201605

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9004467570

main90044-67570

9155180816

main91551-80816

13 parts on this diagram · 3 diagrams in section
