MANIFOLD

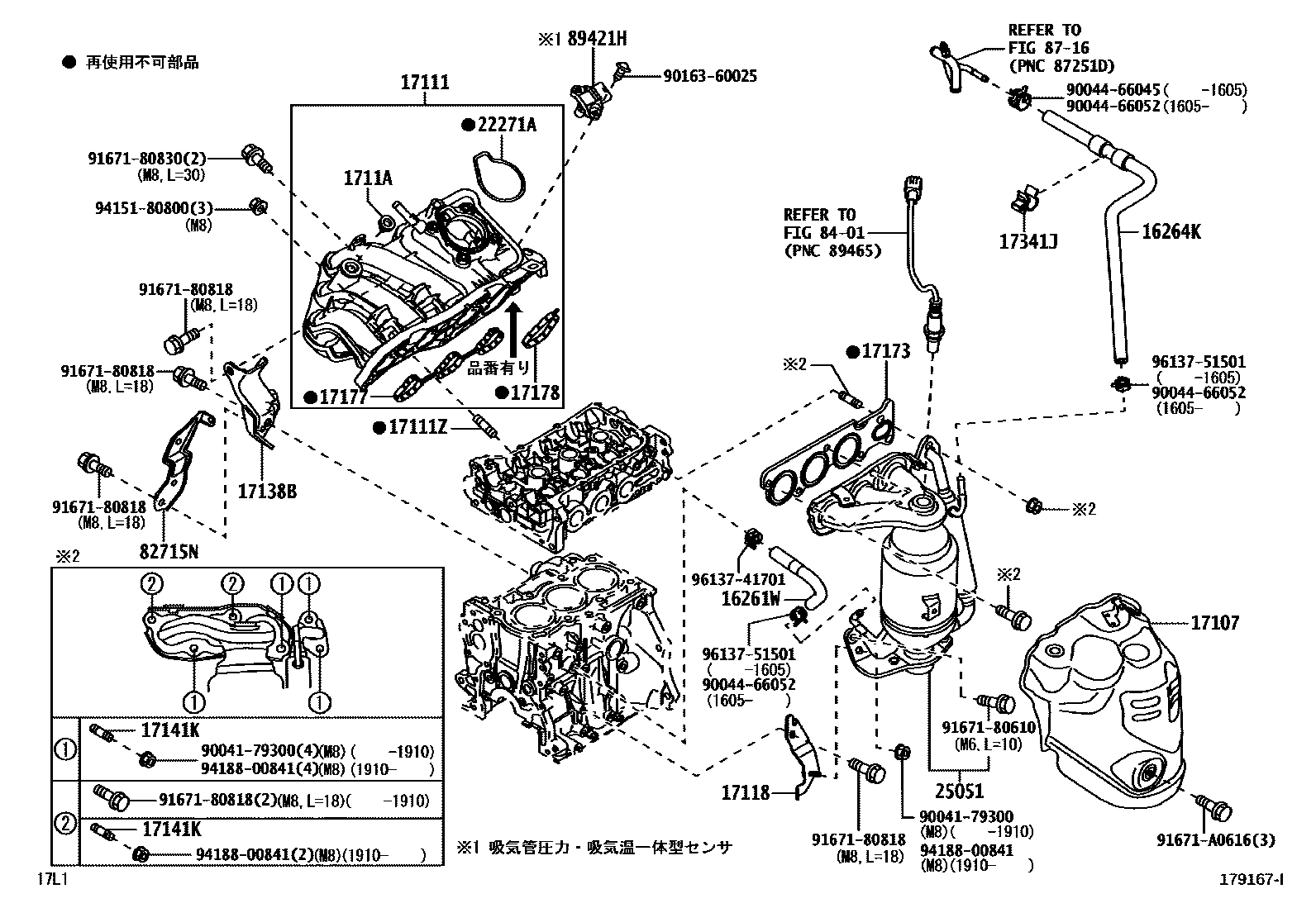

Parts diagram

16261WHOSE, WATER BY-PASS, NO.1

main16261-B2170i201507-201605

main16261-B2210i201605

16264KHOSE, WATER BY-PASS, NO.2

main16264-B2080i201605

17107INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT

main17107-B2030i201507-201605

main17107-B2080i201507-201605

main17107-B2081i201706-201908

main17107-B2082i201909

17111MANIFOLD, INTAKE

main17120-B2081i201605-202209

main17120-B2091i201507-201605

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90041-26003×2i201605-202006

main90041-26012×2i202007

17118STAY, MANIFOLD

main17118-B2020i201507-201605

main17118-B2080i201605-201709

main17118-B2081i201710

1711AGROMMET

main90044-80676i201507-201605

17138BSTAY, INTAKE MANIFOLD

main17138-B2050i201605

17141MANIFOLD, EXHAUST

main17104-B2011i201507-201605

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90041-16487×2i201605

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-B2021i201605

main17173-B2060i201605

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-B2040i201605

17178GASKET, INTAKE MANIFOLD TO HEAD, NO.2

main17178-B2010i201605

17341JCLAMP, HOSE

main90044-64886×2i201605

22271AGASKET, THROTTLE BODY

main22271-B2030i201605

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-B2410i201605

main25051-B2430i201507-201605

main25051-B2460i201605

82715NBRACKET, WIRING HARNESS CLAMP

main82715-B2660i201605

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

89421HSENSOR, VACUUM

main89421-B2020i201507-201605

main89421-B2040i201605

9004179300

main90041-79300

9004466045

main90044-66045

9004466052

main90044-66052

9016360025

main90163-60025

9167180610

main91671-80610

9167180818

main91671-80818

9167180830

main91671-80830

91671A0616

main91671-A0616

9415180800

main94151-80800

9418800841

main94188-00841

9613741701

main96137-41701

9613751501

main96137-51501

32 parts on this diagram · 7 diagrams in section
