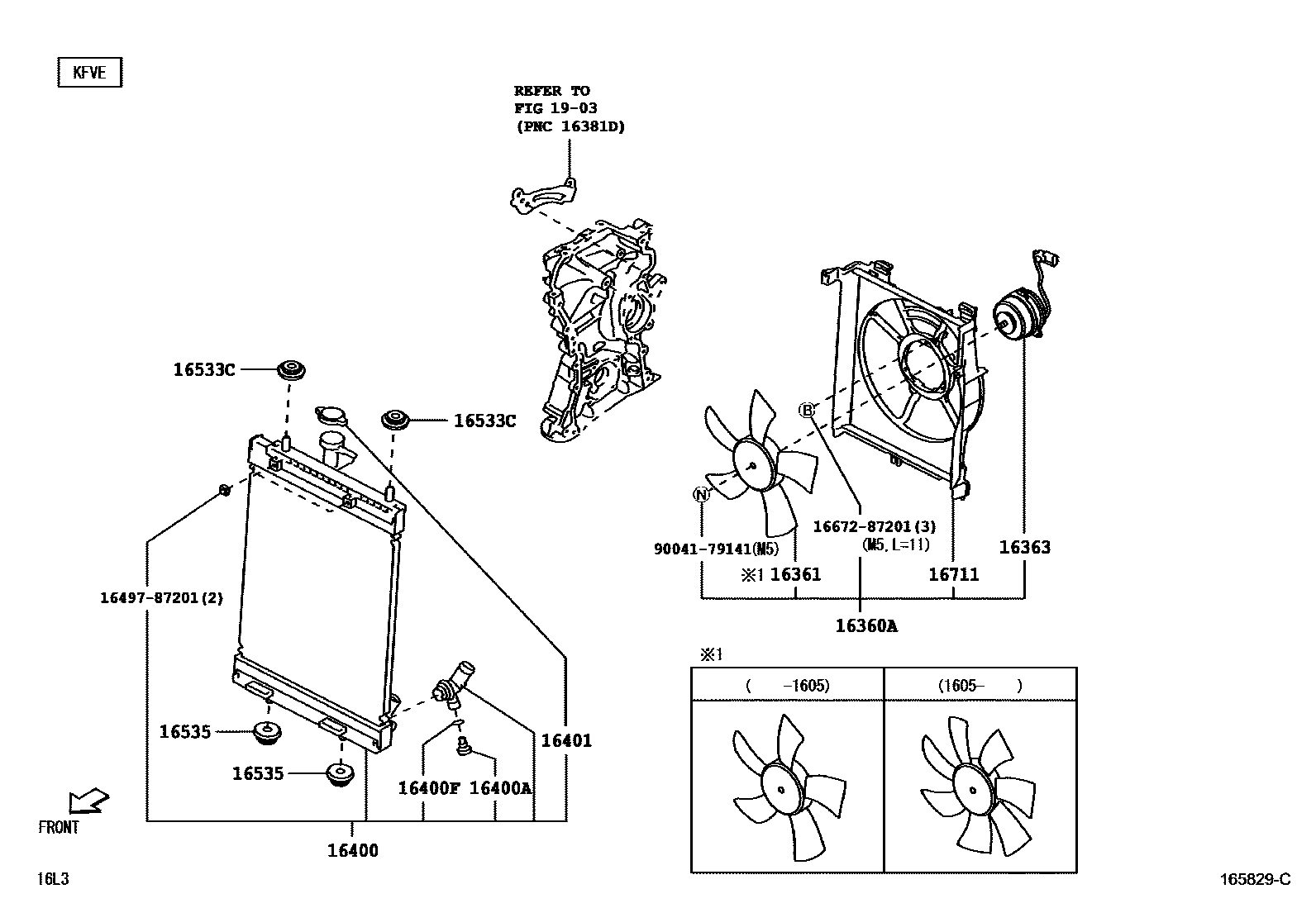

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1

16360AFAN ASSY, W/MOTOR

main16360-B2071iKFVET..LA710201507-201605

main16360-B2120iKFV#..LA700;KFVE..LA710201605

main16360-B2141iKFV#..LA700;KFVE..LA710201507-201605

main16360-B2200iKFVET..LA710201605

16361FAN

main16361-B2030iKFVET..LA710201507-201605

main16361-B2060iKFV#..LA700;KFVE..LA710201507-201605

main16361-B2070iKFV#..LA700;KFVE..LA710201605

main16361-B2080iKFVET..LA710201605

16363MOTOR, COOLING FAN

main16363-B2020iKFVET..LA710201507-201605

main16363-B2030iKFV#..LA700;KFVE..LA710201507-201605

main16363-B2040iKFV#..LA700;KFVE..LA710201605

main16363-B2060iKFVET..LA710201605

16400RADIATOR ASSY

main16400-B2330iKFVE..LA700,710201507-201605

main16400-B2360iKFVET..LA700,710201507-201605

main16400-B2400iKFVE..LA700,710201605

main16400-B2410iKFVET..LA700,710201605-201804

main16400-B2411iKFVET..LA700,710201805

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-B2020iKFV#..LA700,710201507-201605

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-B2010iKFV#..LA700,710201605

16401CAP SUB-ASSY, RADIATOR

main16401-B2010iKFV#..LA700,710201605

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80621×2iKFV#..LA700,710201605

16535SUPPORT, RADIATOR, LOWER

main90044-80592×2iKFV#..LA700,710201605

16711SHROUD, FAN

main16711-B2080iKFV#..LA700,710201507-201605

main16711-B2110iKFV#..LA700,710201605

1903ALTERNATOR

→ Go to FIG 19-03

1649787201INLET SUB-ASSY

main16497-87201

1667287201

main16672-87201

9004179141

main90041-79141

14 parts on this diagram · 4 diagrams in section
