C+WALK

0001 1 0002 1 0003 1������� 0004 1��� & ��������������� 0005 1�������� 0006 1��� & ��������� 0007 1�������(DOP)

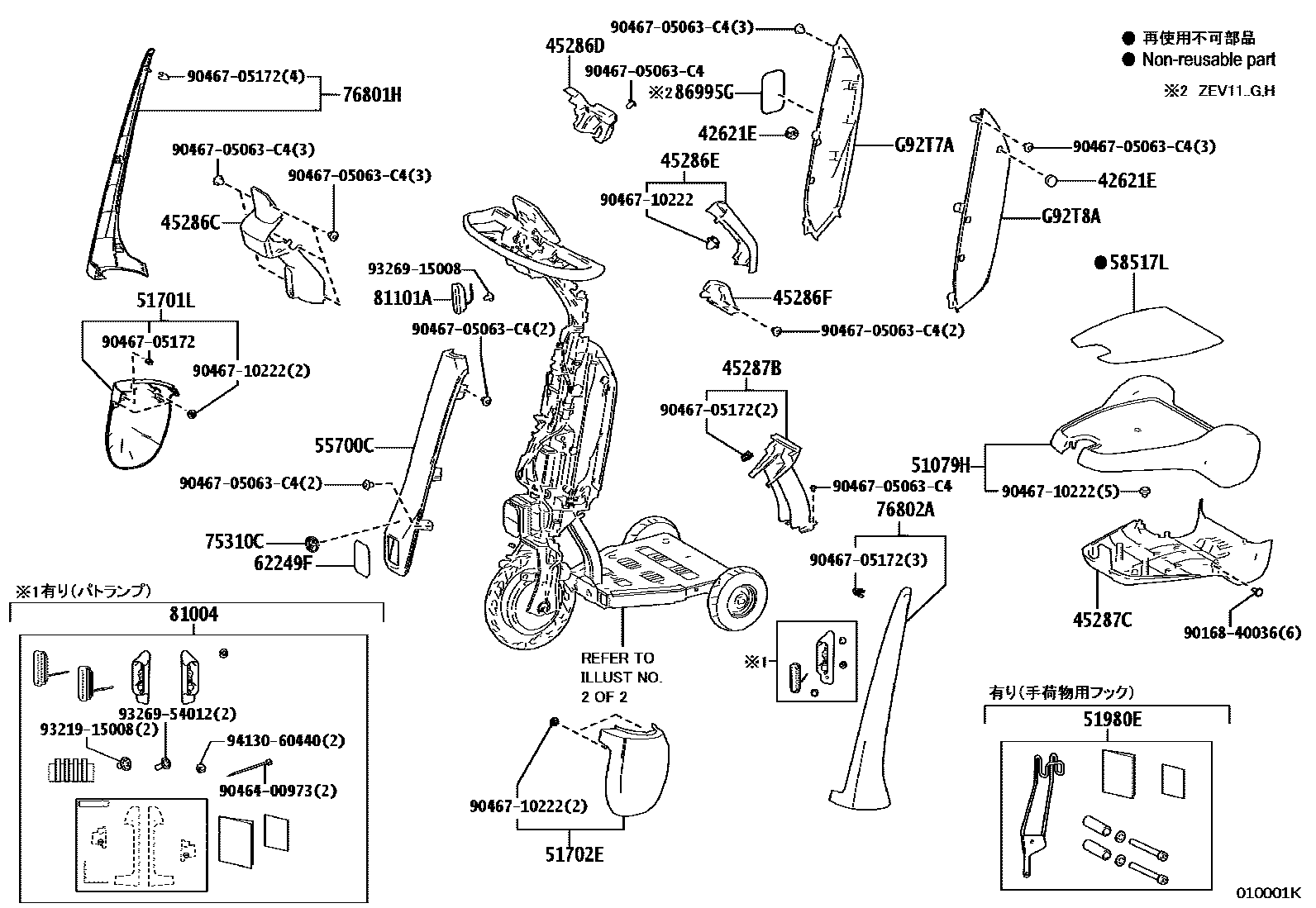

42621ECAP, WHEEL

main42621-66020×5iZEV11..A,B202106-202305

45286CCOVER, STEERING COLUMN, FRONT

main45286-66070iZEV11..A,B202106-202305

main45286-66090iZEV11..C,D202301

main45286-66120iZEV11..E,F202406

main45286-66150iZEV11..G,H202305

45286DCOVER, STEERING COLUMN, REAR UPPER

main45286-66100iZEV11..G,H202106

45286ECOVER, STEERING COLUMN, REAR LOWER

main45286-66110iZEV11..A,B202106-202305

main45286-66160iZEV11..G,H202305

45286FCOVER, STEERING COLUMN

main45286-66080iZEV11..A,B202106-202305

45287BCOVER, MIDDLE FRAME

main45287-66160iZEV11..A,B202106-202305

45287CCOVER, STEP, LOWER

main45287-66170iZEV11..A,B202106-202305

51079HCOVER, STEP, UPPER

main51079-66020iZEV11..A,B202106-202305

51701LCOVER SUB-ASSY, FORK, RH

main51701-66060iZEV11..A,B202106-202305

main51701-66120iZEV11..E,F202406

main51701-66080iZEV11..C,D202301

main51701-66100iZEV11..C,D202301

51702ECOVER SUB-ASSY, FORK, LH

main51701-66130iZEV11..E,F202406

main51702-66010iZEV11..C,D,G,H202106

main51702-66020iZEV11..C,D202301

main51702-66030iZEV11..C,D202301

51980EHOOK ASSY, FRONT LH

main51980-66010iZEV11..A,B202106-202304

main51980-66011iZEV11..A,B,G,H202305

main51980-66020iZEV11..C,D202301

55700CCOWL ASSY

main55700-66020iZEV11..A,B202106-202305

58517LSEAT, FOOT

main58517-66020iZEV11..G,H202106

main58051-66010iZEV11..A,B,G,H202106

62249FPLATE, WINDOW

main62249-66020iZEV11..B202106-202305

main62249-66030iZEV11..C,E,G202106

75310CEMBLEM ASSY

main75310-66020iZEV11..A,B202106-202305

76801HGARNISH SUB-ASSY, FRAME, RH

main76801-66030iZEV11..C,D,G,H202106

main76801-66050iZEV11..C,D202301

main76801-66060iZEV11..C,D202301

76802AGARNISH SUB-ASSY, FRAME, LH

main76802-66030iZEV11..C,D,G,H202106

main76802-66010iZEV11..C,D202301

main76802-66020iZEV11..C,D202301

81004LAMP SET, FRONT

main81004-66010iZEV11..A,B,G,H202106

81101AHOUSING SUB-ASSY, HEADLAMP

main81101-66020iZEV11..A,B202106-202305

86995GLABEL, CAUTION, NO.2

main86995-66010iZEV11..G,H202305

G92T7ACOVER, EV BATTERY, RH

mainG92T766020iZEV11..A,B202106-202305

G92T8ACOVER, EV BATTERY, LH

mainG92T866020iZEV11..A,B202106-202305

9016840036

main90168-40036

9046400973

main90464-00973

9046705063C4

main90467-05063C4

9046705172

main90467-05172

9046710222

main90467-10222

9321915008

main93219-15008

9326915008

main93269-15008

9326954012

main93269-54012

9413060440

main94130-60440

31 parts on this diagram · 7 diagrams in section
